Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| Blower Resistors | Under right side of dash, attached to blower motor case. |
| Dropping Resistor (Diesel) | In air intake at engine manifold. |
| Fuel Filter/Conditioner (Diesel) | Attached to right shock tower. |

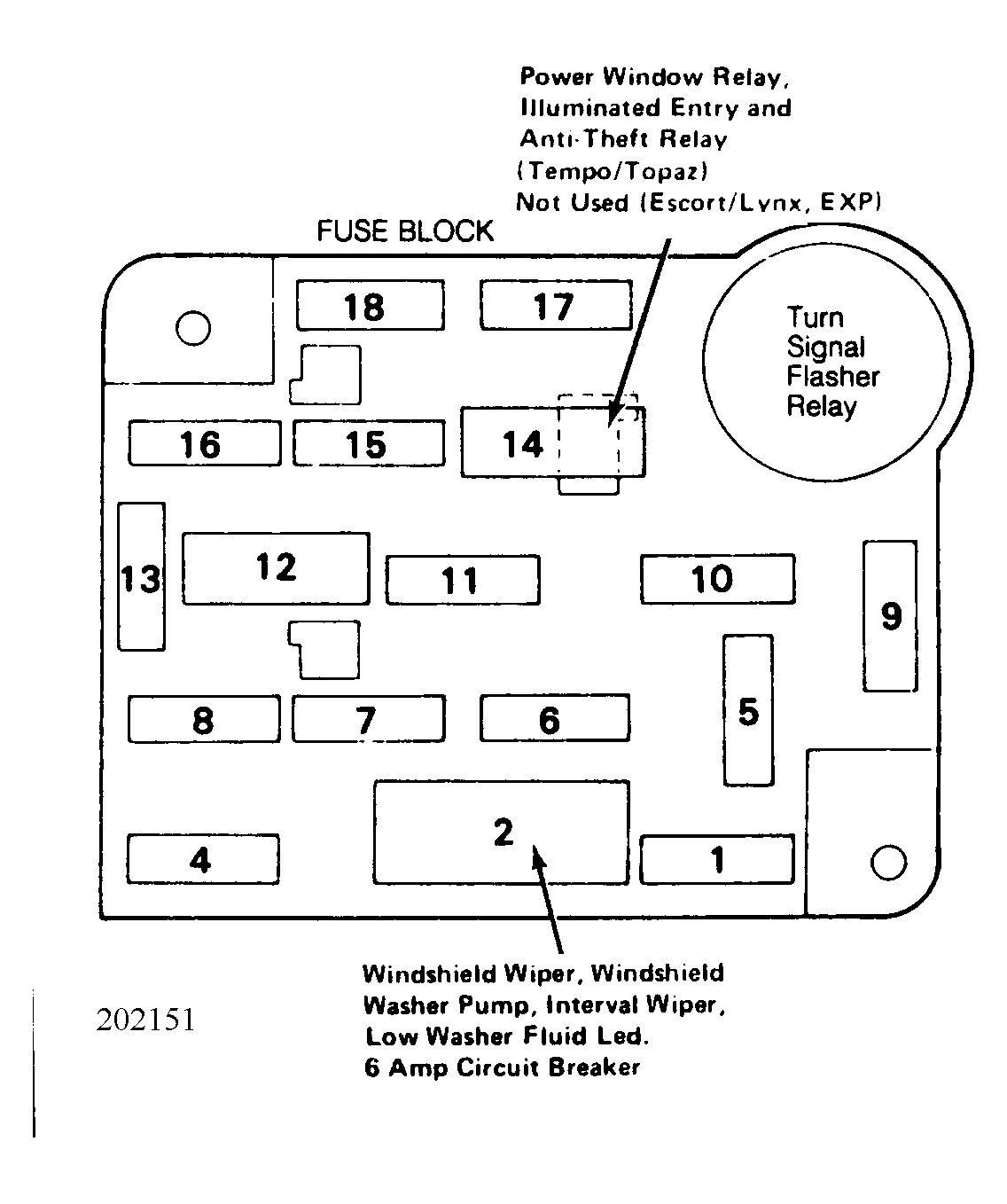

| Fuse Block | Under dash, to left of steering column. See Figure. |
| Fusible Links | Connected to starter relay. |
| Lift Gate Circuit Breaker | Behind instrument cluster. |
| Pwr. Door Lock Circuit Breaker | In cavity 14 on fuse block. See Figure. |
| Washer/Wiper Circuit Breaker | In cavity 2 on fuse block. See Figure. |

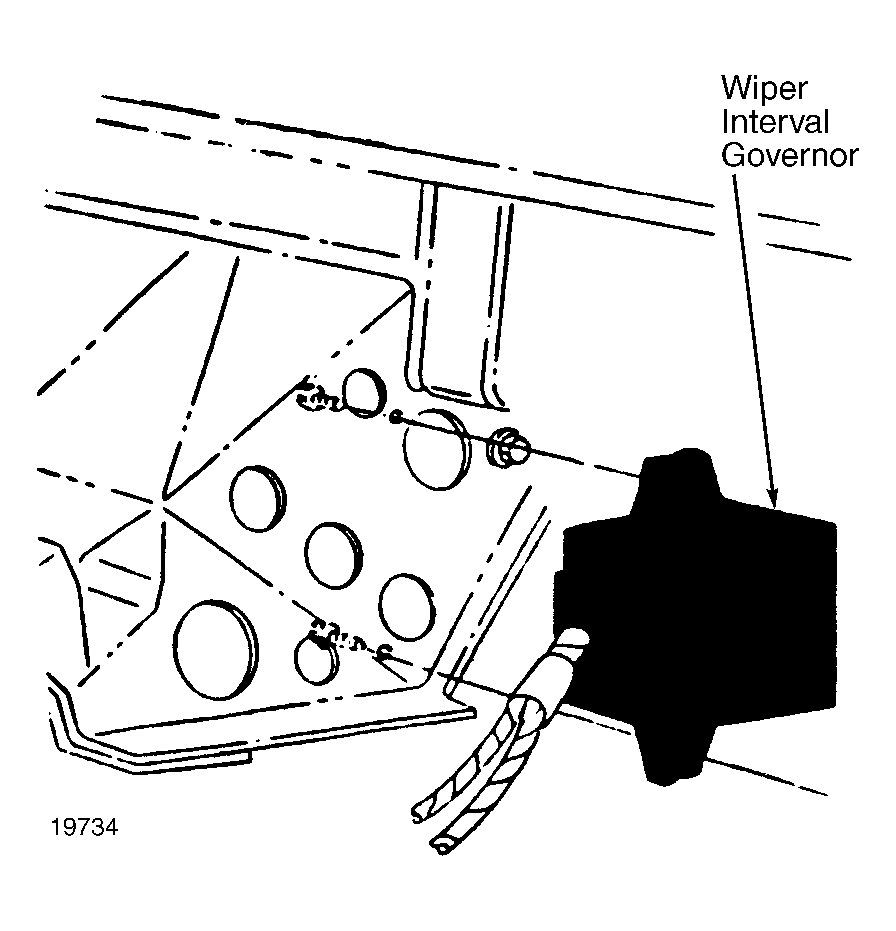

| Wiper Interval Governor | Attached to center dash support brace. See Figure. |
