Ignition System - DURA-Spark II: Overhaul: Disassembly

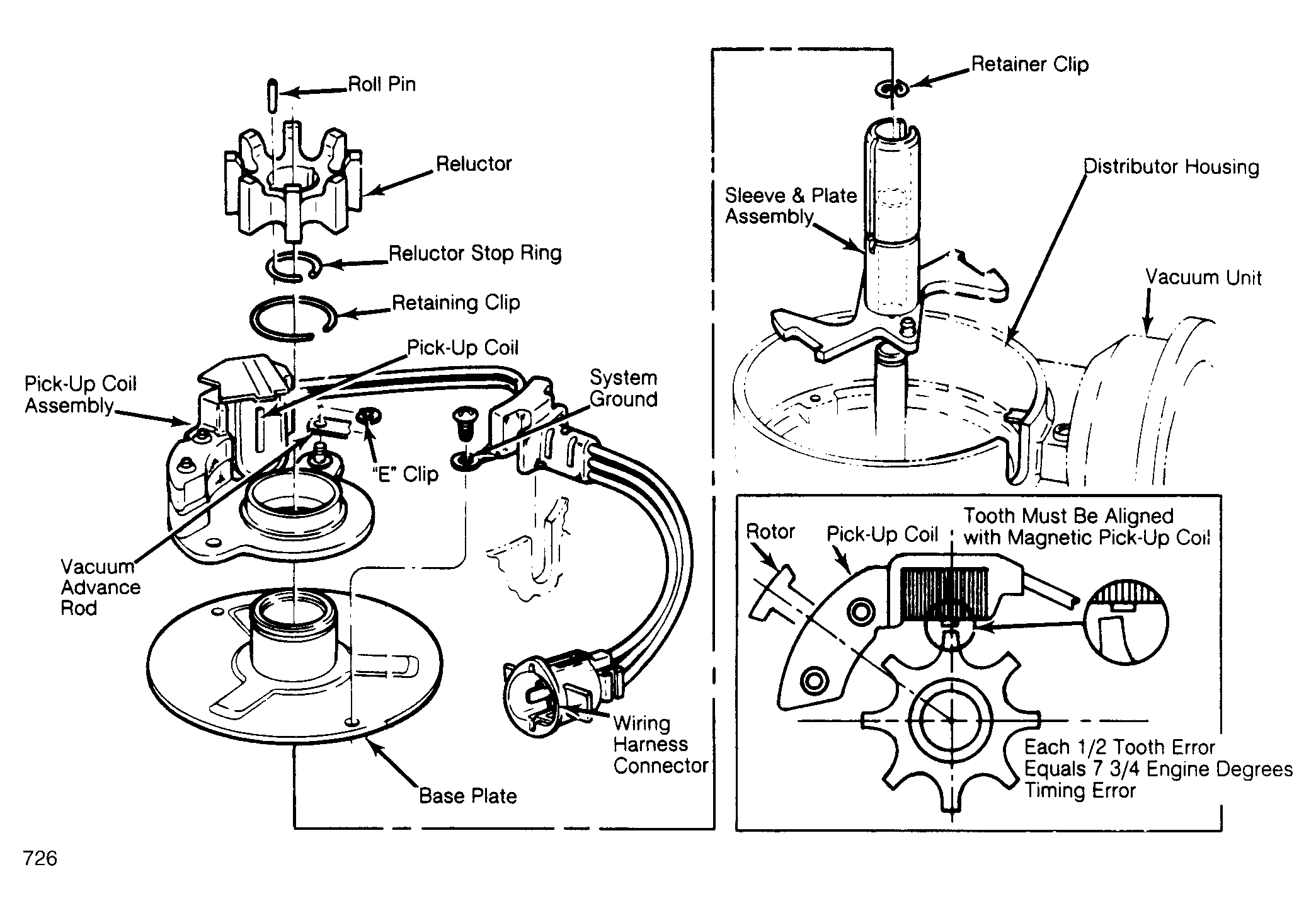

Fig 1: Components of Dura-Spark II Distributor

1. Remove distributor cap, adapter and rotor. Disconnect distributor wiring harness plug. Using a small gear puller or two screwdrivers, carefully pry armature from sleeve and plate assembly. Remove roll pin. DO NOT  pinch stator wires when removing armature.
2. Remove large wire retaining clip from base plate annular groove. Remove ground screw base and pull up to remove rubber grommet from base.
3. Remove "E" clip holding diaphragm rod advance link to stator. Lift diaphragm rod off post on stator assembly, and move it out against housing. Remove stator assembly.
