Test Spark Plug

Use either a spark tester tool or modify a spark plug (cut off side electrode and install spring clip for grounding plug housing) for use in testing ignition system. See Fig 1.

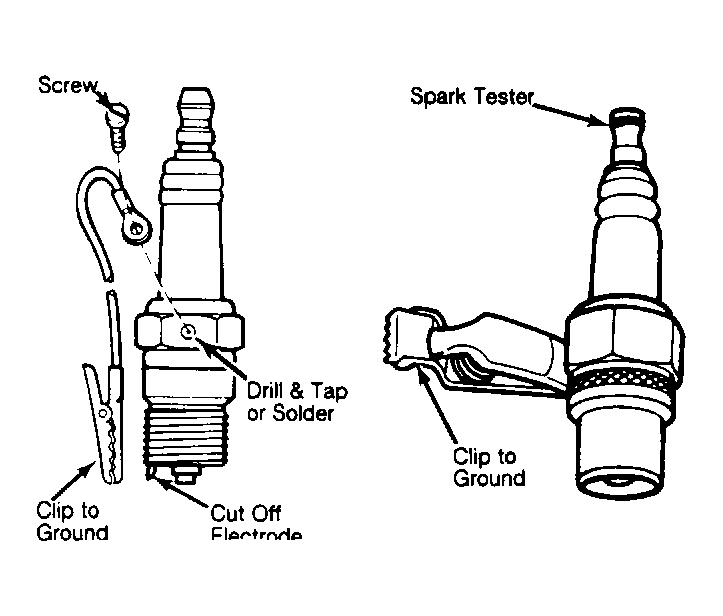

Fig 1: Modified Spark Plug and Spark Tester Modify spark plug by cutting off side electrode and installing spring clip for grounding plug housing.
