Fuel Injectors

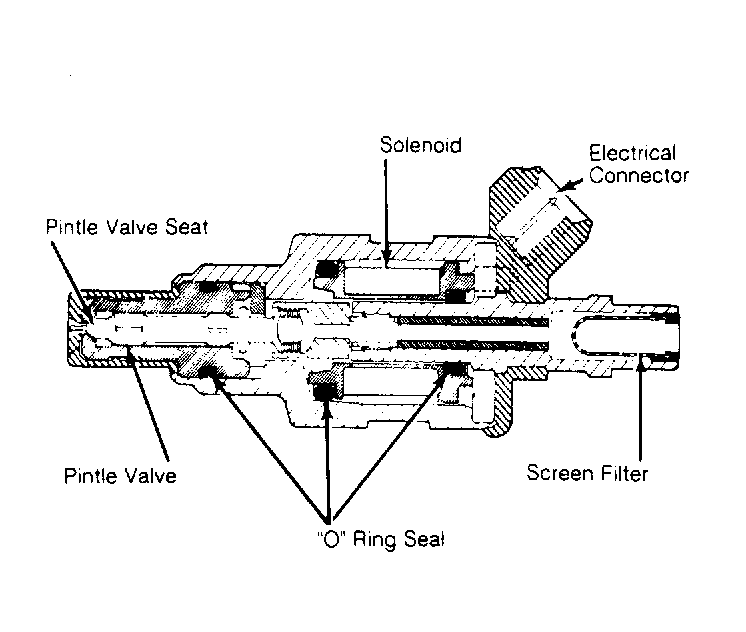

The fuel injector valve bodies consist of solenoid actuated pintle and needle valve assembly. Since injector orifice is fixed and fuel pressure is constant, fuel flow is controlled by injector "ON" time. Injectors are actuated by the ECA at twice the crankshaft speed.
