Testing Spark Plug

Use a spark tester tool (if available), or modify a spark plug (cut off side terminal and install spring clip for grounding plug housing) for use in testing ignition system. See Fig 1.

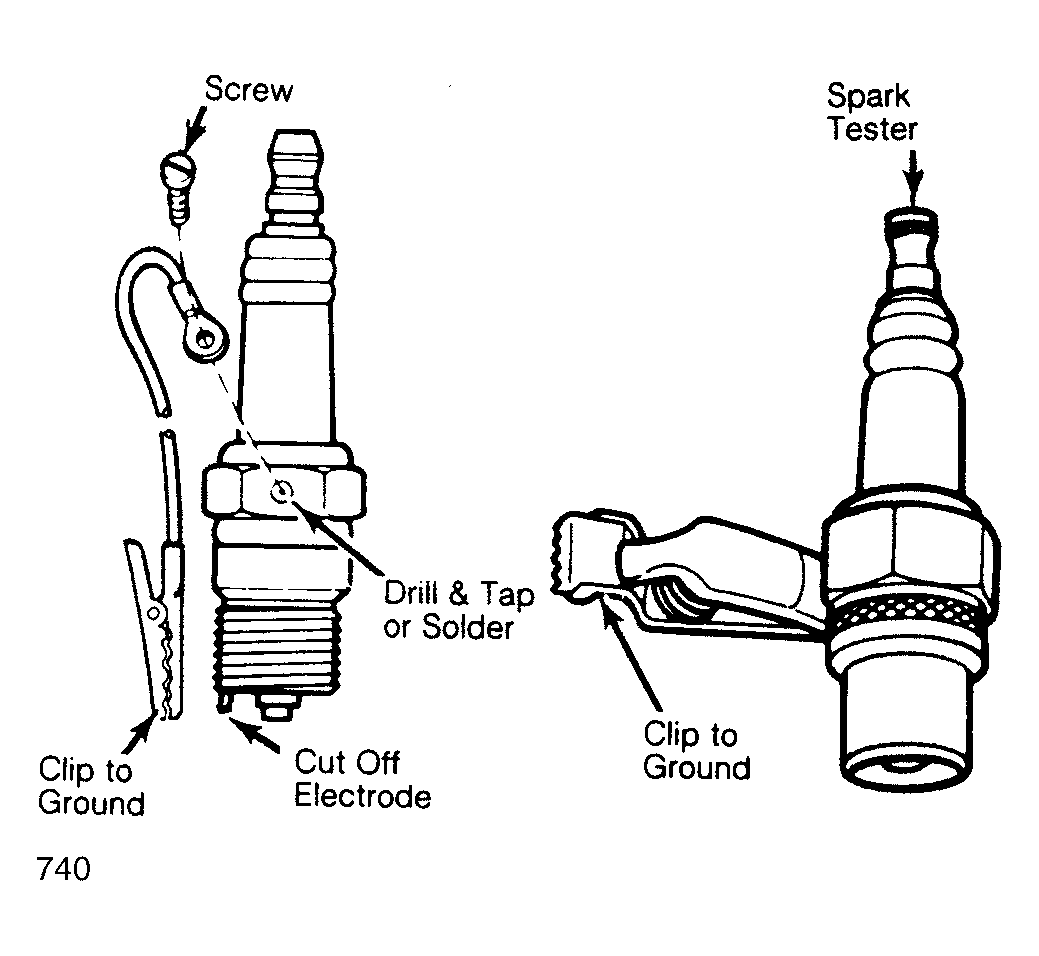

Fig 1: Modifies Spark Plug and Spark Tester Modify spark plug by cutting off side electrode and installing spring clip.
