Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Cooling Fan Controller | Attached to instrument panel support. See Figure. |
| Electronic Control Assembly | On right side cowl. |

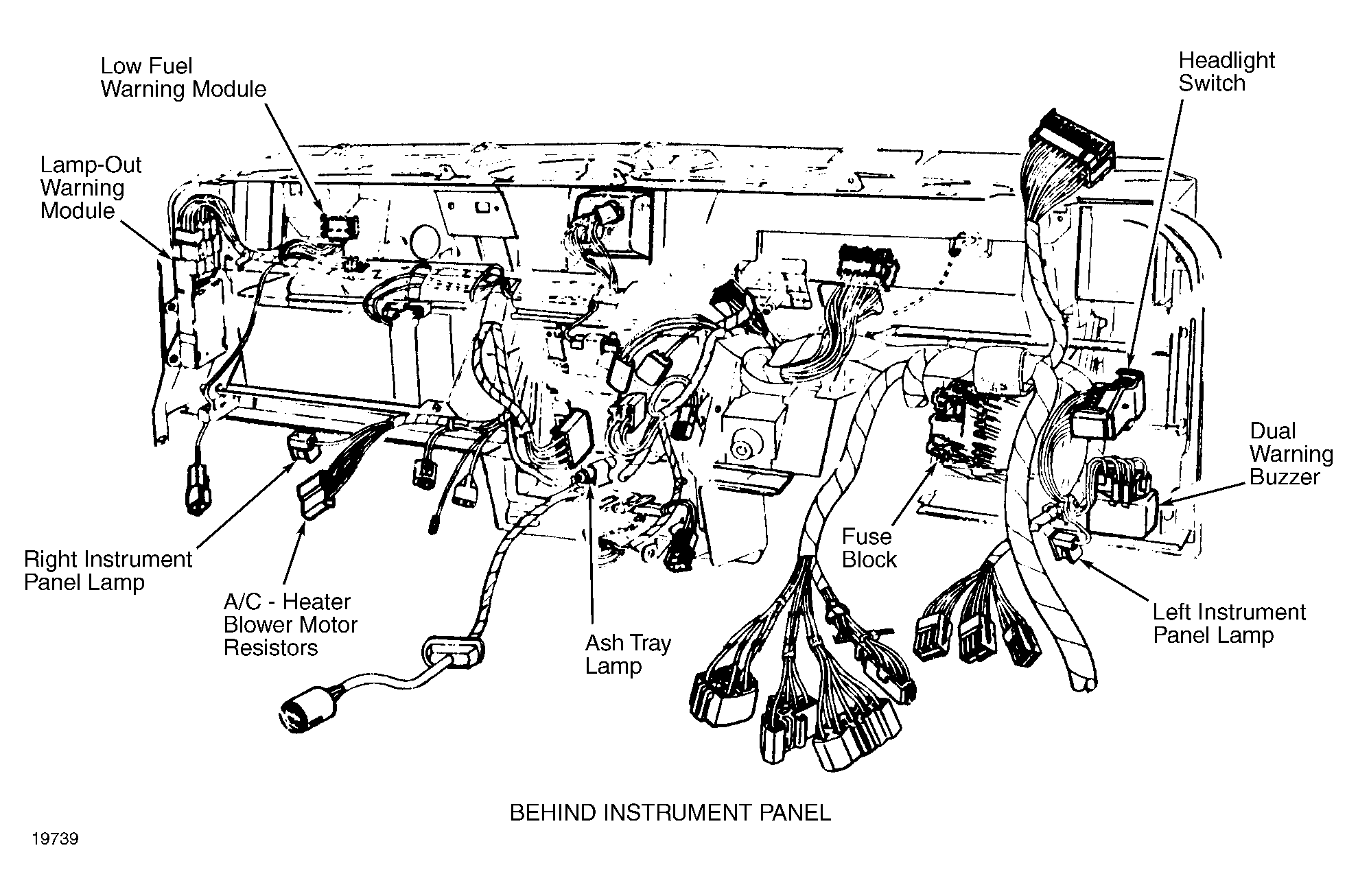

| Lamp-Out Warning Module | Behind glove box. See Figure. |
| Low Fuel Warning Module | Behind right side of instrument panel. See Figure. |

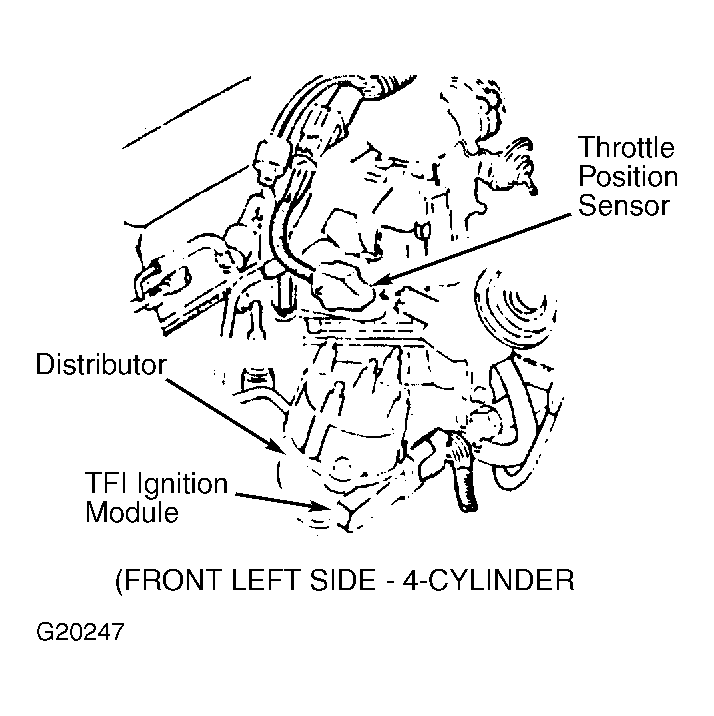

| TFI Ignition Module | Attached to distributor. See Figure. |
| Voice Alert Module | On left side of steering column. |
