Fuel Lines & Hoses

Inspect all metal fuel lines for damage from vibration, impact, or kinking. Inspect rubber hoses for cracks, kinks, or deterioration. If fuel line between engine and fuel tank is suspected of being clogged, disconnect at engine and fuel tank and blow clear with compressed air. NEVER use compressed air on a fuel line which is still connected to a fuel pump.

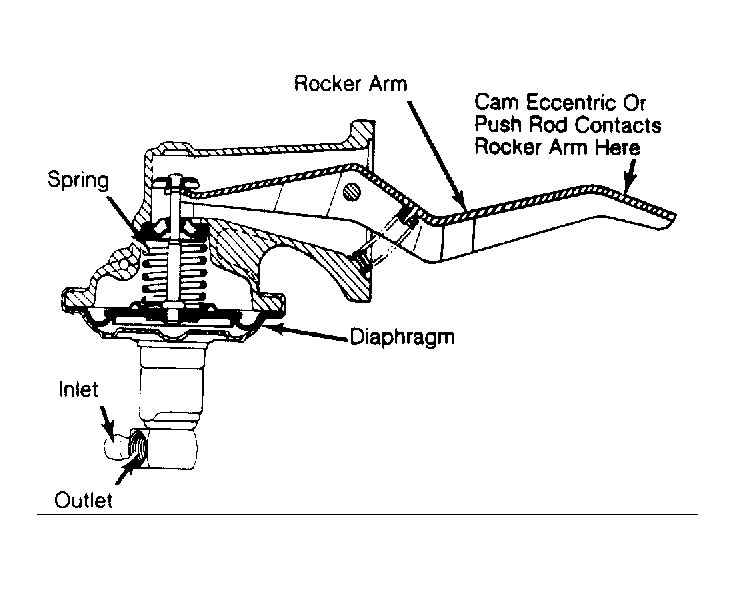

Fig 1: Typical Mechanical Fuel Pump Assembly
G5428
