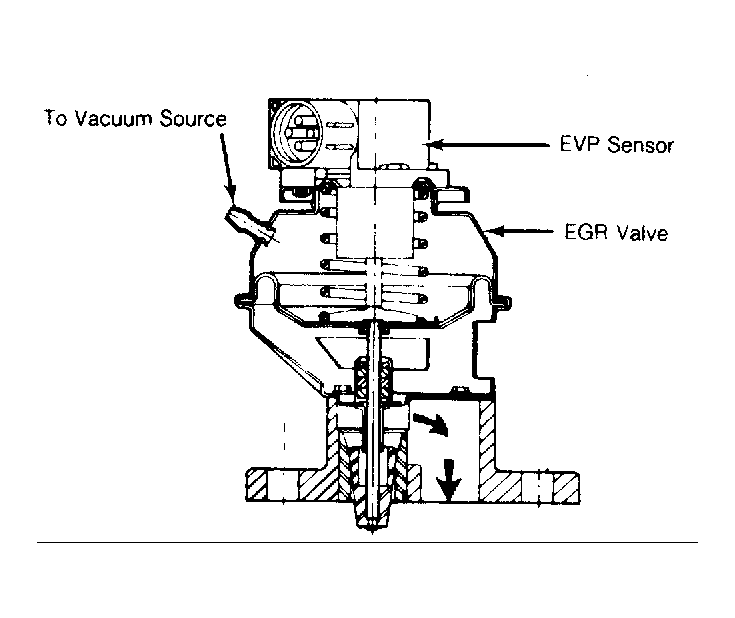

Electronic EGR Valve
The Electronic EGR Valve System is controlled by the Electronic Control Assembly (ECA). An (EVP) sensor mounted on top of the EGR valve sends an electrical signal of the EGR valve position to the Electronic Control Assembly (ECA). The Electronic Control Assembly (ECA) sends an electrical signal to the Electronic Vacuum Regulator (EVR) to control vacuum to the EGR valve.
