Wiring Diagrams

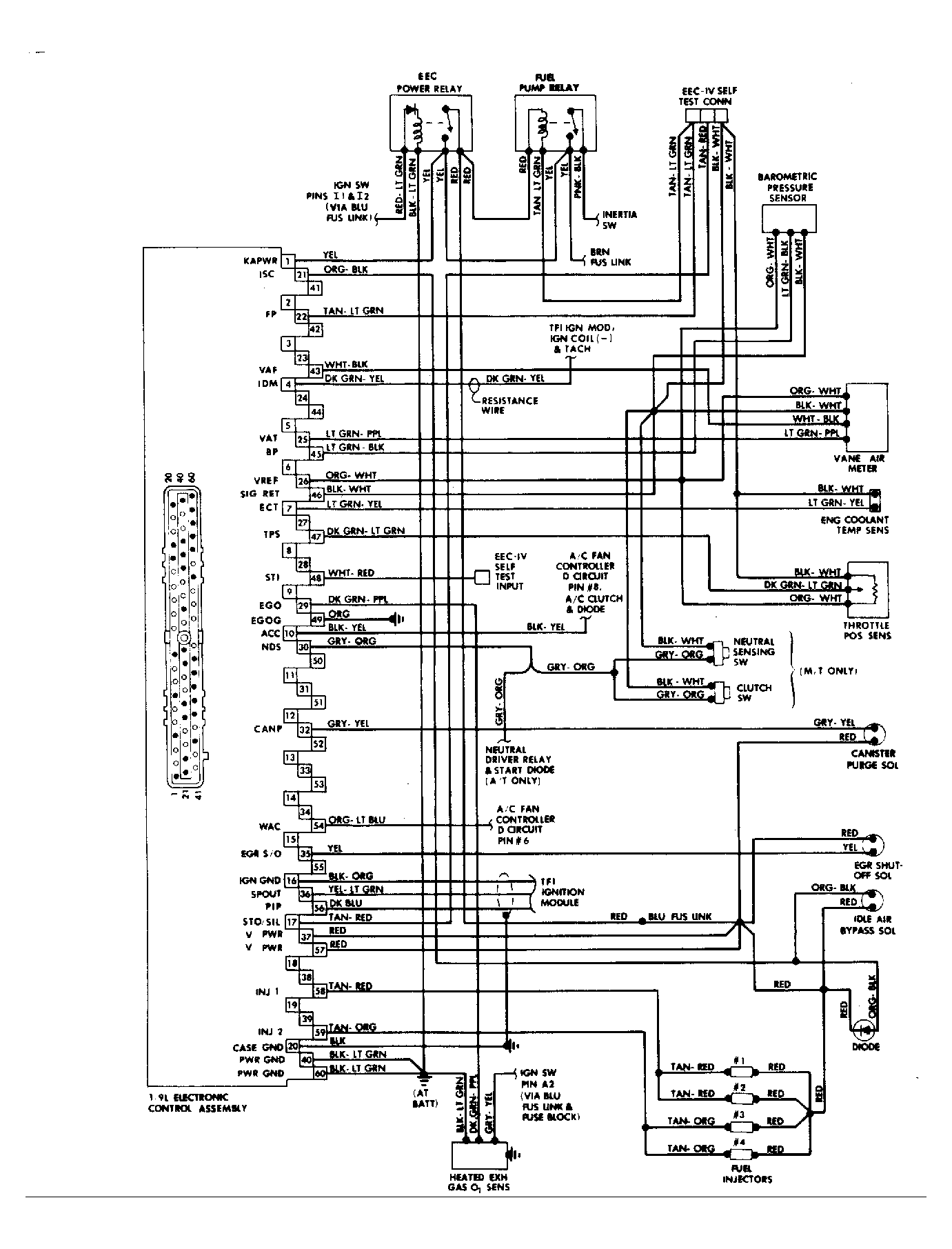

Fig 1: 1.9L Multi-Point Fuel Injection System Wiring Diagram
G5339

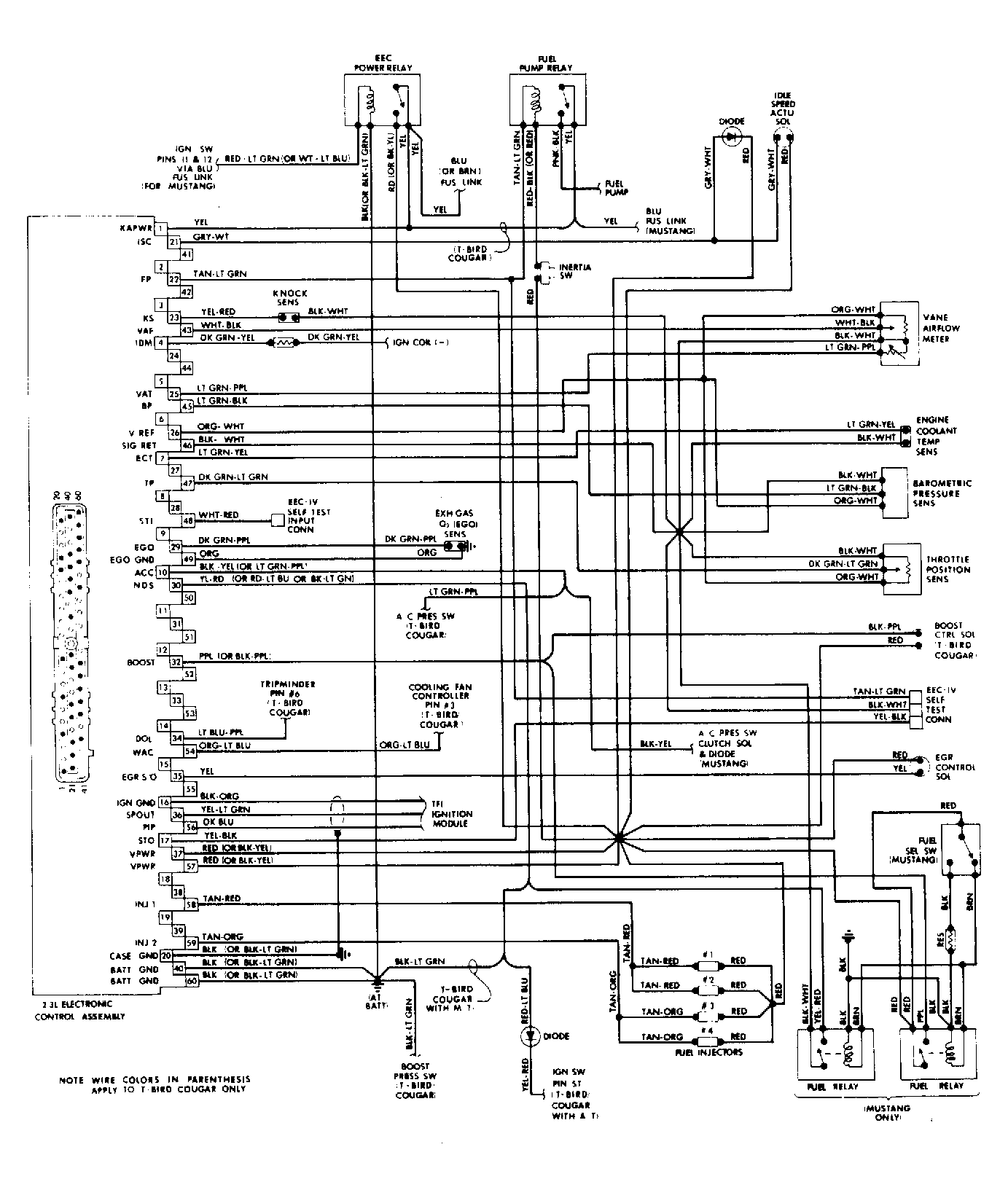

Fig 2: 2.3L Turbo Multi-Point Fuel Injection System Wiring Diagram
G5340

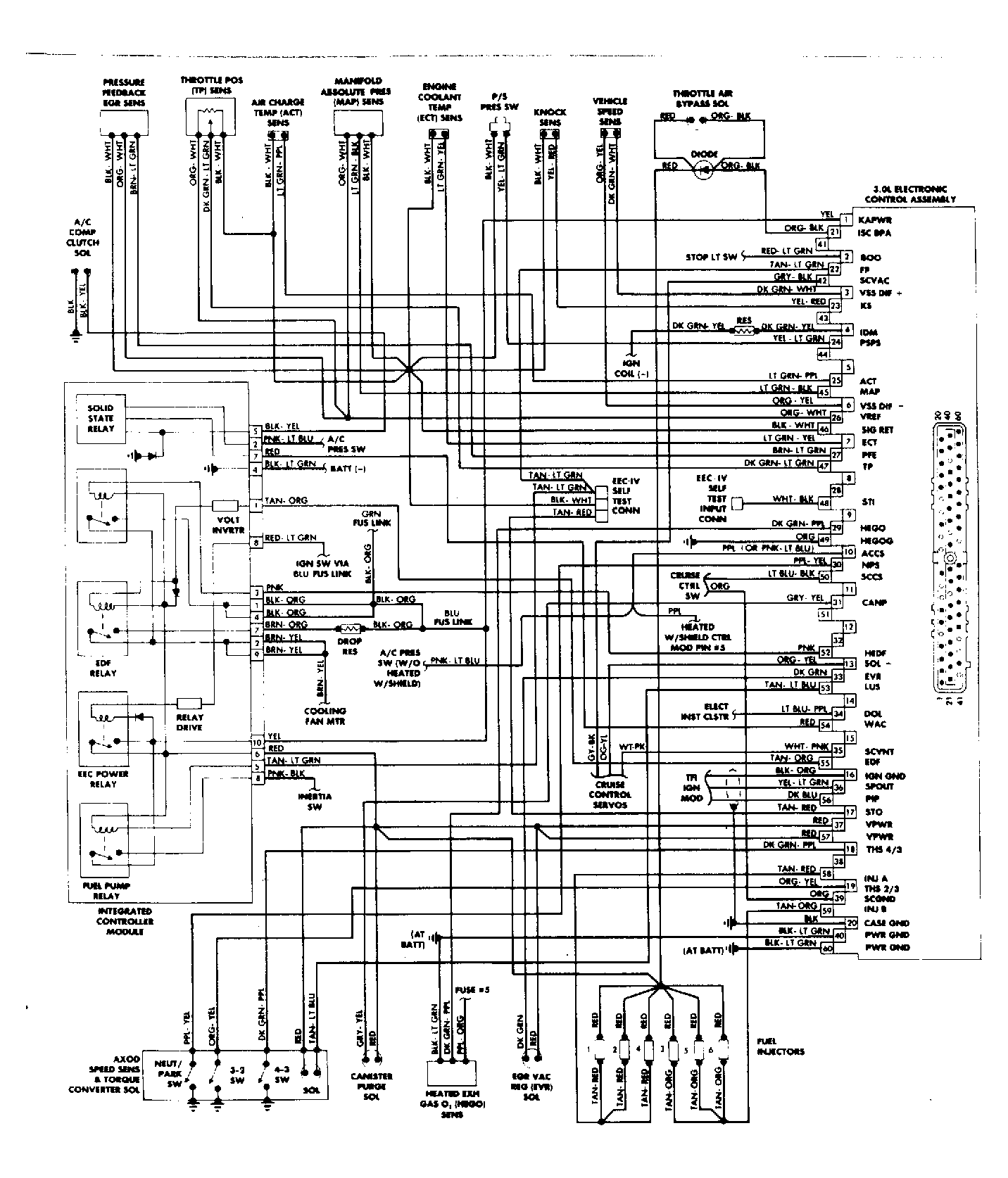

Fig 3: 3.0L Multi-Point Fuel Injection System Wiring Diagram
G5341

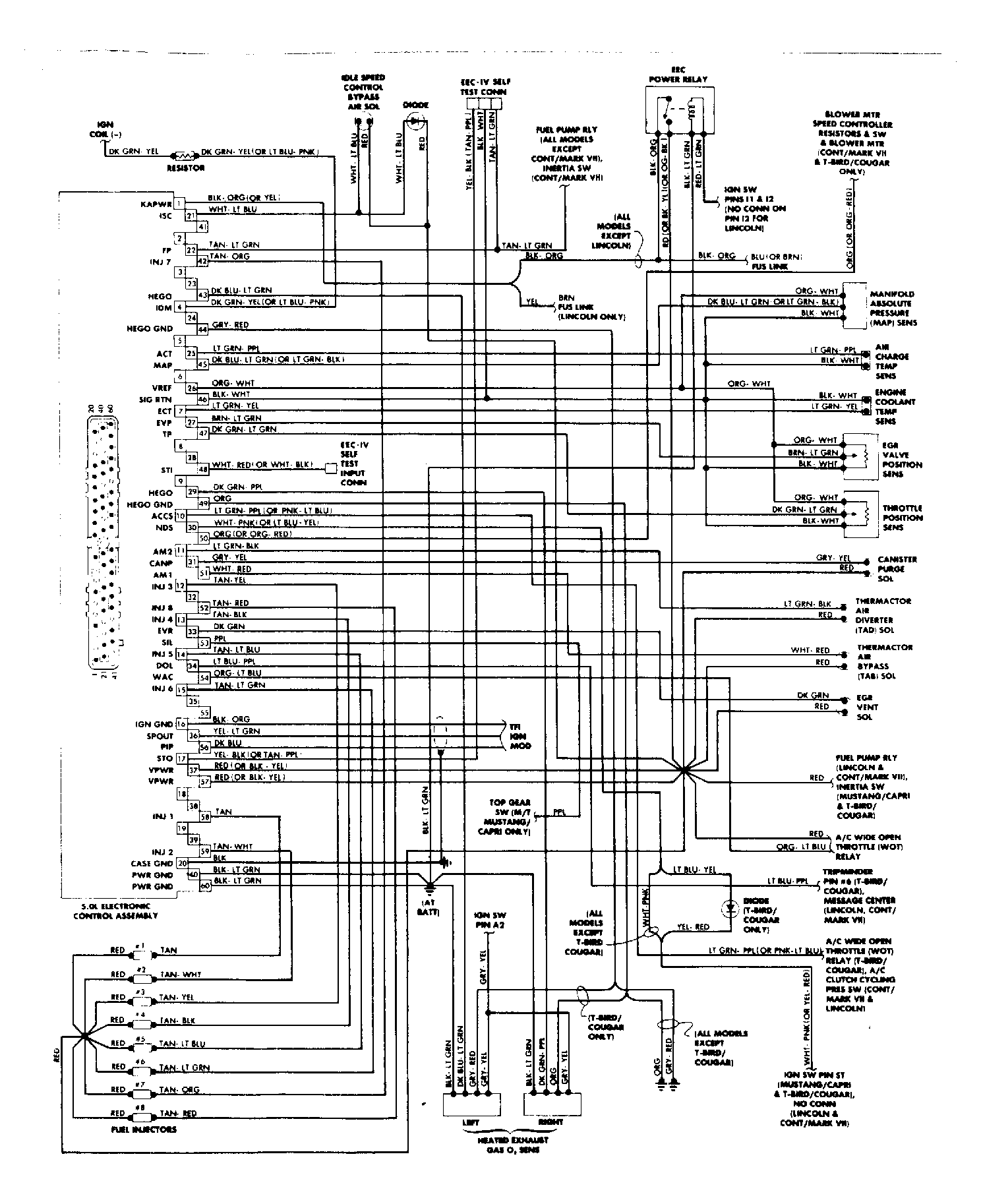

Fig 4: 5.0L Sequential Multi-Point Fuel Injection System Wiring Diagram
G5342
