Engine Control Module

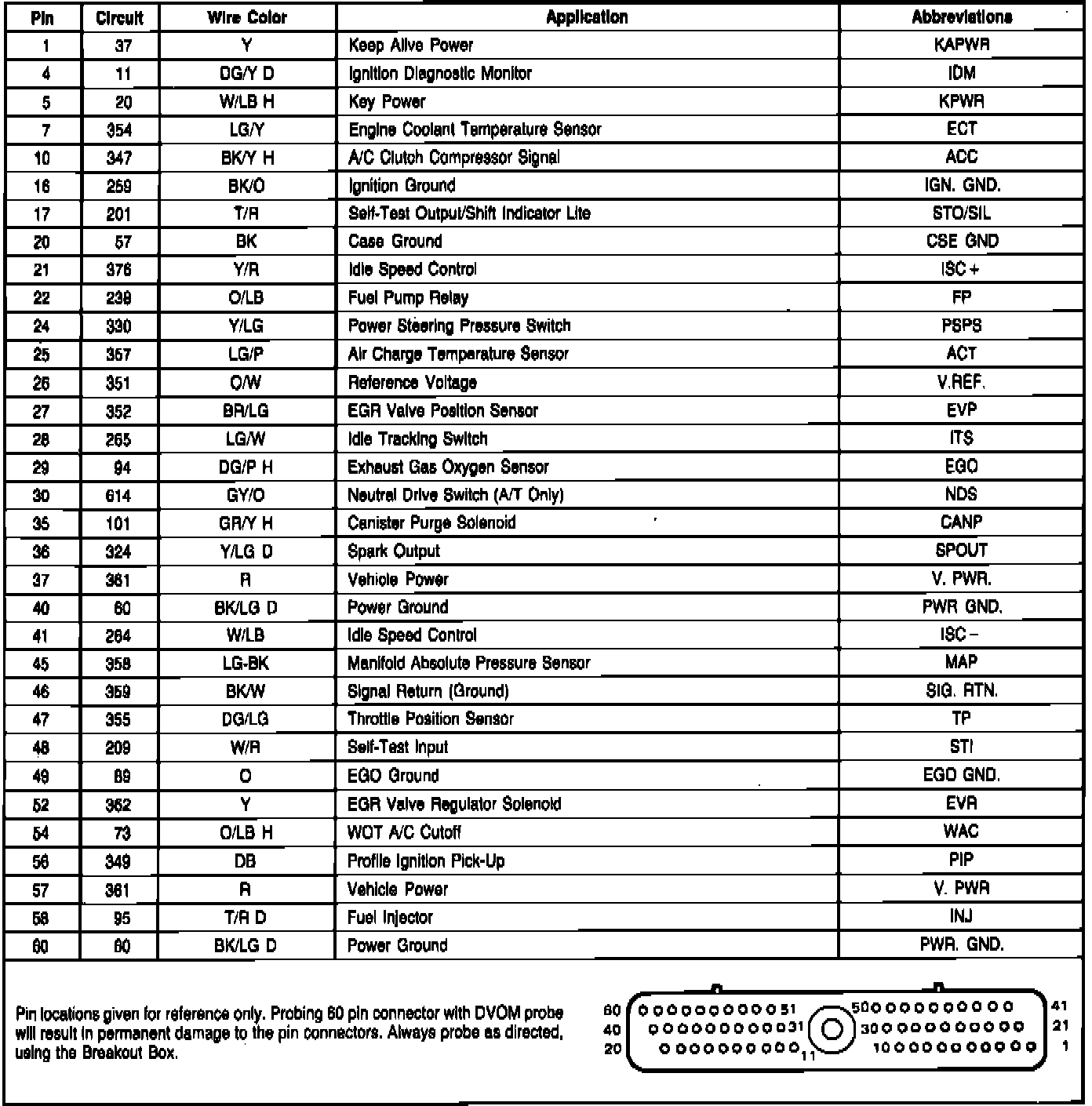

Fig. 222 EEC-IV module connector pin usage. 1986 4-140 high swirl combustion engine W/CFI:
