Bronco 5.8 H
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Selector Valve
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

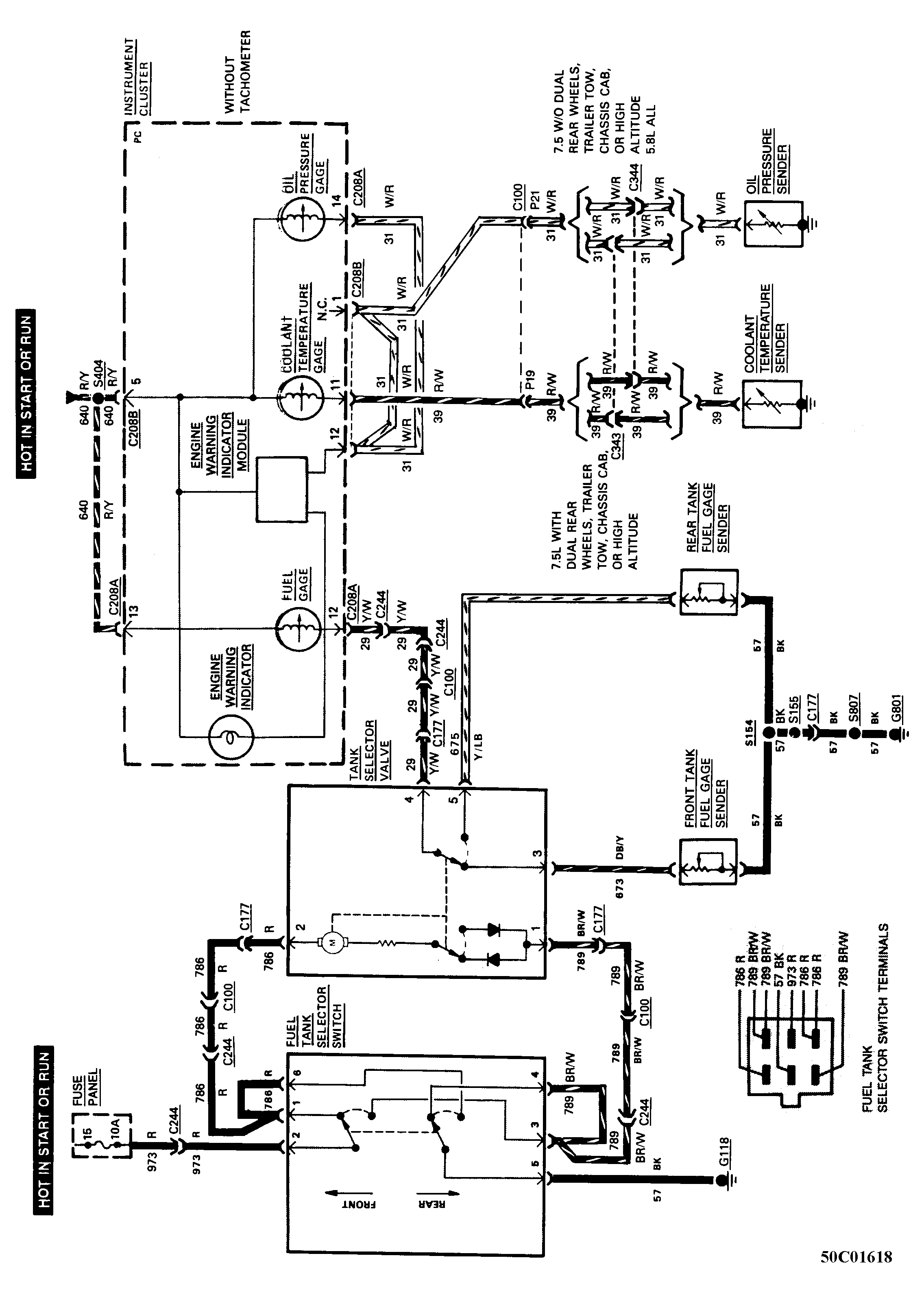

Fig 1: Dual Fuel Tank System Wiring Diagram
Courtesy of FORD MOTOR CO.
