A/T Technical Data

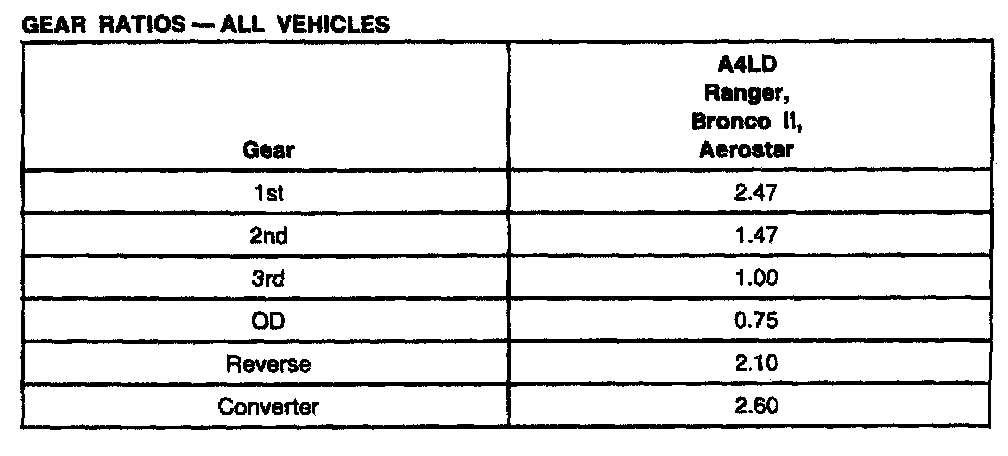

A4LD 4-spd A/T, Gear Ratios (Ranger/Bronco II/ Aerostar):

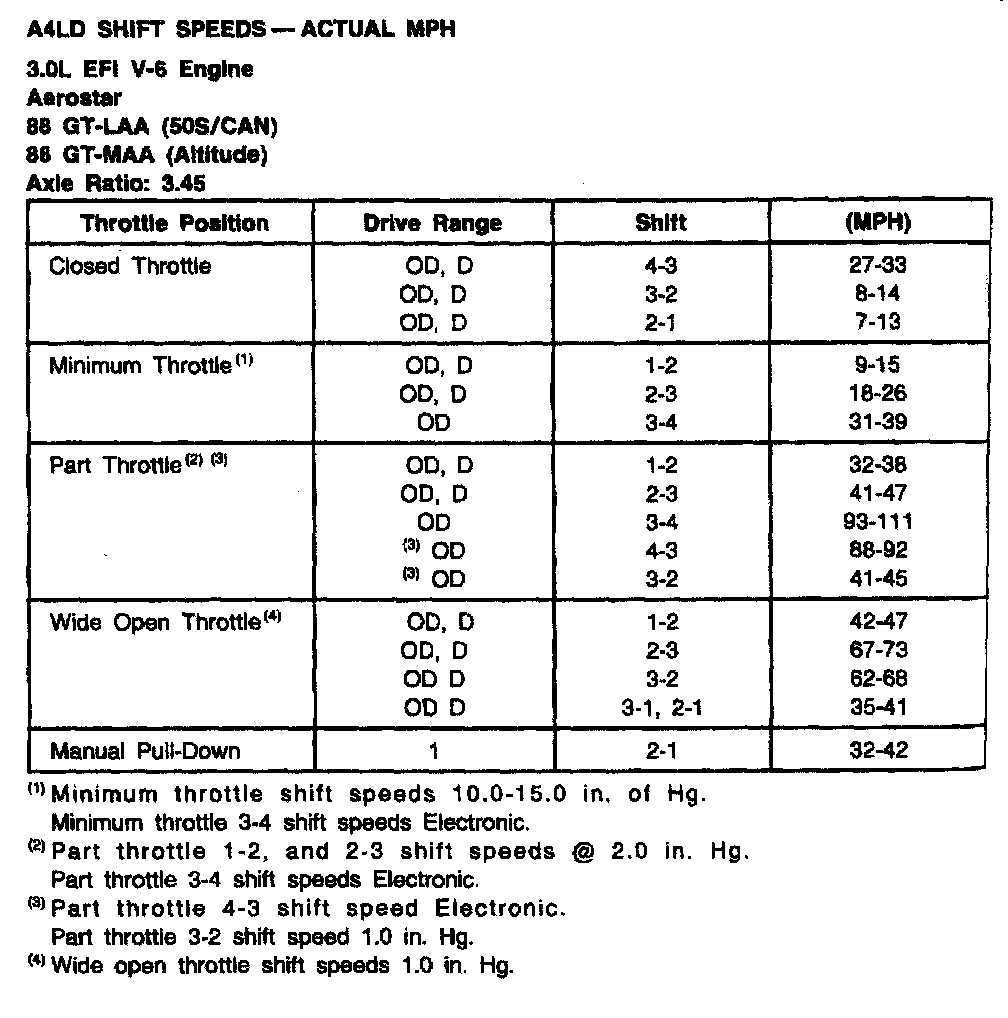

A4LD 4-spd A/T, Shift Speeds (3.0L Aerostar):

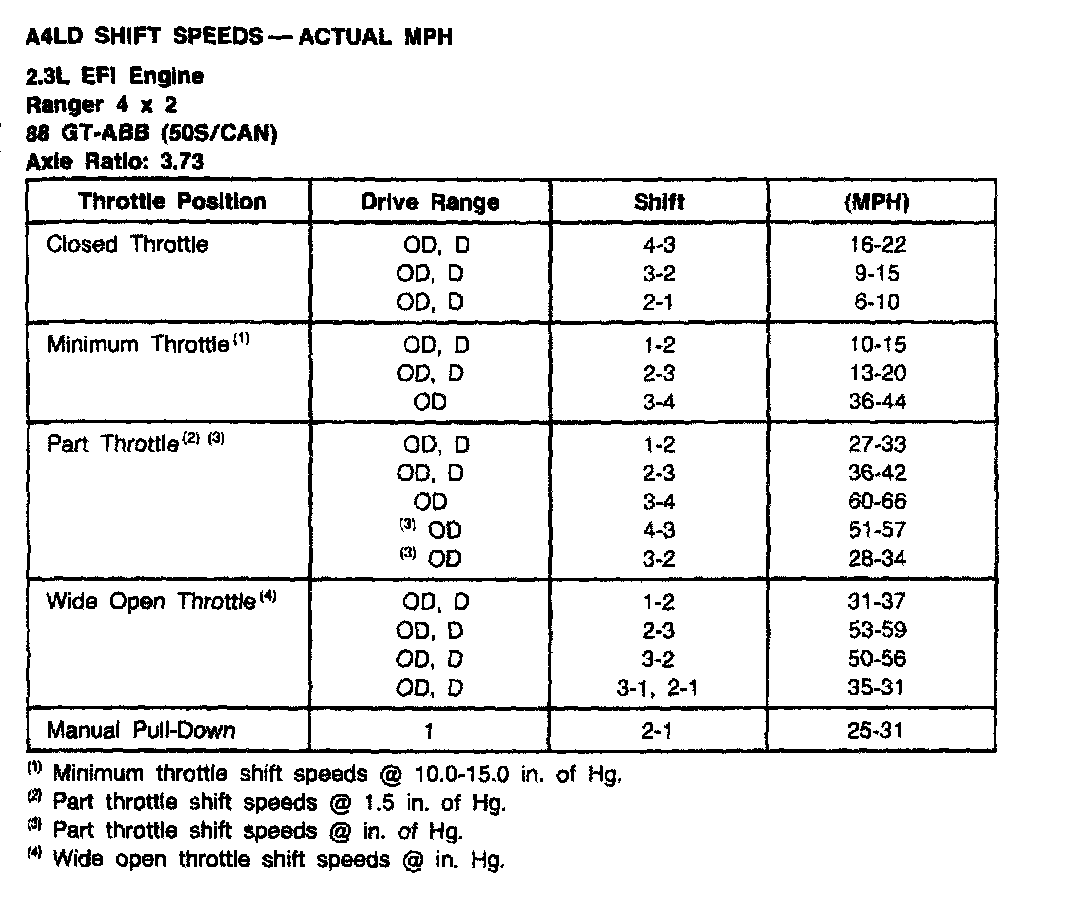

A4LD 4-spd A/T, Shift Speeds (2.3L Ranger):

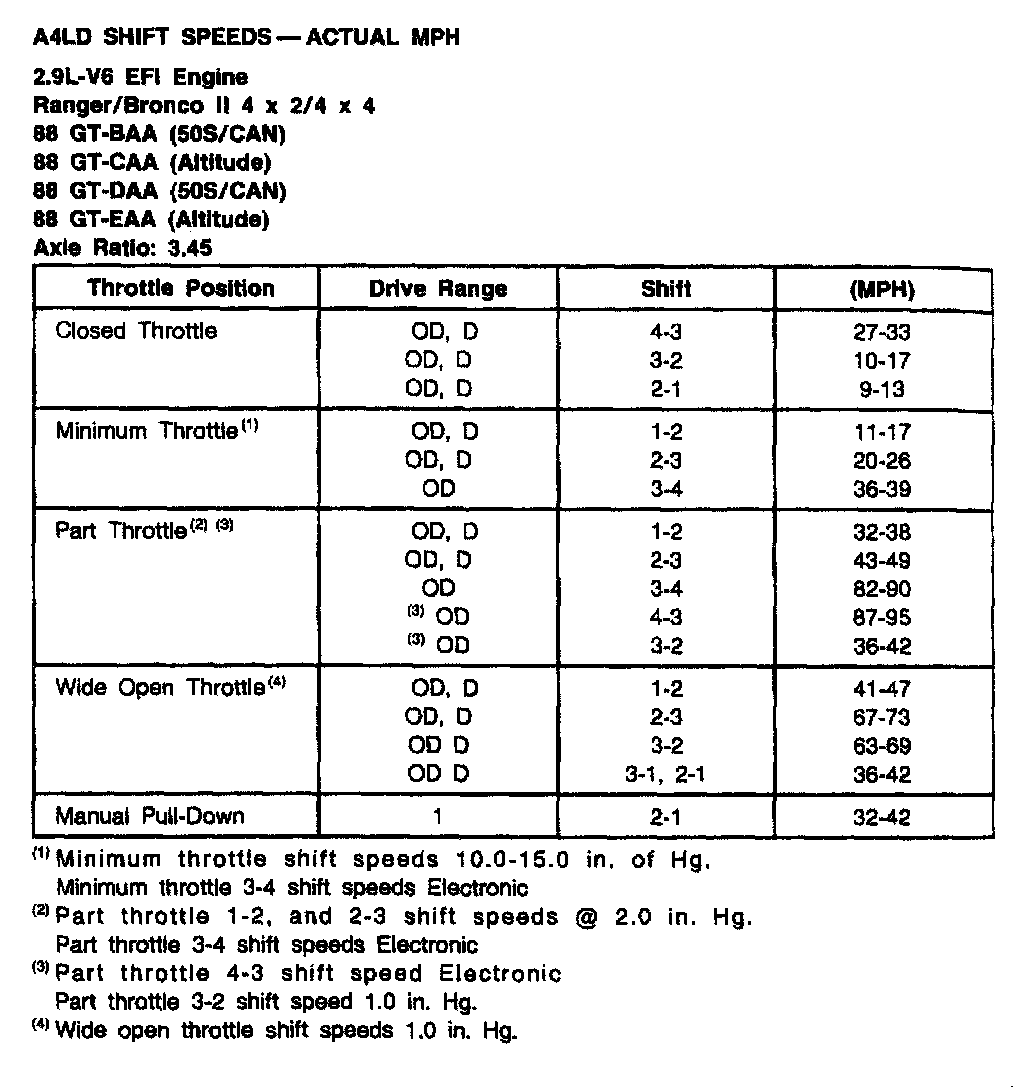

A4LD 4-spd A/T, Shift Speeds (2.9L Ranger/Bronco II):

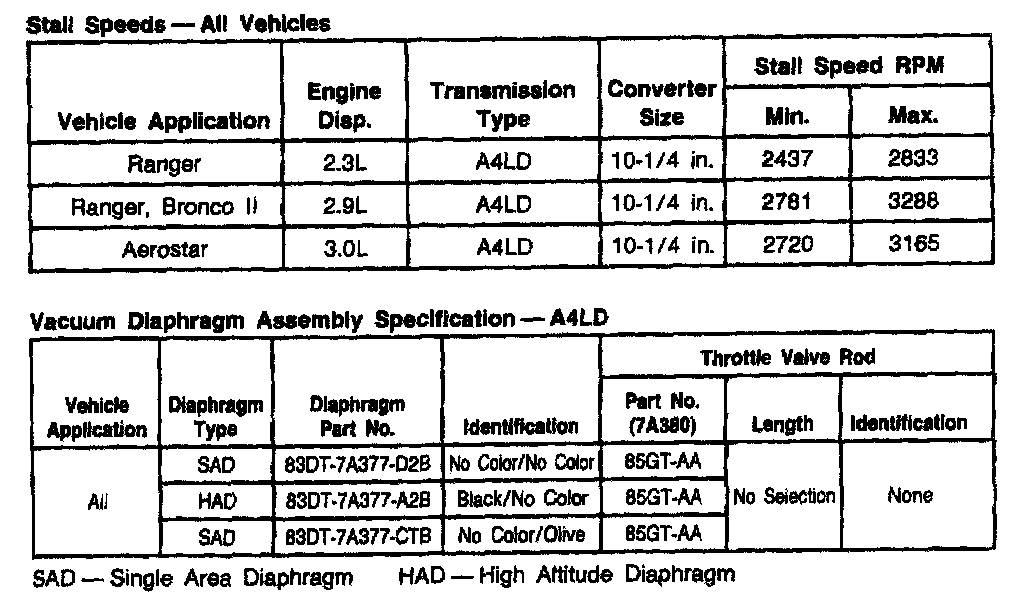

A4LD 4-spd A/T, Stall Speeds/Vacuum Diaphragm (All):

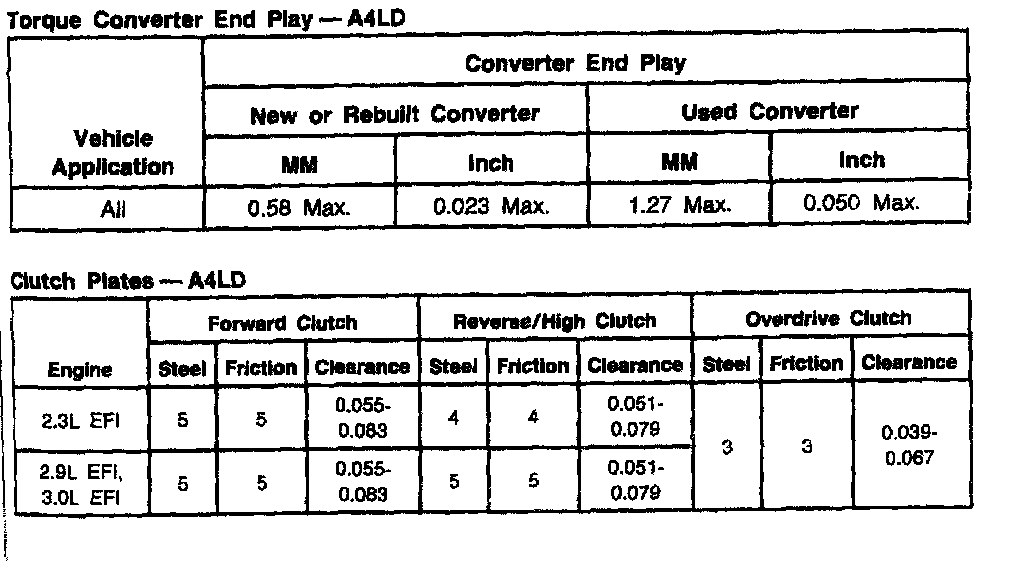

A4LD 4-spd A/T, Converter End Play/Clutch Plates (All):

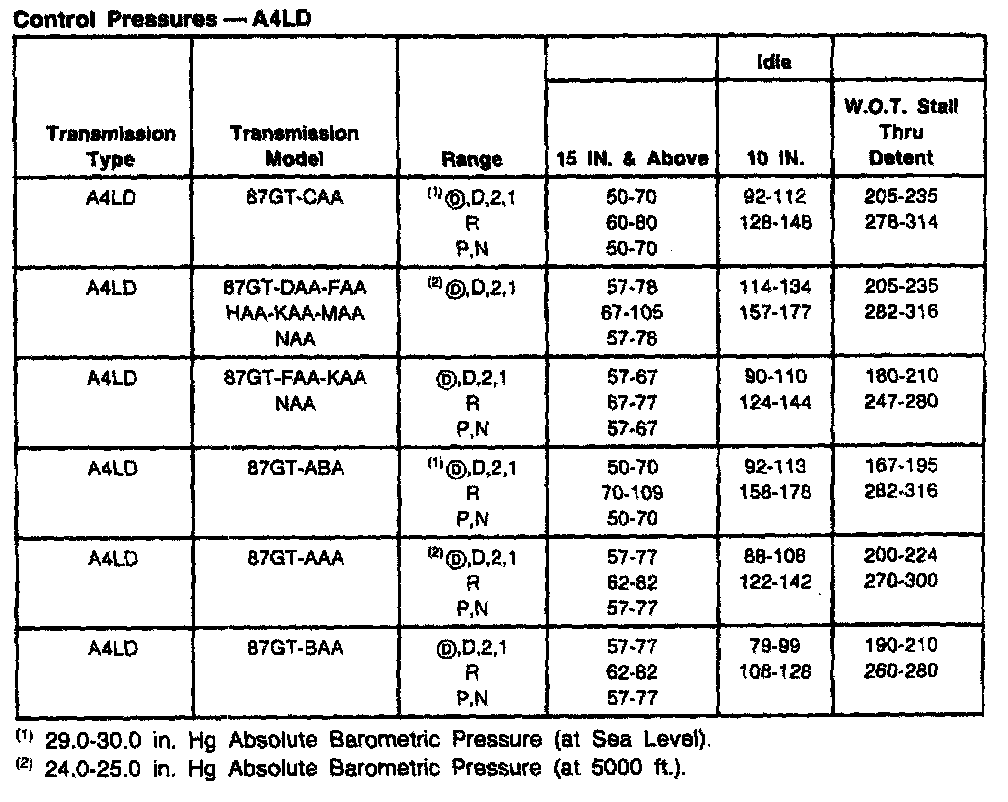

A4LD 4-spd A/T, Control Pressures:

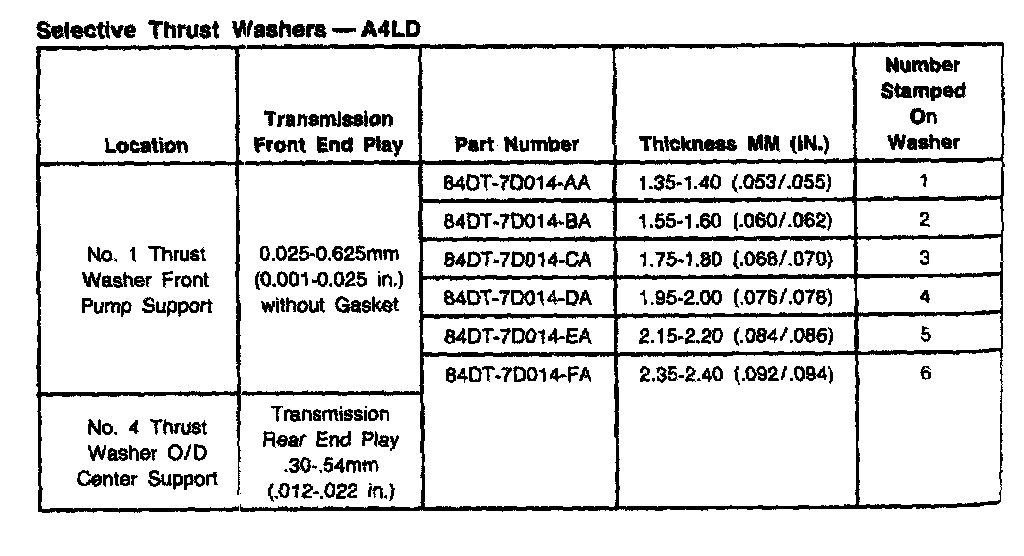

A4LD 4-spd A/T, Front Pump/Thrust O/D Washer End Play:

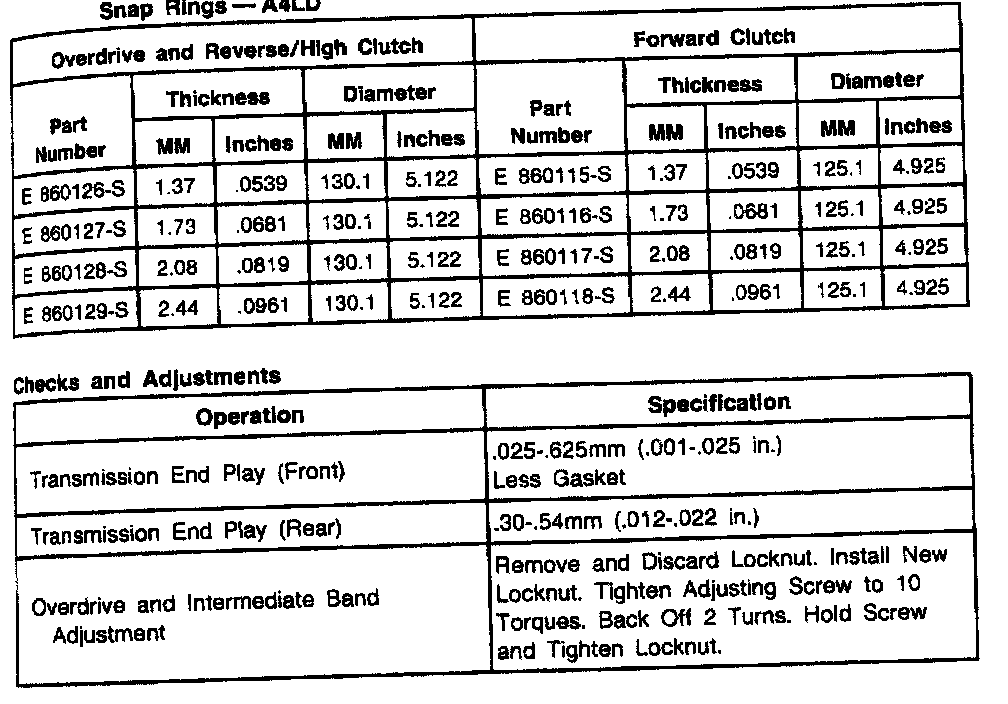

A4LD 4-spd A/T, Clutch Snap Rings/End Play Adjmts:

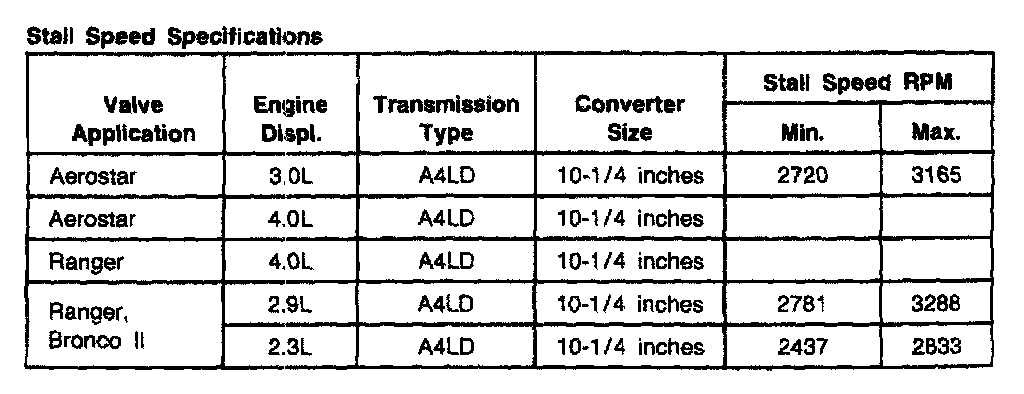

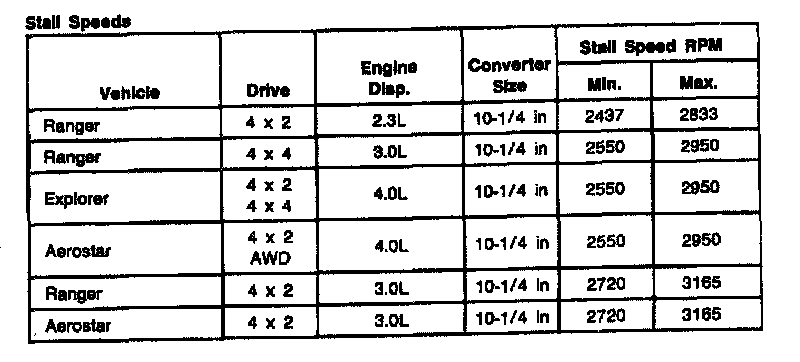

A4LD 4-spd A/T, Stall Speeds/Converter Size (3.0L/4.0L, 2.9/2.3):

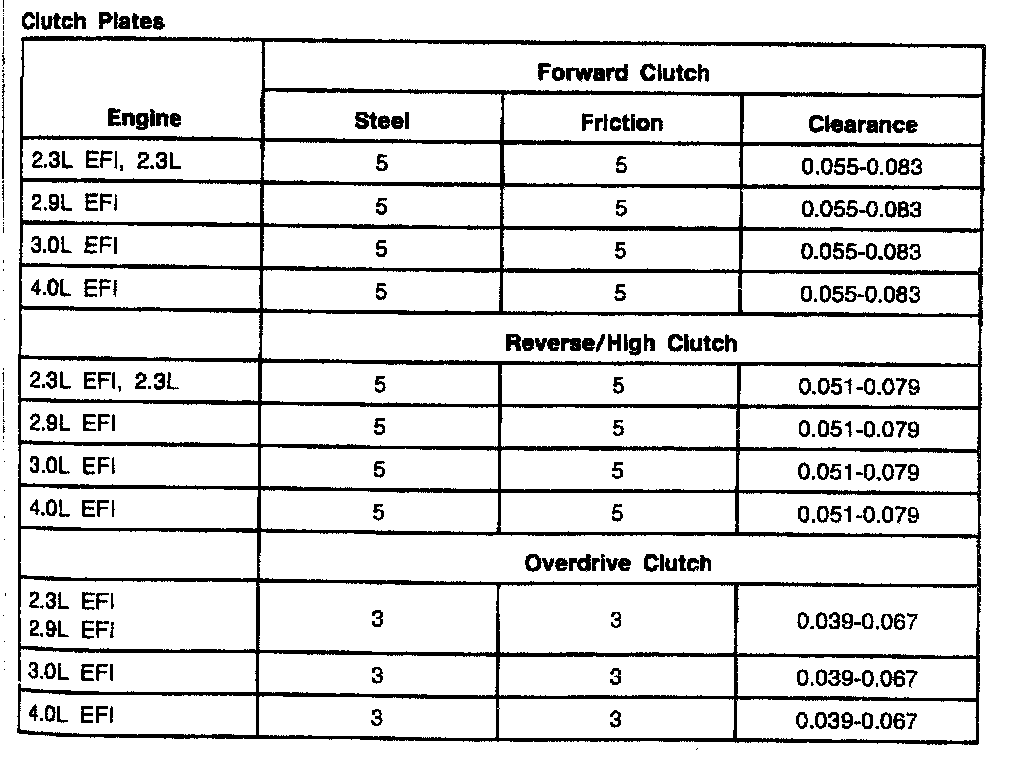

A4LD 4-spd A/T, Clutch Plate Clearances:

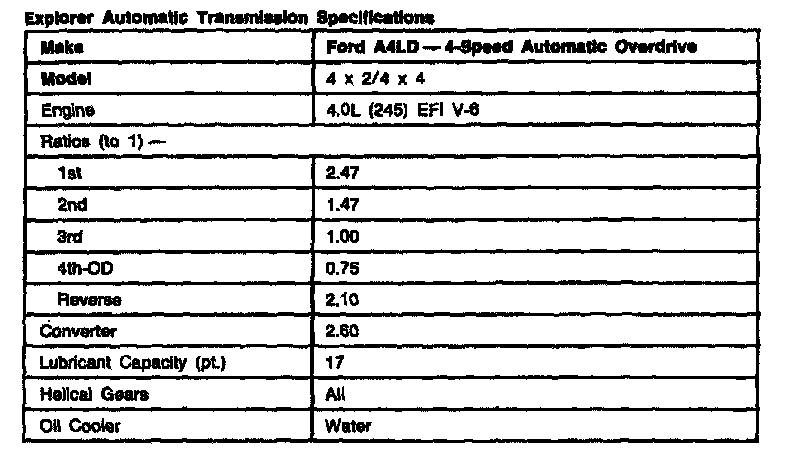

A4LD 4-spd A/T, Gear Ratios (Explorer):

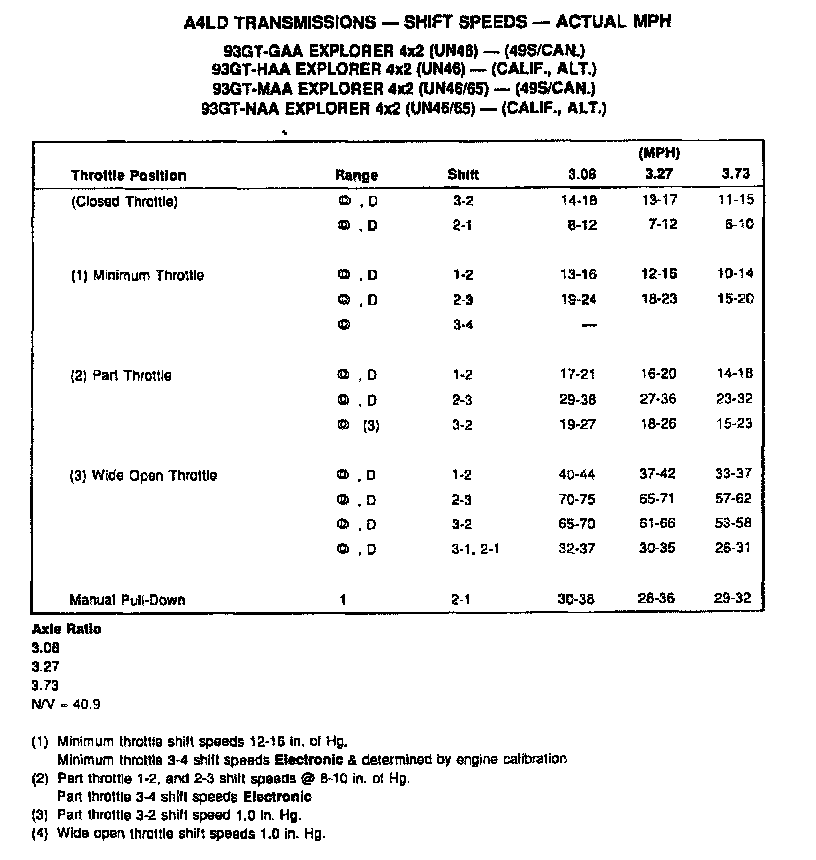

A4LD 4-spd A/T, Shift Speeds (Explorer):

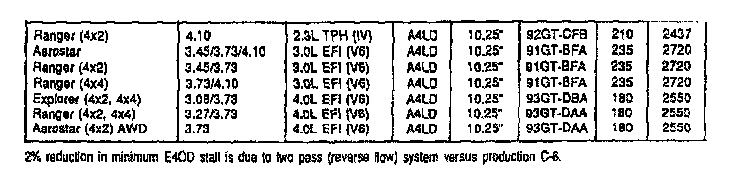

A4LD 4-spd A/T, Stall Speeds (Explorer):

A4LD 4-spd A/T, Stall Speeds (Explorer):
