Wiring Diagrams

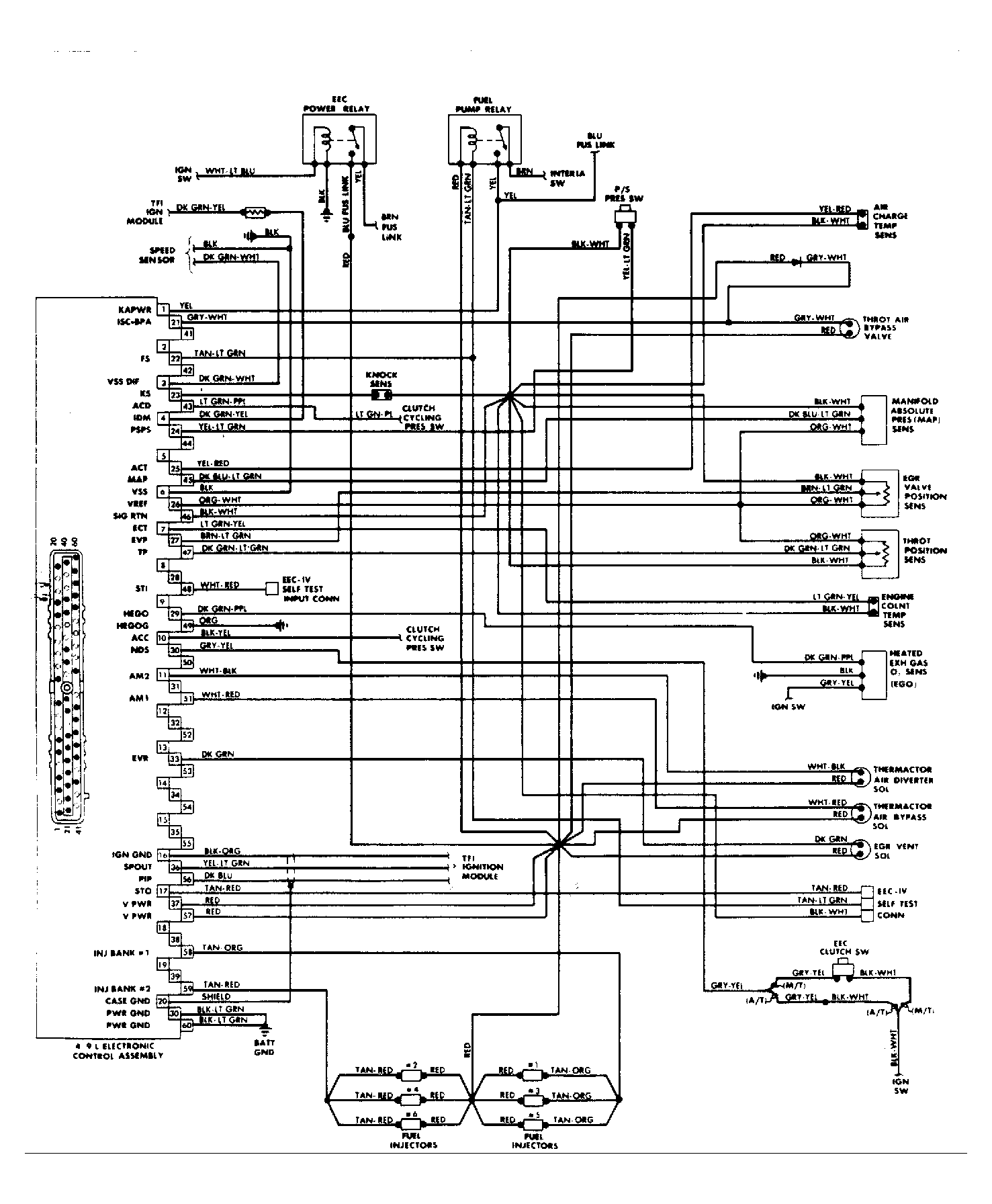

Fig 1: Aerostar 2.3L EFI EEC-IV Wiring Diagram

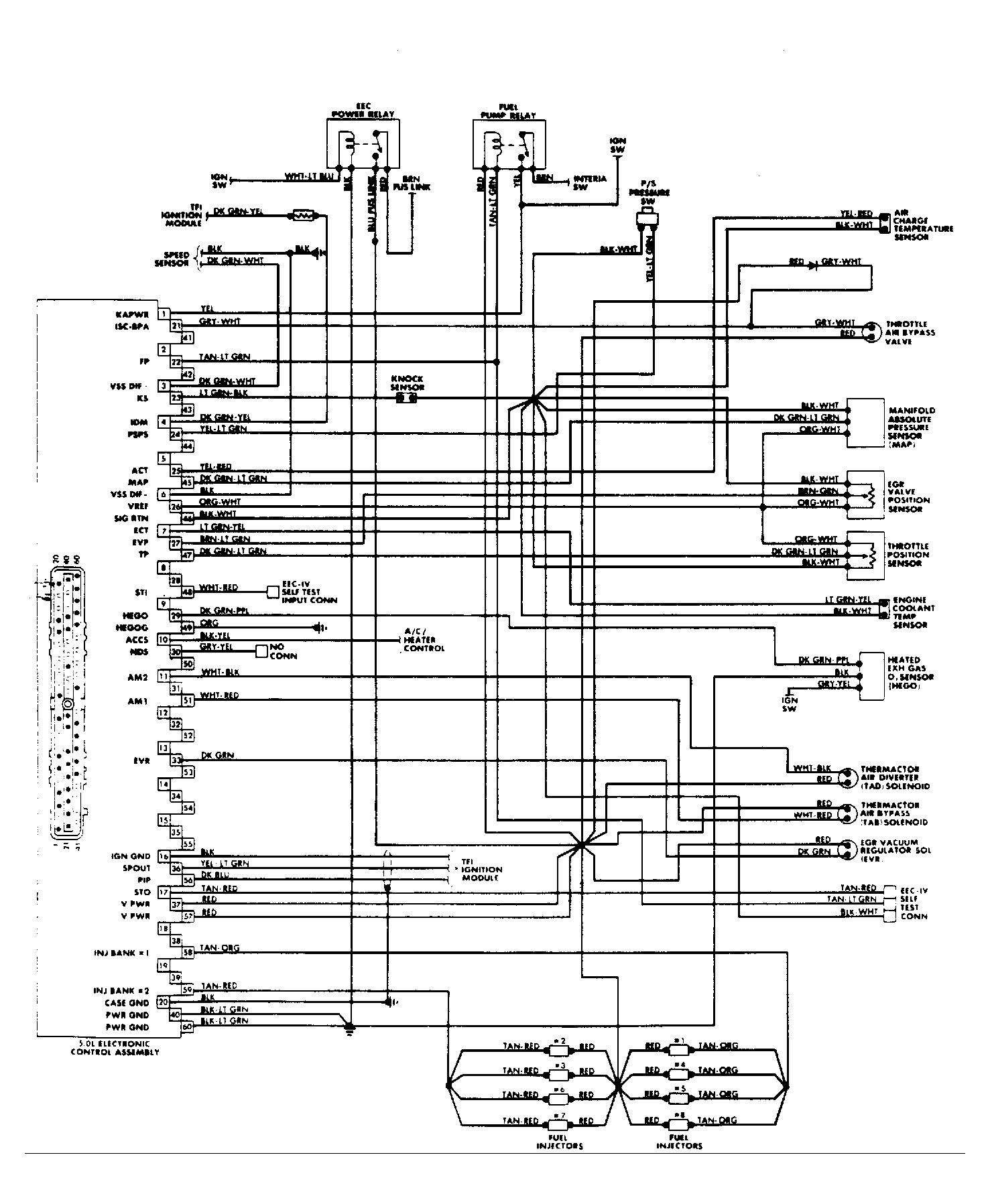

Fig 2: Bronco II & Ranger 2.3L EFI EEC-IV Wiring Diagram

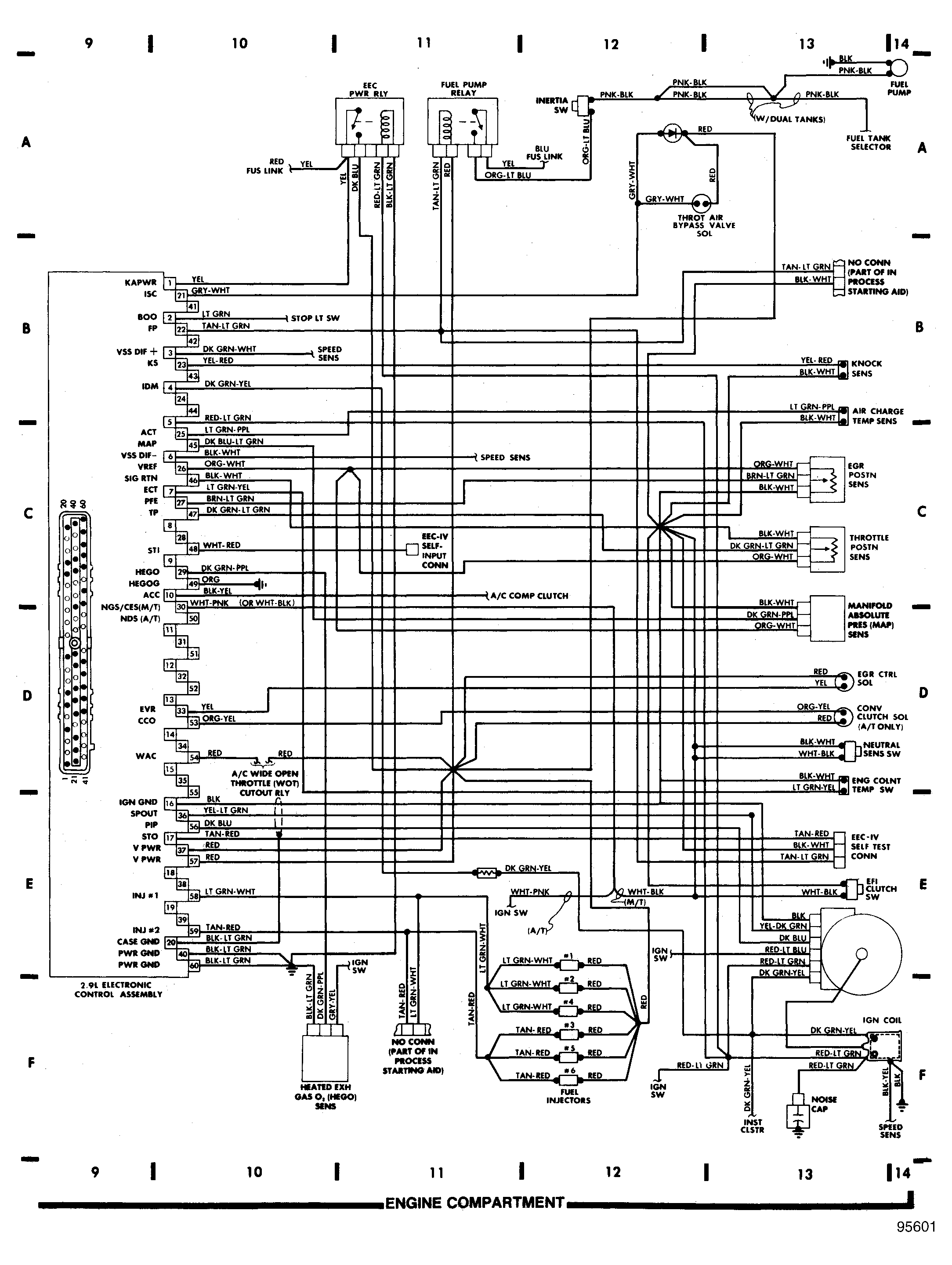

Fig 3: Bronco II & Ranger 2.9L EFI EEC-IV Wiring Diagram

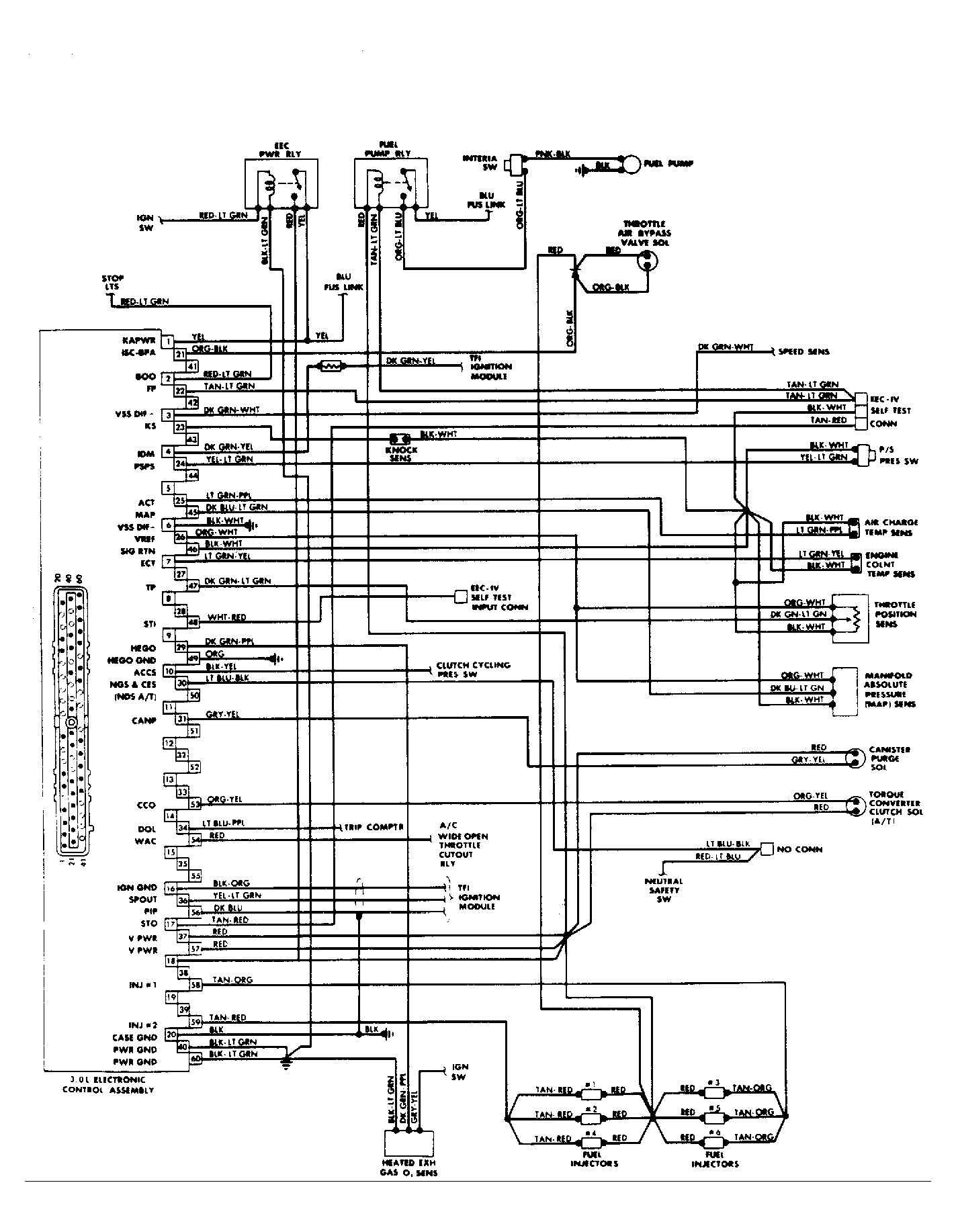

Fig 4: Aerostar 3.0L EFI EEC-IV Wiring Diagram

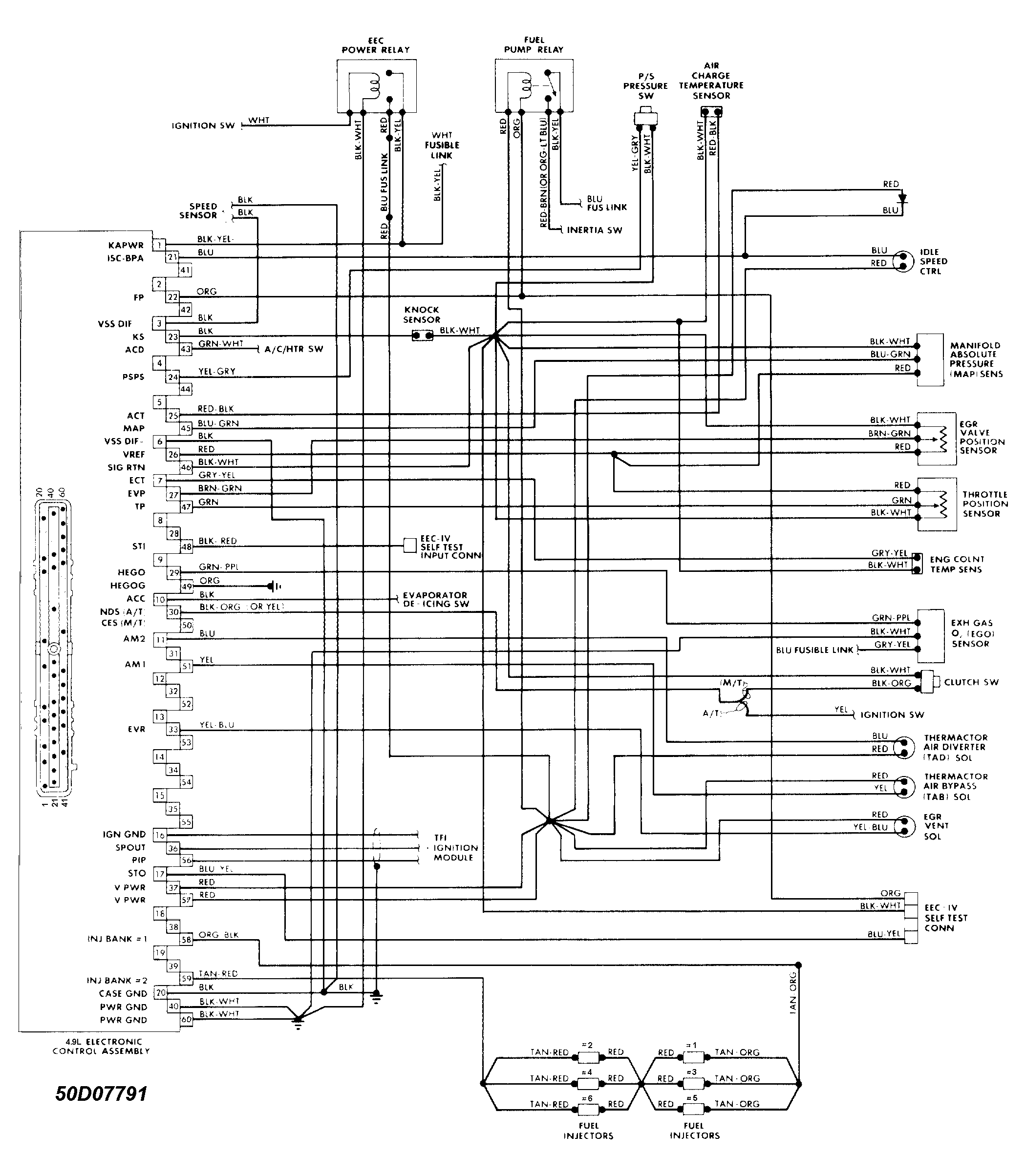

Fig 5: "E" Series 4.9L EFI EEC-IV Wiring Diagram

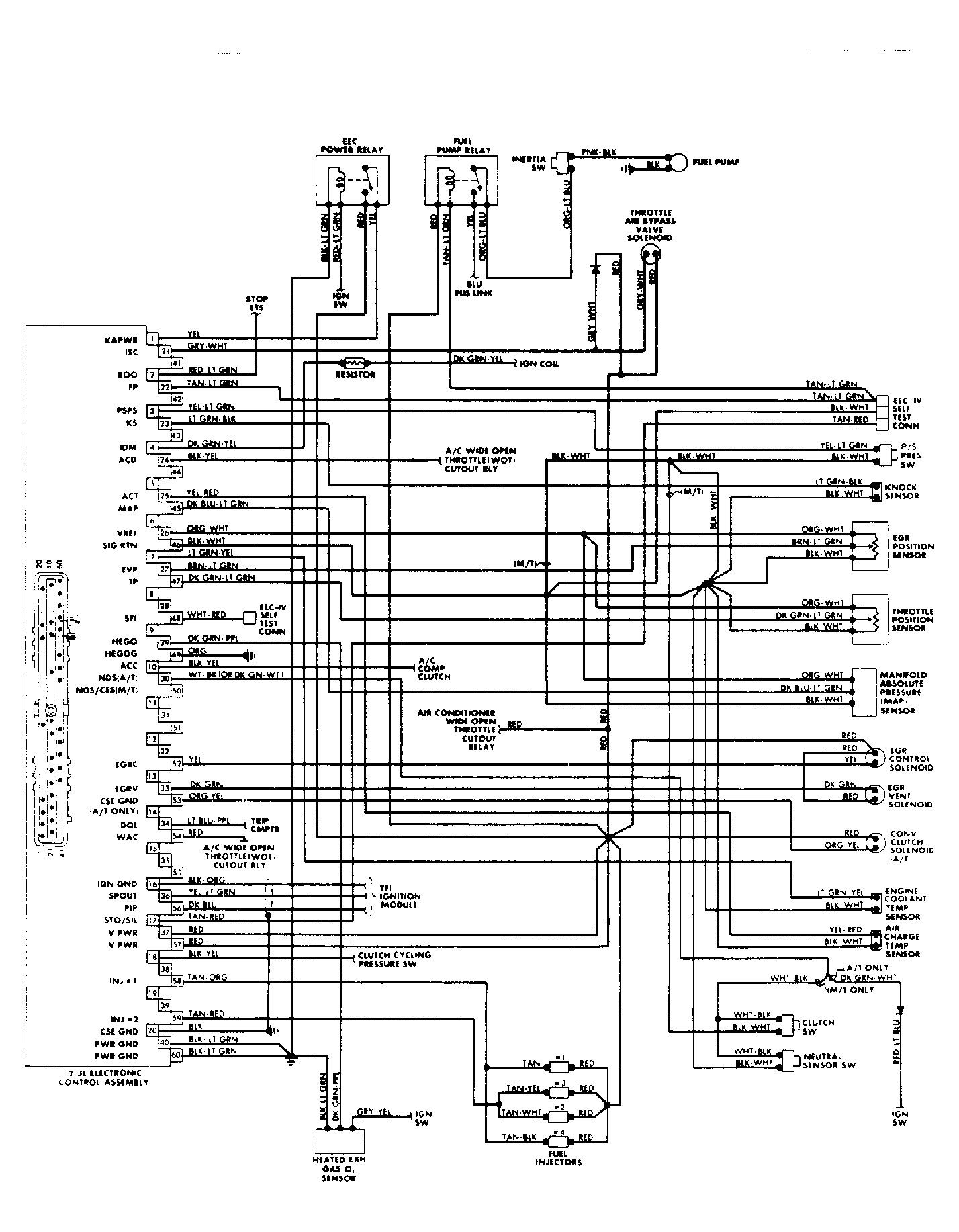

Fig 6: Bronco & "F" Series 4.9L EFI EEC-IV Wiring Diagram

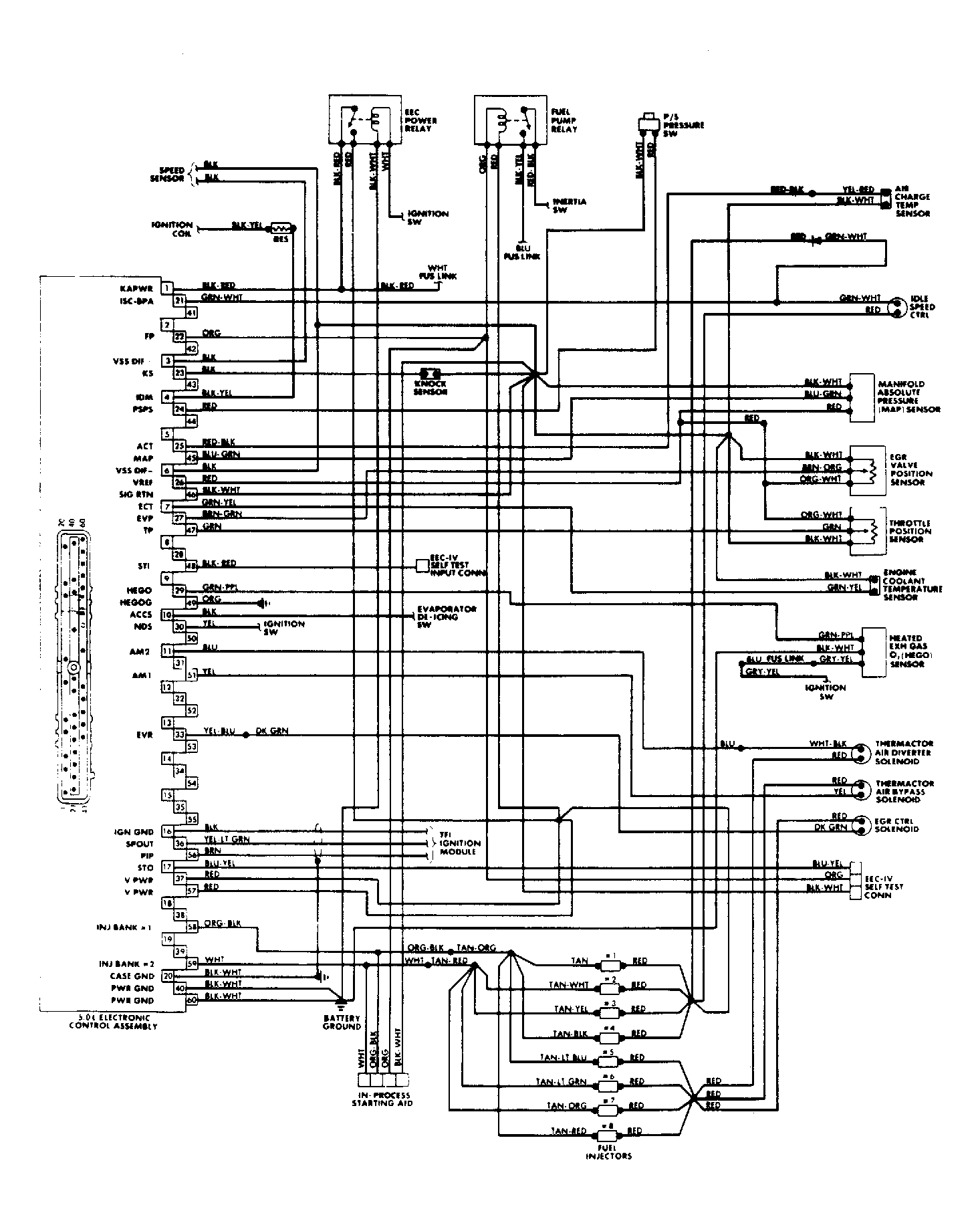

Fig 7: "E" Series 5.0L EFI EEC-IV Wiring Diagram

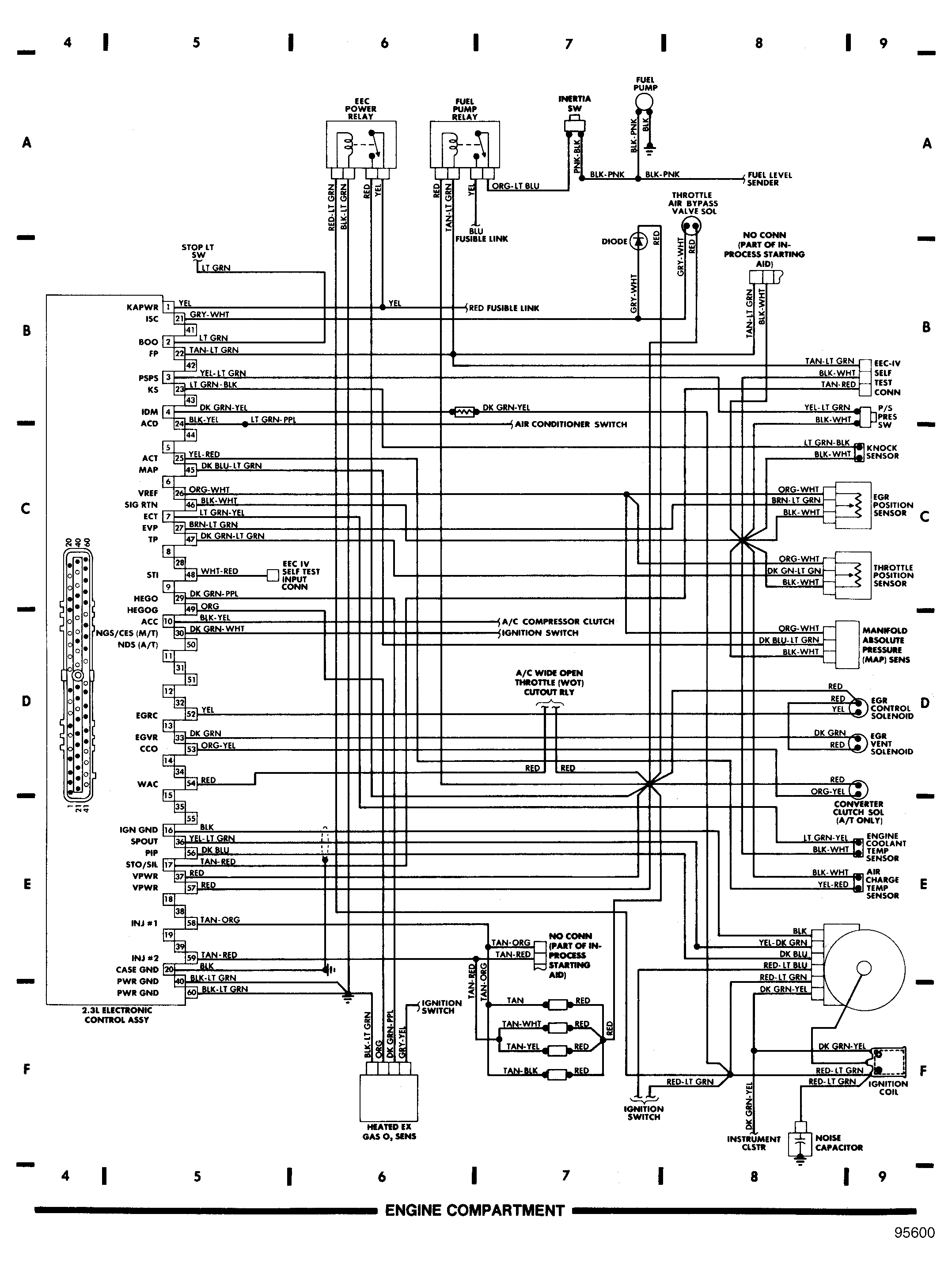

Fig 8: Bronco & "F" Series 5.0L EFI EEC-IV Wiring Diagram
