Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Fan Controller | On right side of dash, behind glove box. |

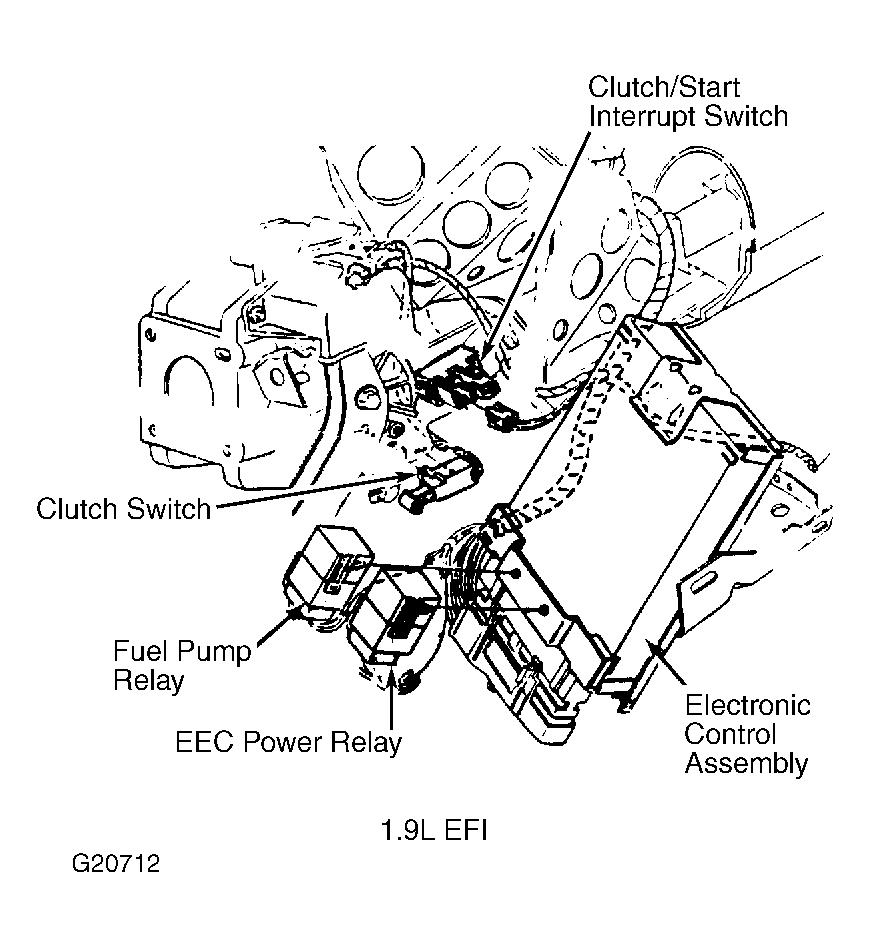

| Electronic Control Assembly(EFI) | Under left side of dash, above brake pedal. See Figure. |

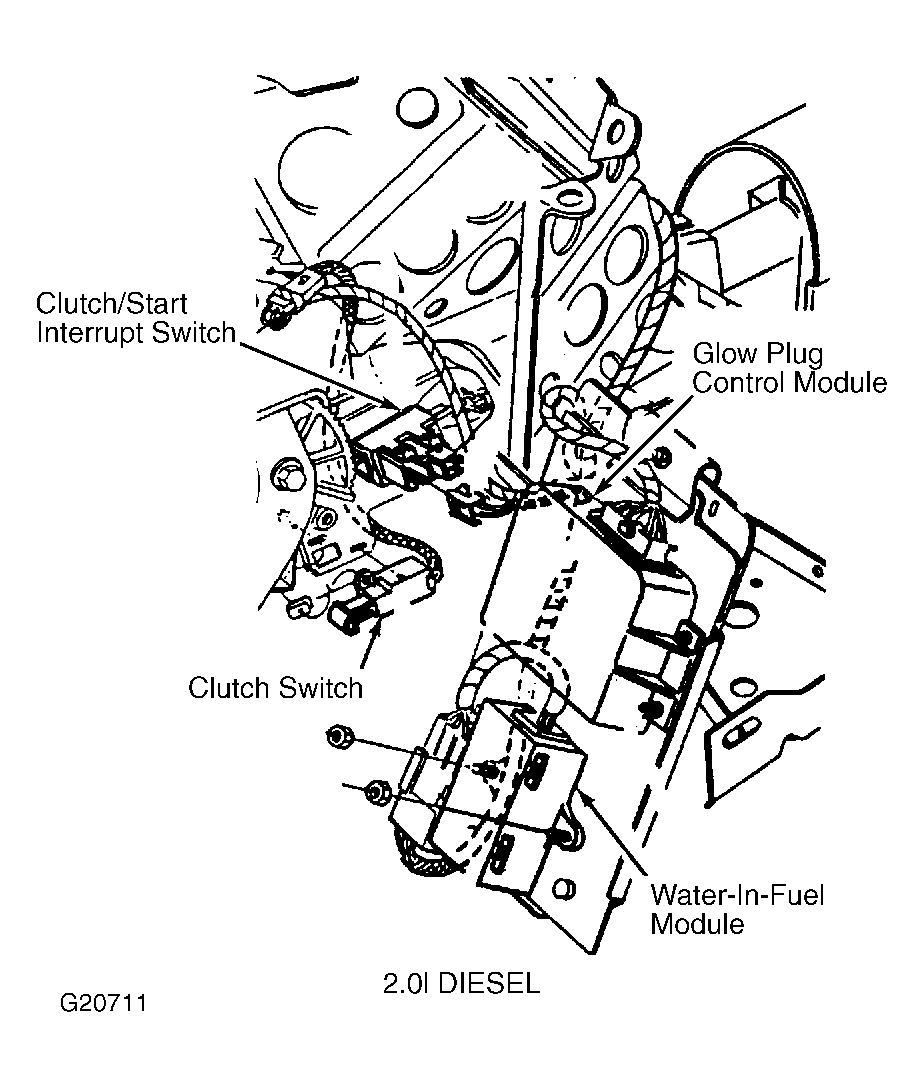

| Glow Plug Control Module (Diesel) | Behind dash, attached to left shake brace. See Figure. |
| Low Fuel Warning Module | Attached behind upper center of console. |
| Water-in-Fuel Module (Diesel) | Behind dash, attached to left shake brace. See Figure. |
