Engine Controls

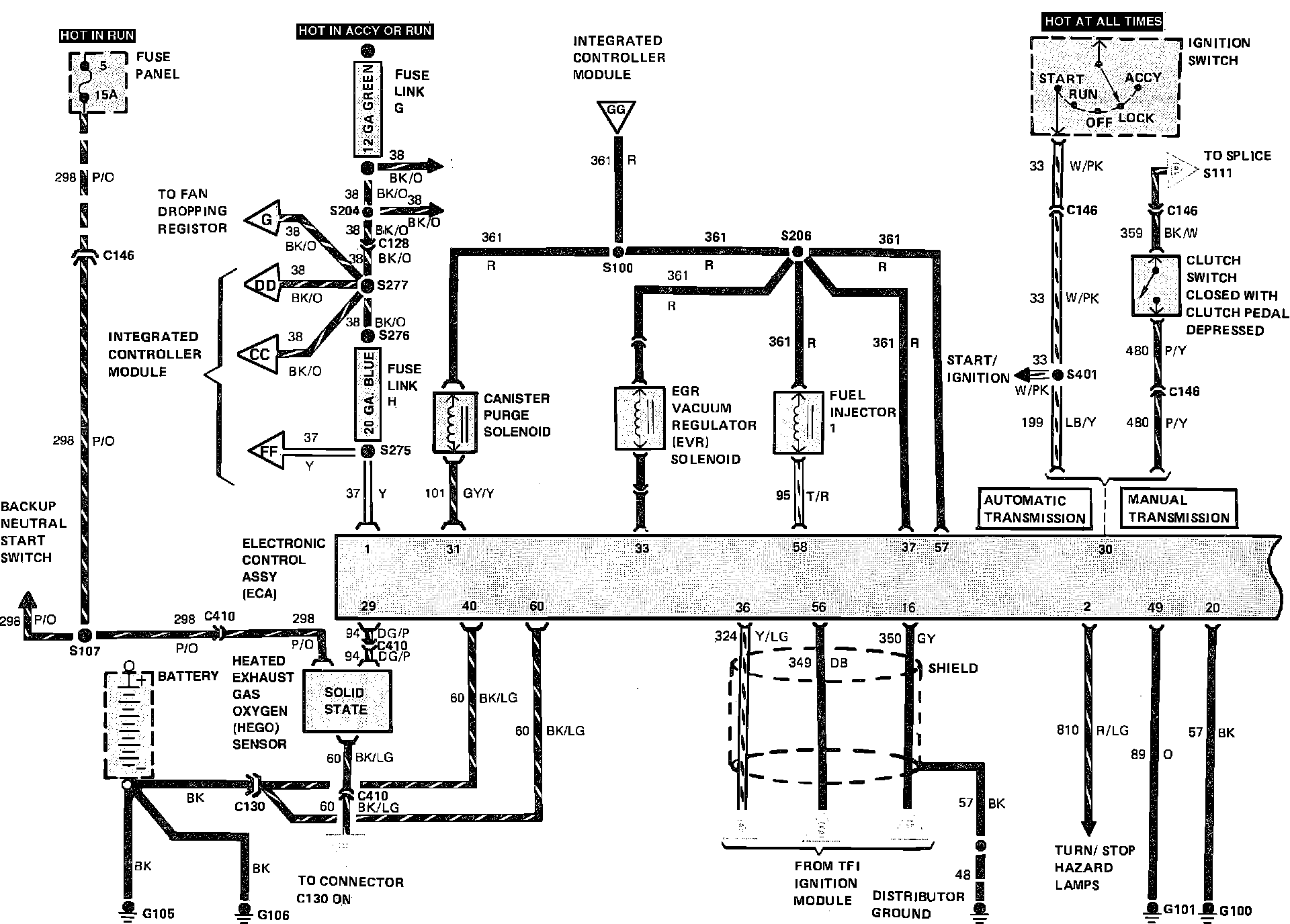

Wiring Diagram - Electronic Engine Control:

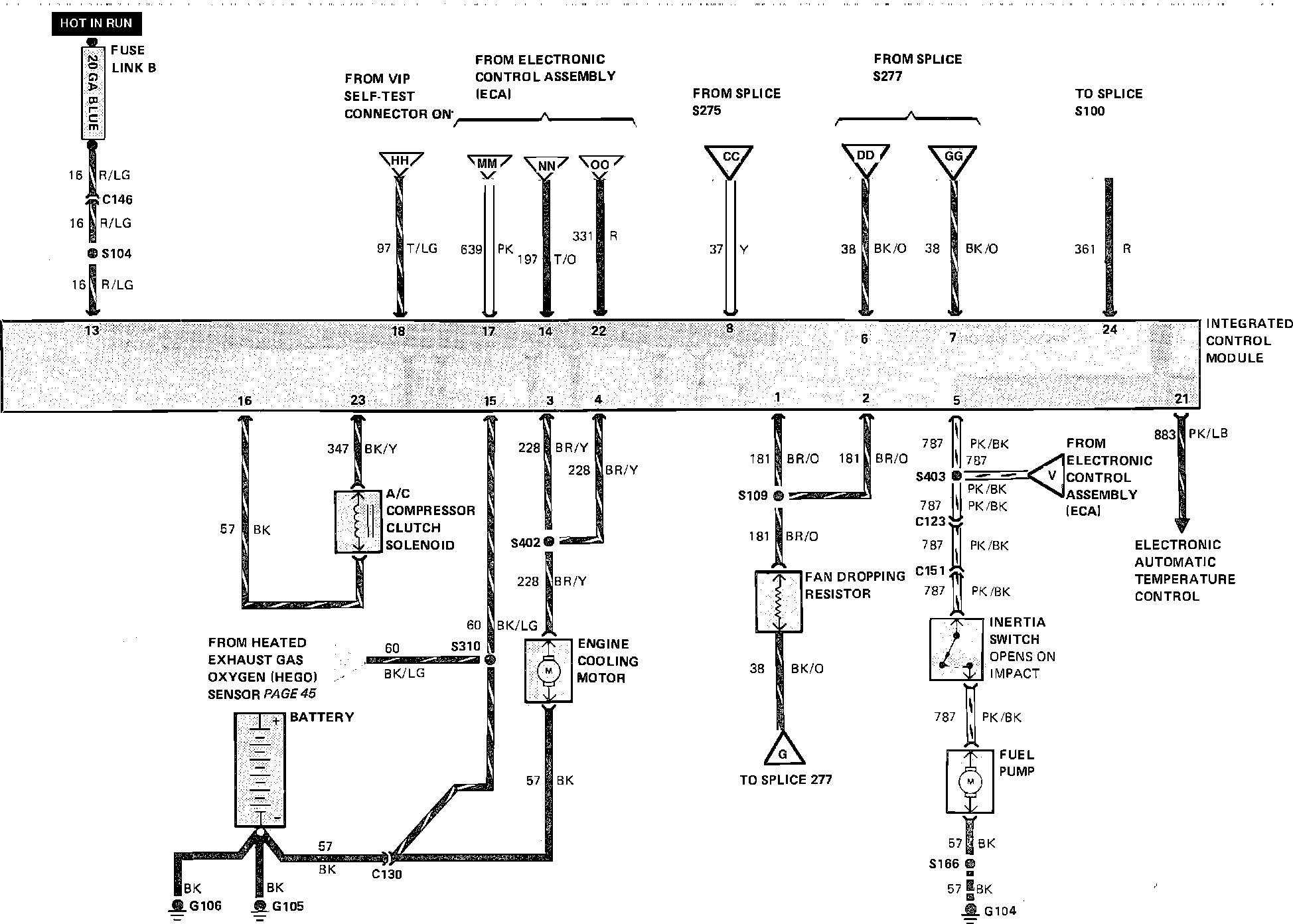

Wiring Diagram - Electronic Engine Control:

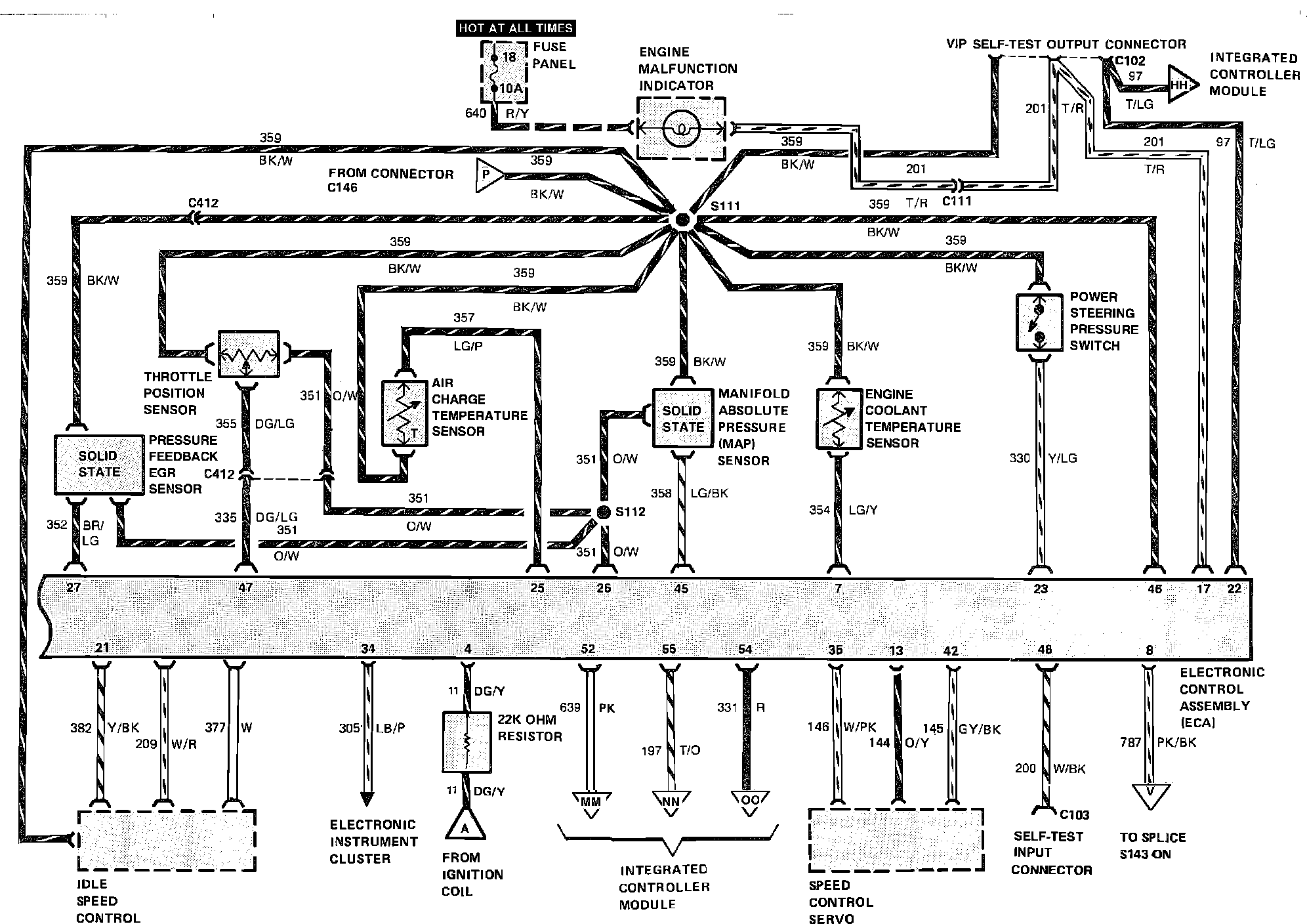

Wiring Diagram - Integrated Control Module:
