Crankshaft Position Sensor: Description and Operation

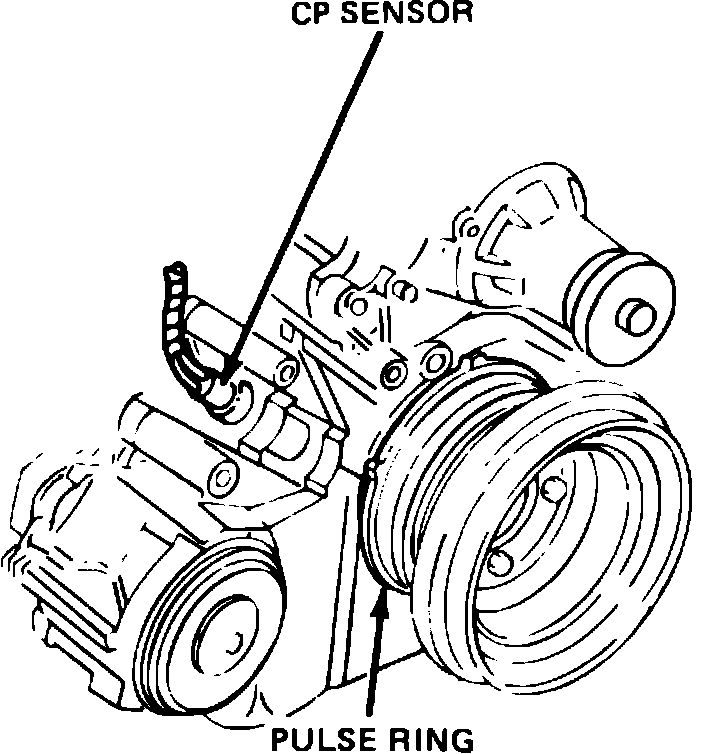

Fig. 4 Crankshaft position sensor & pulse ring:

The crankshaft position sensor and pulse ring assembly, transmits signals according to crankshaft position. The pulse ring, Fig. 4, is pressed onto the vibration damper.
