Blower Operates But Does Not Vary With Controls

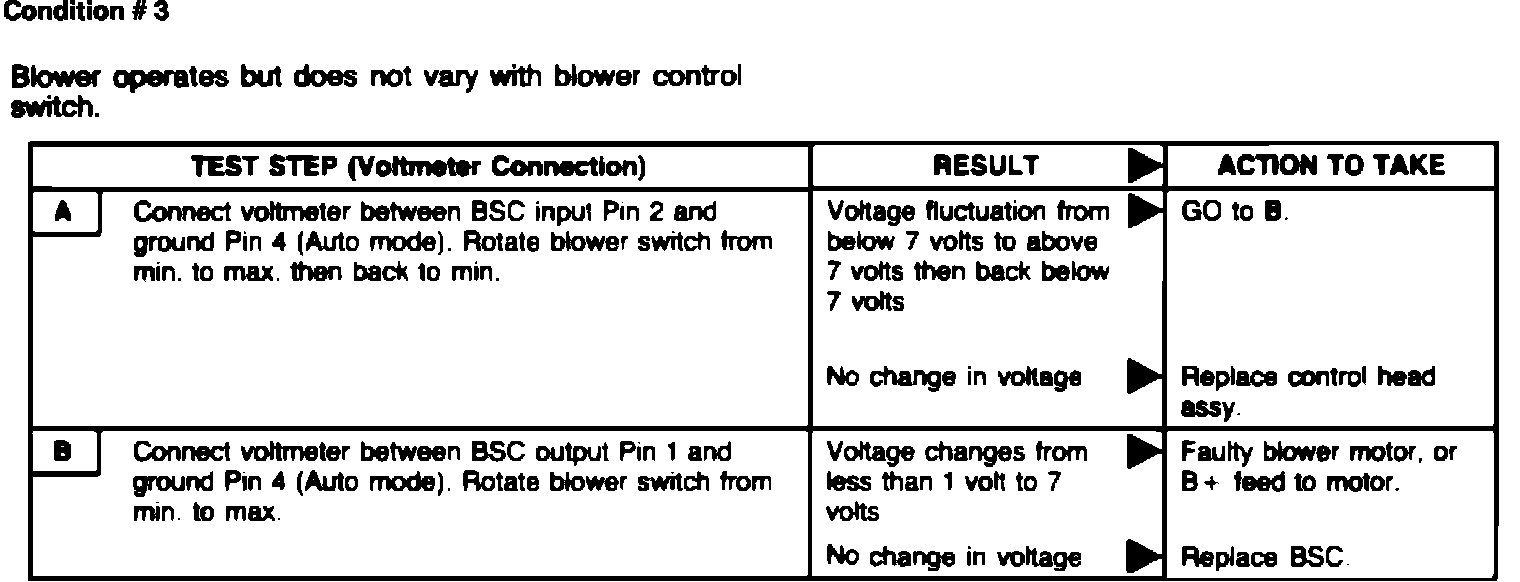

Fig. 64 Blower Operates But Does Not Vary With Controls:
