Ignition Control Module: Locations

V8-302/5.:

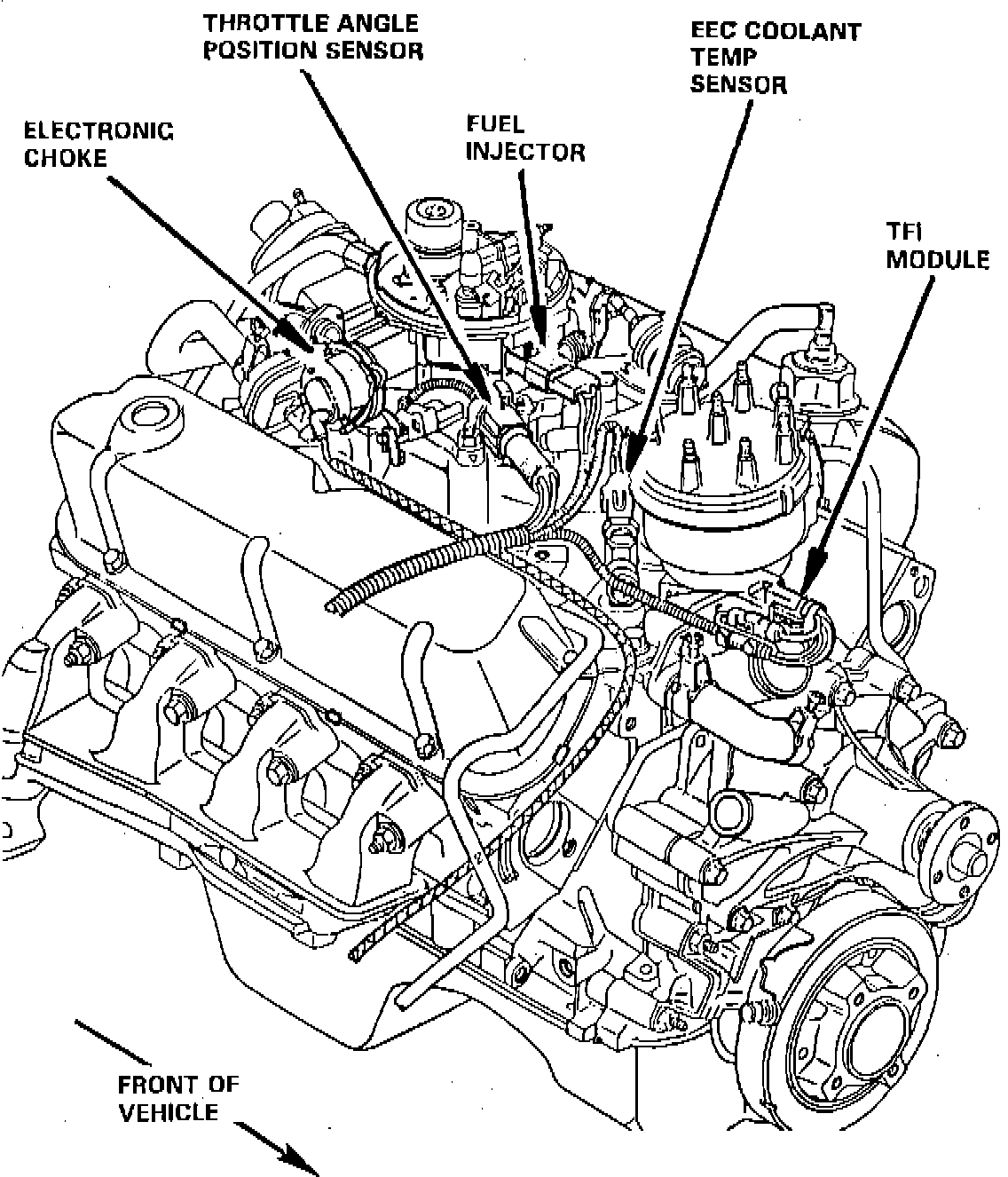

Side Of Distributor

Applicable to: 0L EEC IV engine wiring harness
