Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | On driver's door pillar. | |

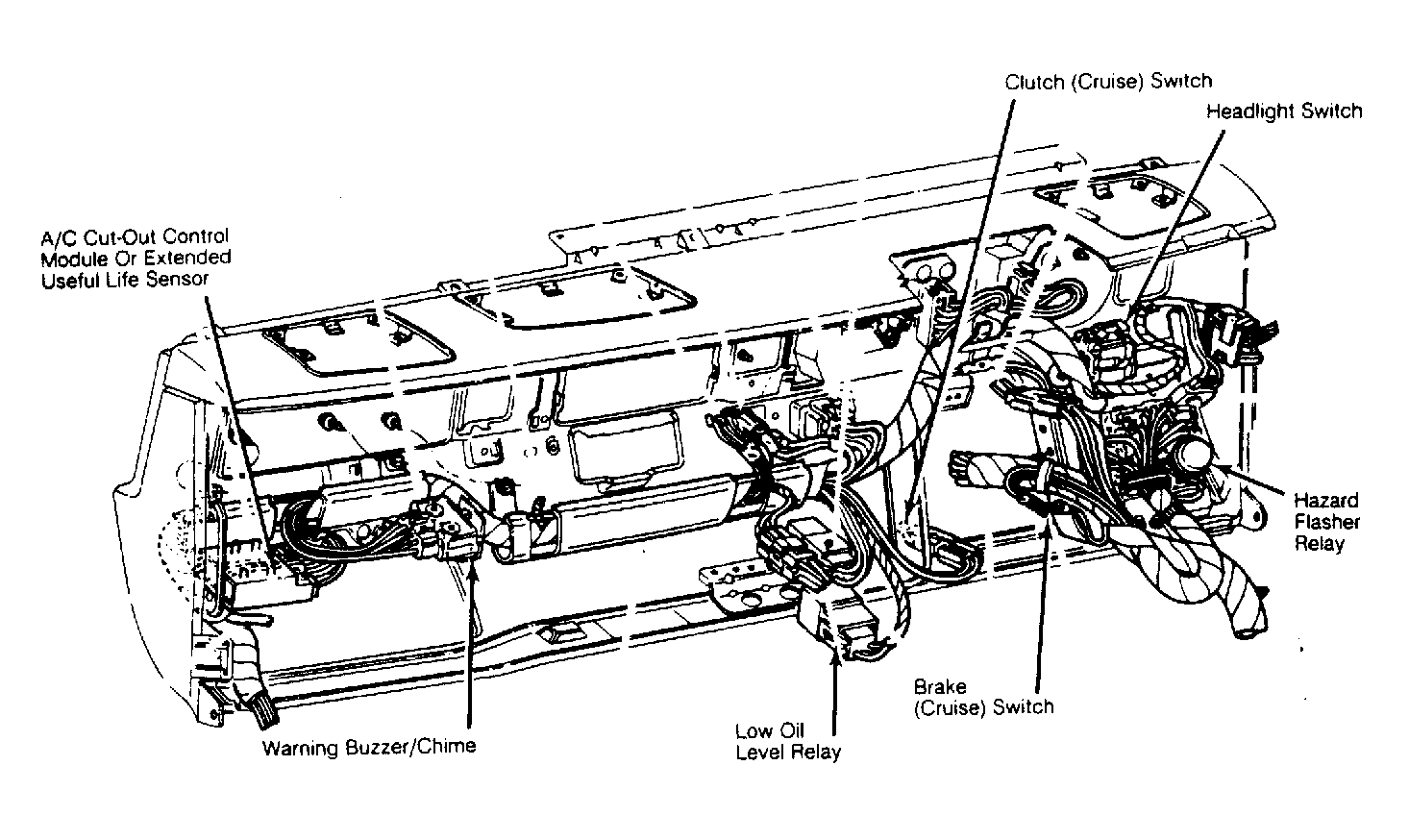

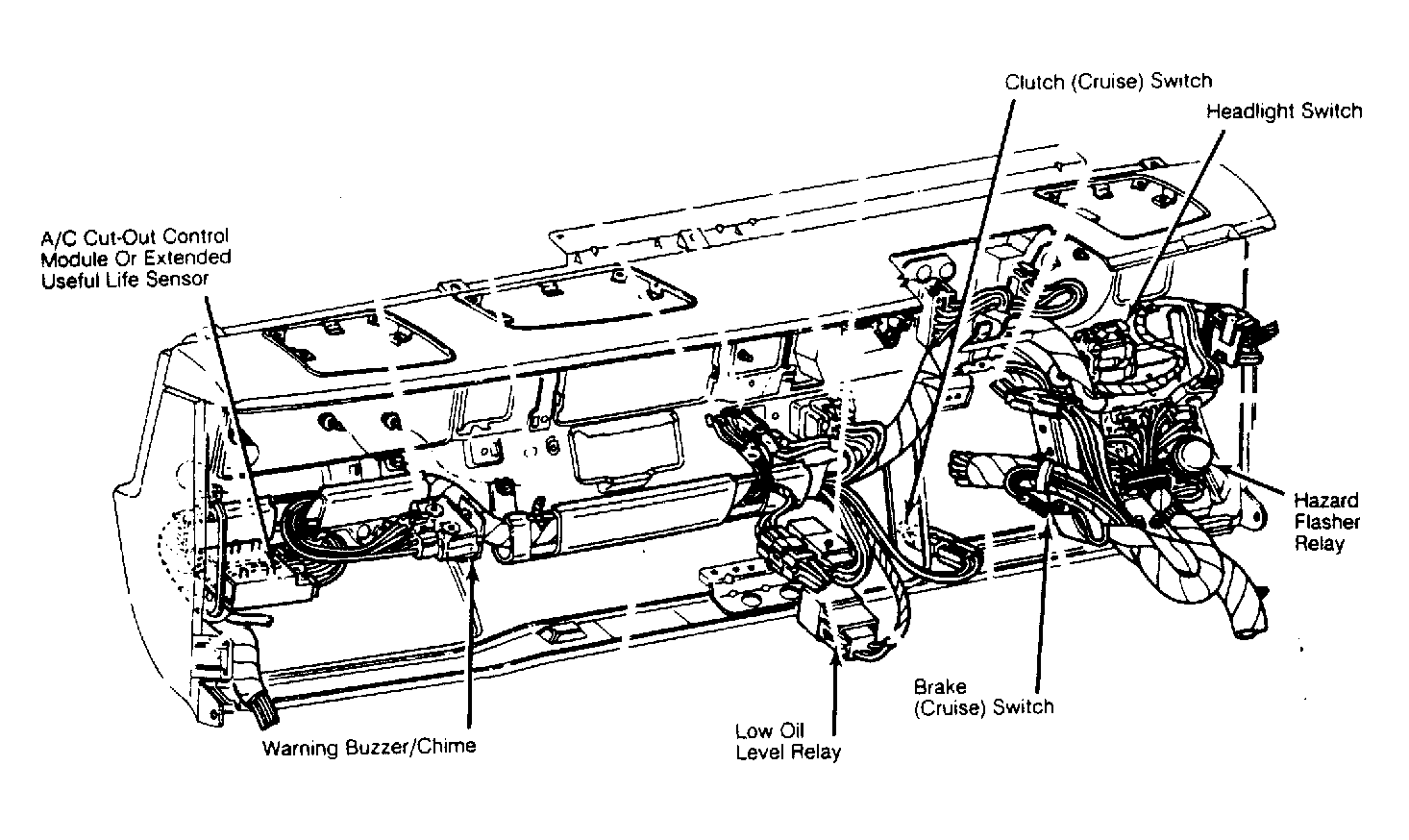

| A/C Cut-Out Control Module | Under right side of dash, behind glove box. See Figure . | |

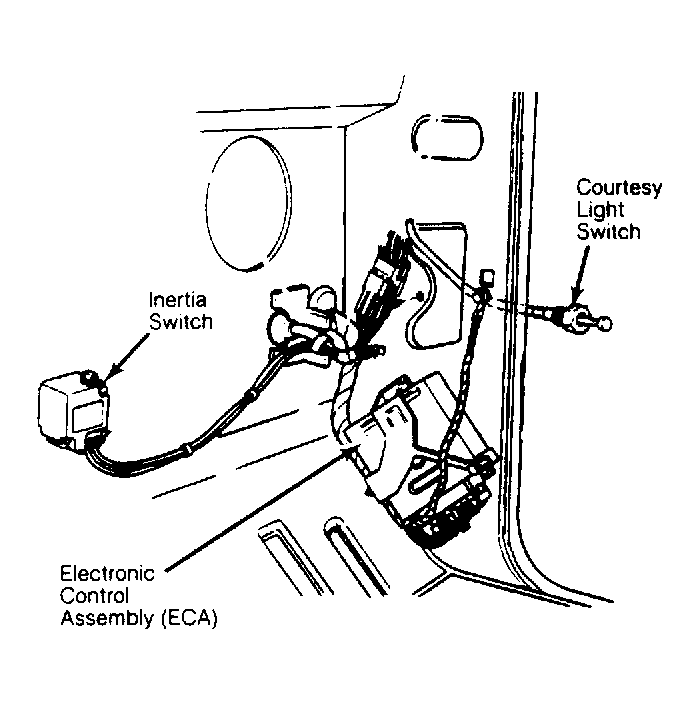

| Electronic Control Assembly (ECA - 2.3L & 2.9L) | Behind right kick panel. See Figure . | |
| Electronic Shift Control Module | Under left side of dash, next to speaker. | |

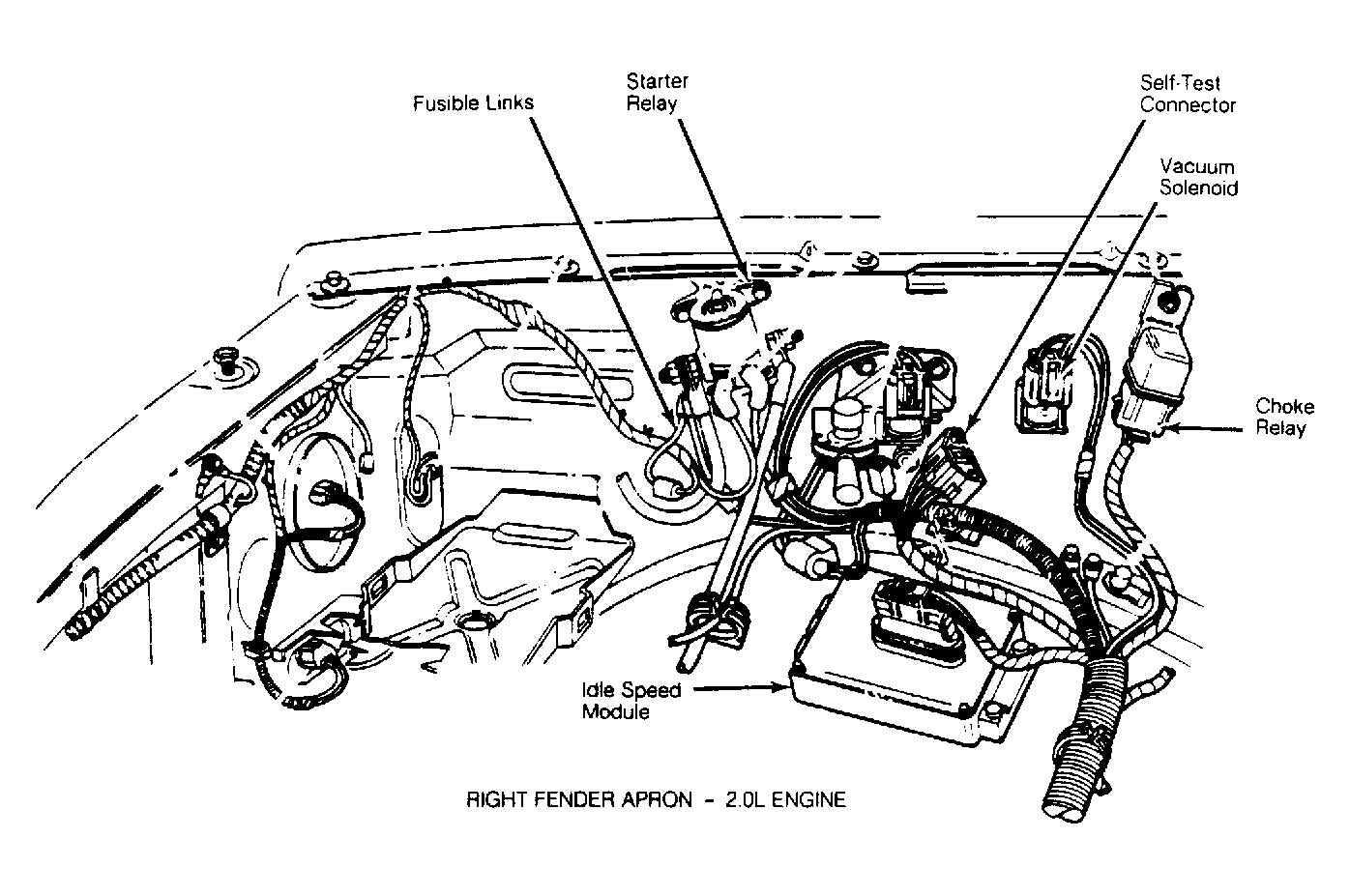

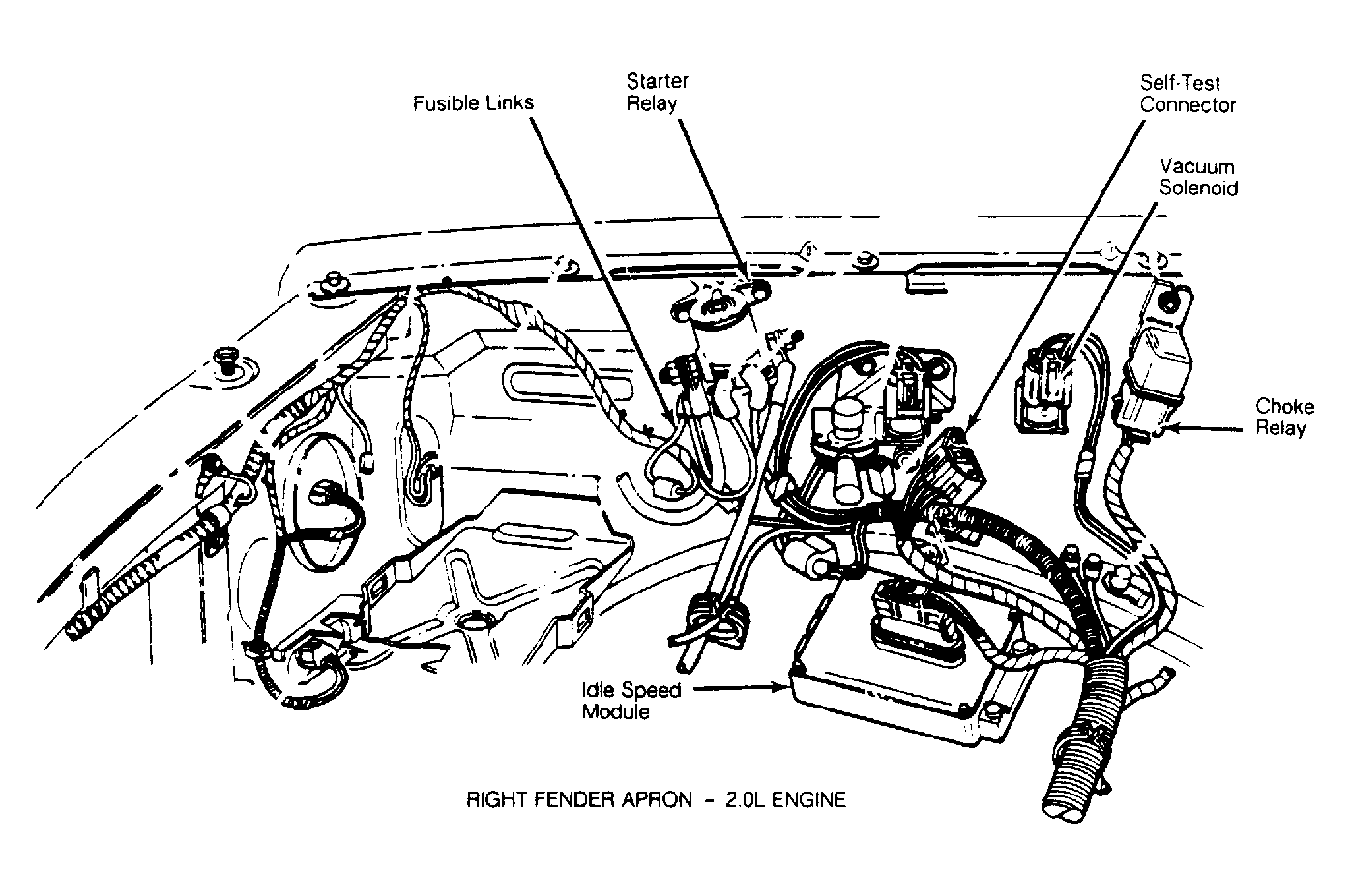

| Idle Speed Module (2.0L) | On right fender apron, below starter relay. See Figure . | |
| Ignition Module | ||
| 2.0L | On left fender apron. | |
| 2.3L & 2.9L | On base of distributor. | |
| Light Out Module | In floor console. | |
| Low Fuel Warning Module | In floor console. | |
| Speed Control Amplifier | Under dash, to right of steering column. | |
| Windshield Wiper Interval Governor | Under dash, on steering column support bracket. | |
