Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|

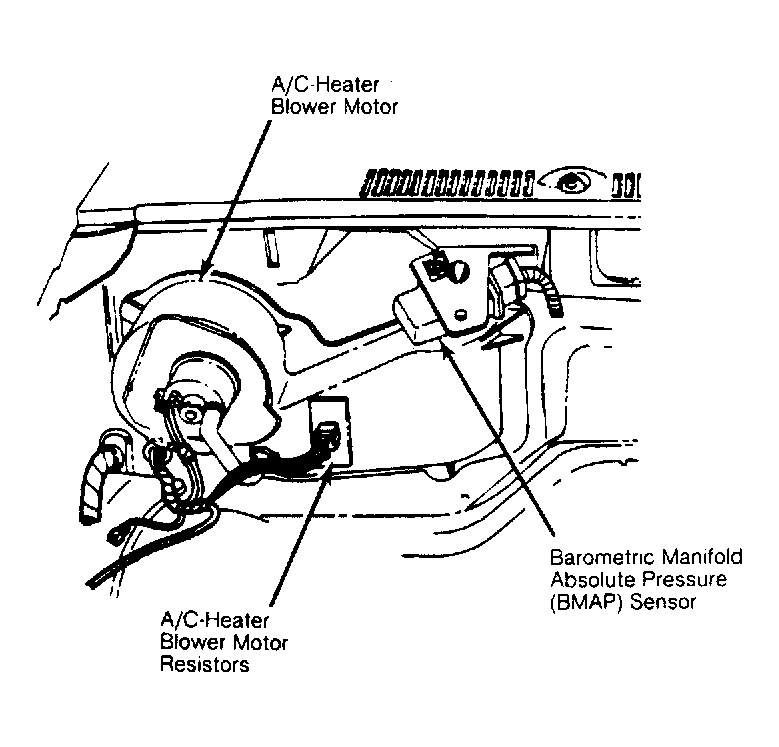

| A/C-Heater Blower Motor Resistors | On A/C-heater housing, near blower motor. See Figure . | |
| In-Line Diodes | ||
| A/C Clutch | In wiring harness, behind alternator. | |
| Cargo Light | Above left quarter window, behind dome light. | |
| Radio Noise Capacitor | On left fender apron, near ignition coil. | |

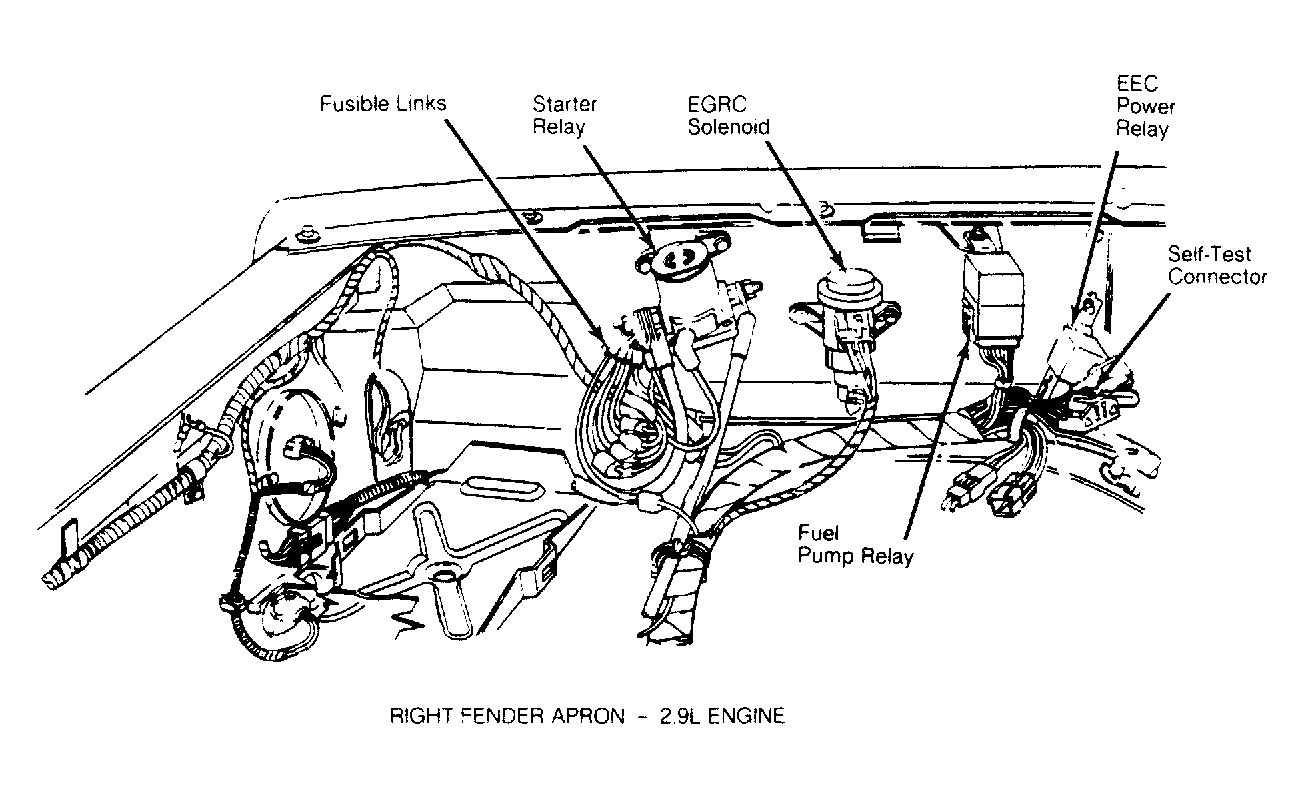

| Self-Test Connector | On right fender apron. See Figure -Figure . | |
| Speed Control Servo | On left fender apron. | |
| SPOUT Connector | Under battery box. | |
| Tank Selector Valve | On left frame rail. | |
