Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor | In engine bay, on right side of firewall. See Figure . |
| Electronic Shift Motor | On side of transfer case. |
| High Pressure Fuel Pump | On left frame rail. |
| Idle Speed Control Motor (2.0L) | On right side of carburetor. |
| Lumbar Seat Vacuum Pump/Motor | Beneath front seats. |
| Power Mirror Motor | In mirror assembly. |

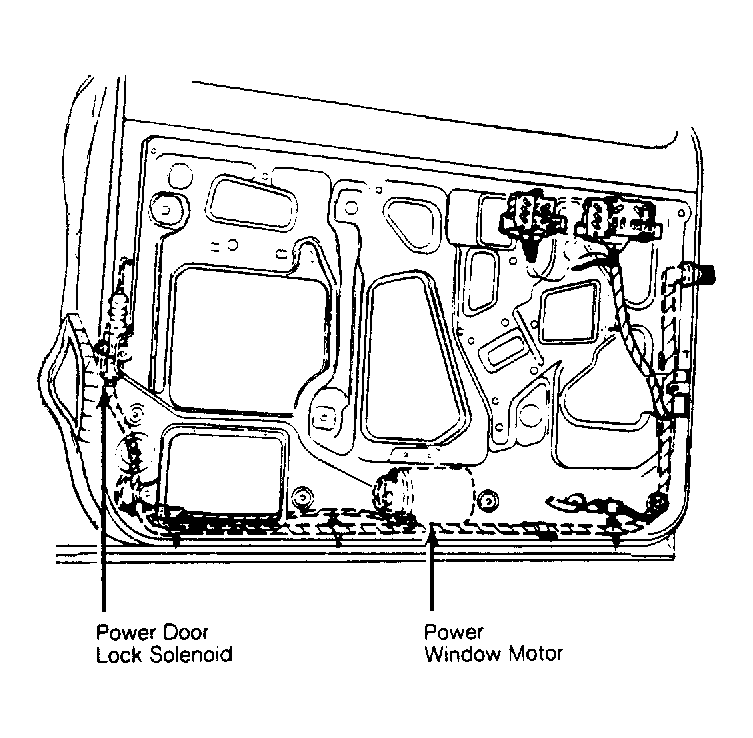

| Power Window Motor | In bottom of each door. See Figure . |
| Liftgate Lock Motor | In center of liftgate. |
| Liftgate Washer Pump | On right rear quarter panel. |
| Liftgate Wiper Motor | In top center of liftgate. |
| Windshield Washer Pump | On bottom of windshield washer reservoir. |
| Windshield Wiper Motor | In engine bay, on center of firewall. |
