Wiring Diagrams

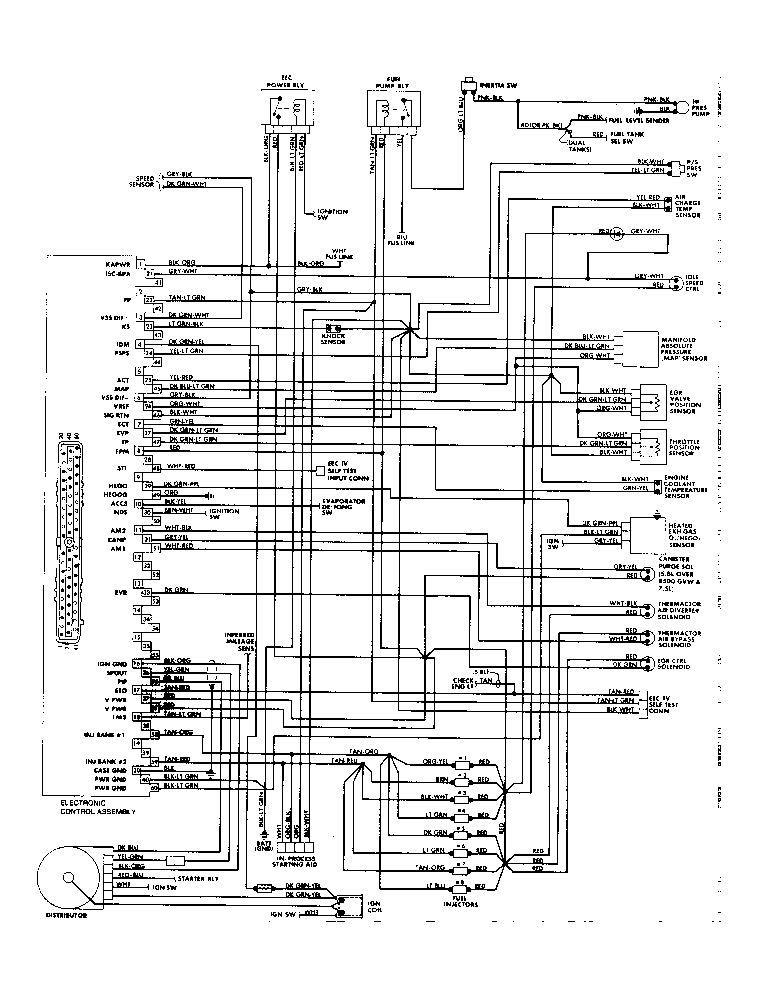

Fig 1: 2.3L MPFI EEC-IV Wiring Diagram (Ranger)

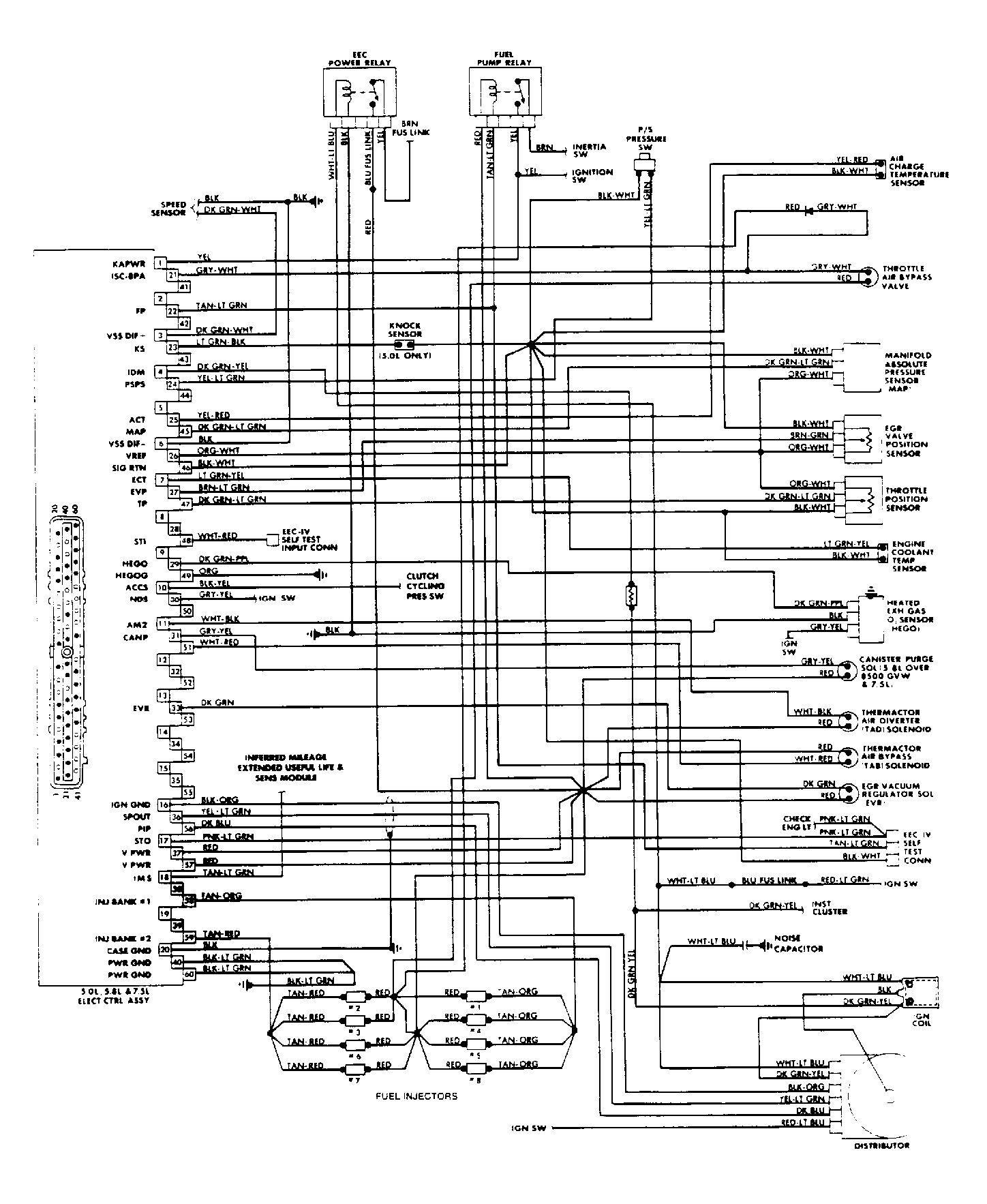

Fig 2: 5.0L, 5.8L & 7.5L EEC-IV Wiring Diagram (Econoline Vans)

Fig 3: 5.0L, 5.8L & 7.5L EEC-IV Wiring Diagram (Bronco & F150/350)

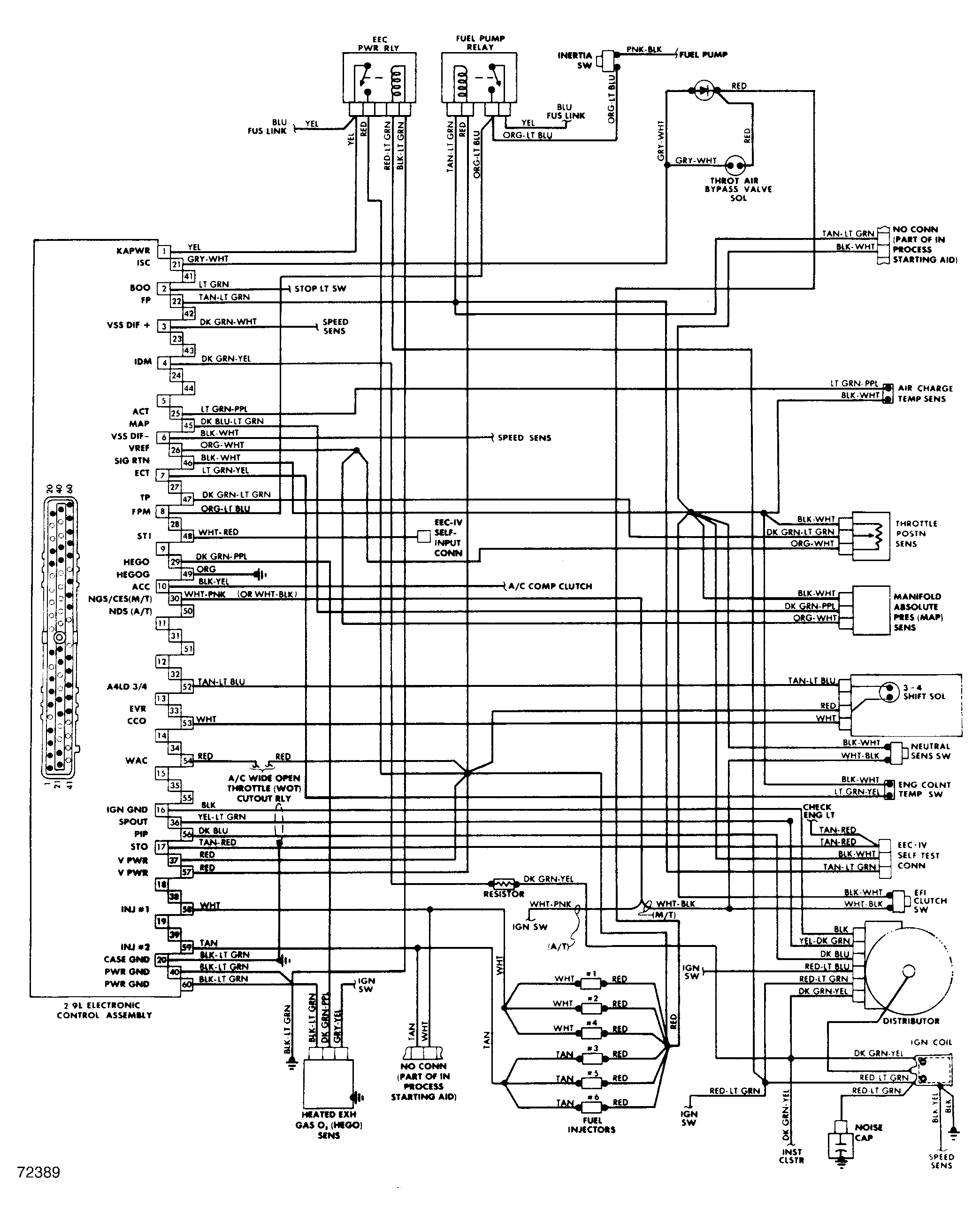

Fig 4: 2.9L MPFI EEC-IV Wiring Diagram (Bronco II & Ranger)

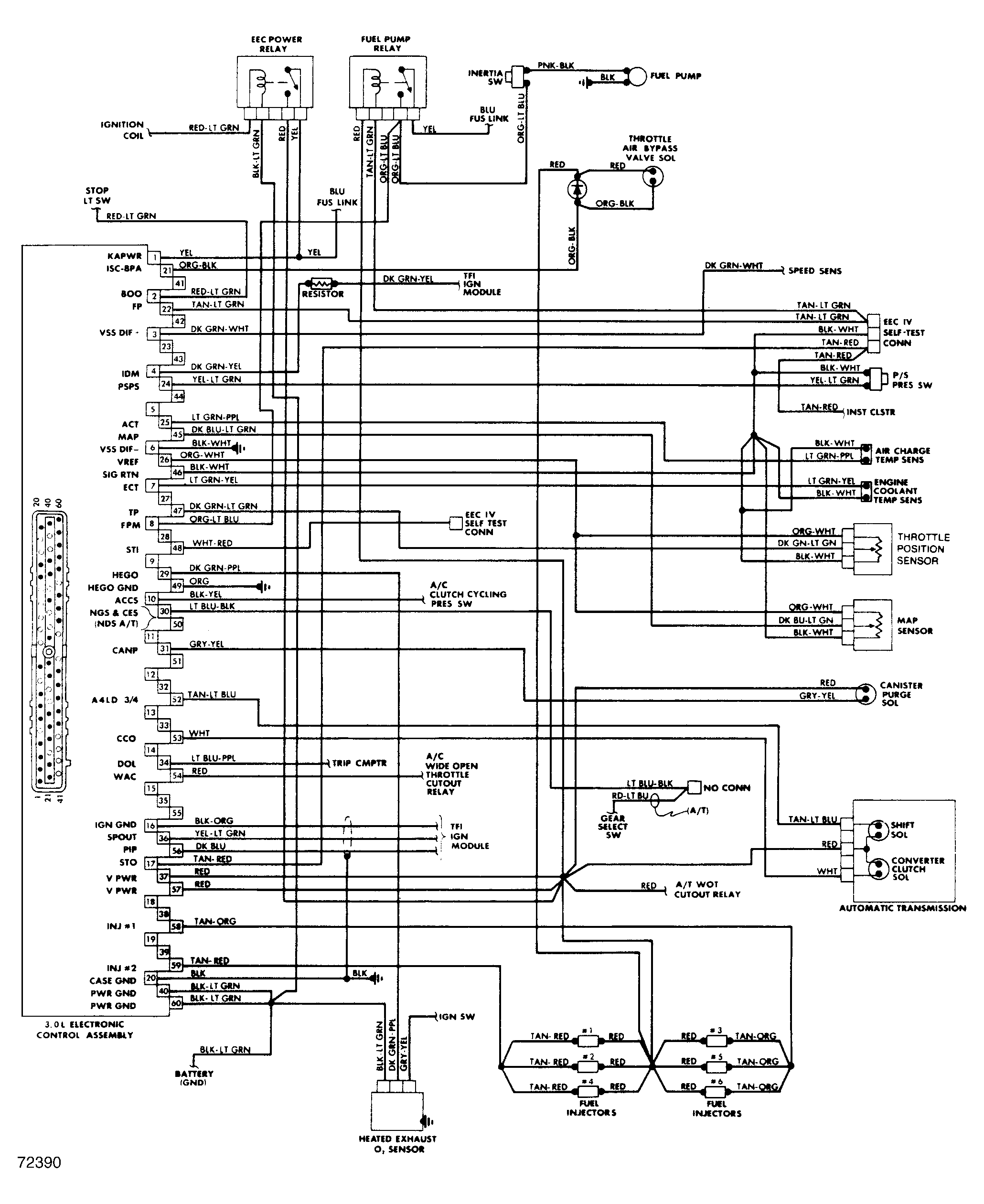

Fig 5: 3.0L MPFI EEC-IV Wiring Diagram (Aerostar)

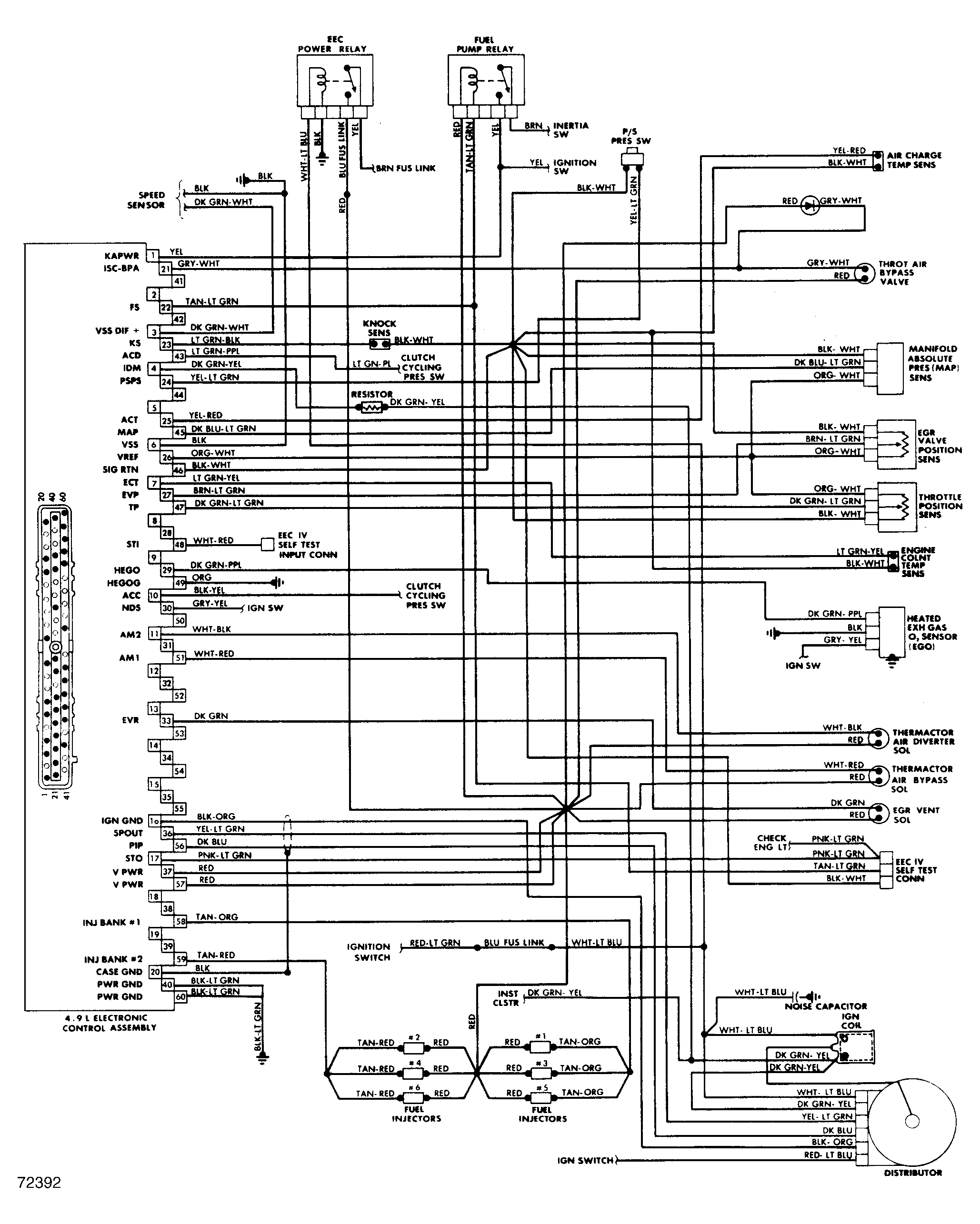

Fig 6: 4.9L EEC-IV Wiring Diagram (Bronco & F150/350)

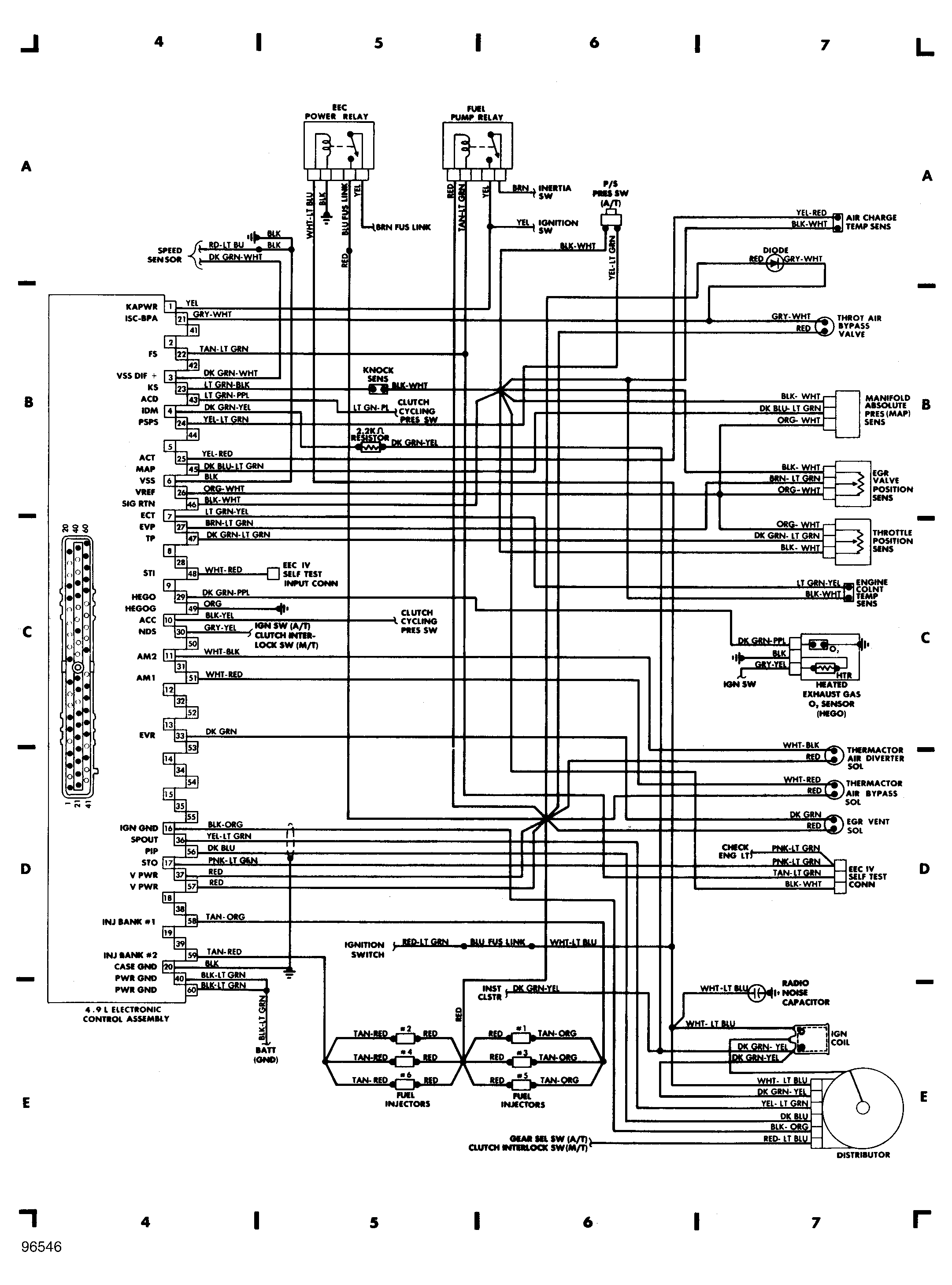

Fig 7: 4.9L EEC-IV Wiring Diagram (Econoline Vans)

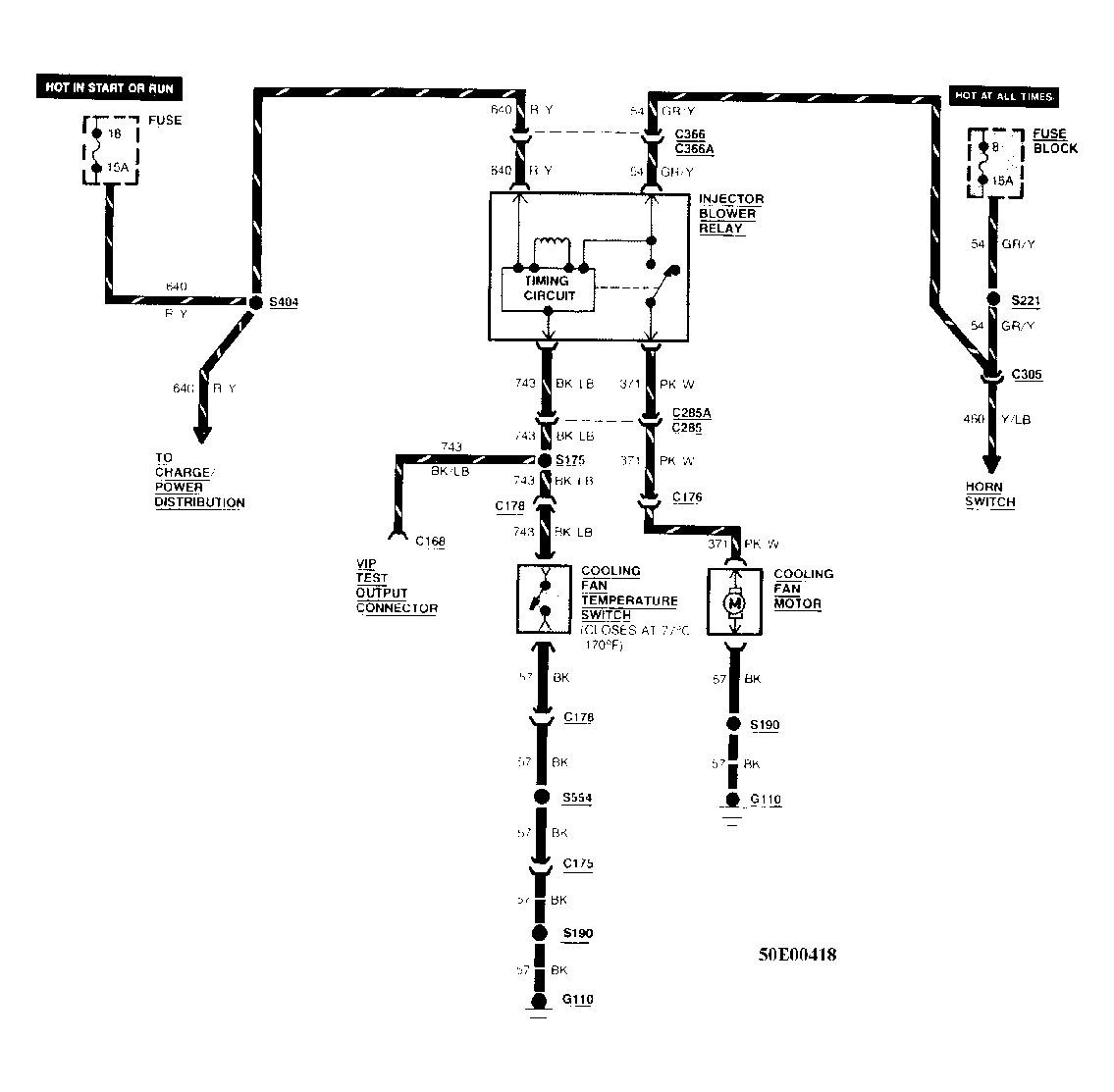

Fig 8: 4.9L Injector Blower Wiring Diagram (Econoline Vans)
