Ranger - 2WD

WHEEL ALIGNMENT SPECIFICATIONS (RANGER - 2WD)

Application Specification
Ride Height in Inches 3 1/4
Adjustment Procedures See Figure
Camber in Degrees (Fraction) -1/2 +/- 3/4
Camber in Degrees (Decimal) -0.5 +/- 0.75
Caster in Degrees (Fraction) 6 +/- 1 1/2
Caster in Degrees (Decimal) 6.0 +/- 1.50
Toe-In in Inches (Fraction) 1/32
Toe-In in Inches (Decimal) 0.031
Toe-In in Degrees (Fraction) 1/16
Toe-In in Degrees (Decimal) 0.063
Toe-Out on Turns (1)

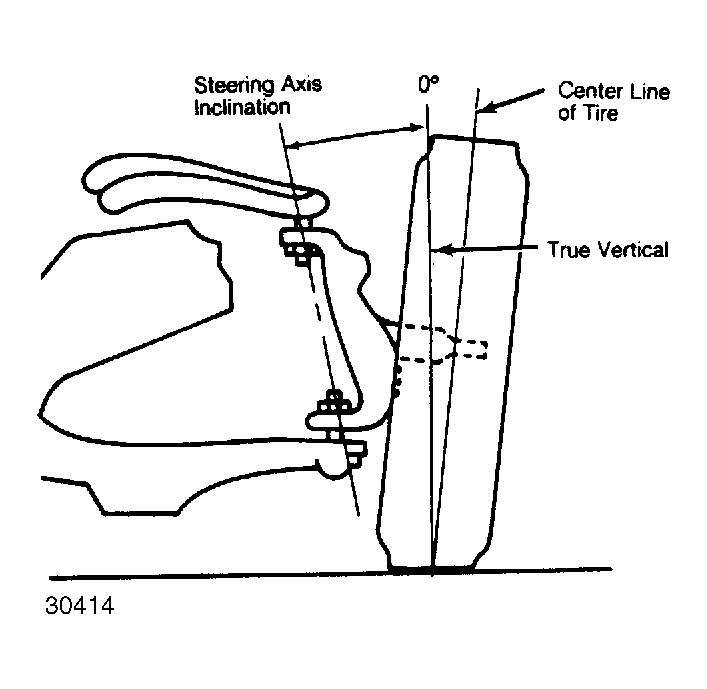

Steering Axis Inclination (SAI) (1)
Ride Height in Inches 3 1/2
Adjustment Procedures See Figure
Camber in Degrees (Fraction) 1/2 +/- 3/4
Camber in Degrees (Decimal) 0.5 +/- 0.75
Caster in Degrees (Fraction) 5 +/- 1 1/2
Caster in Degrees (Decimal) 5.0 +/- 1.50
Toe-In in Inches (Fraction) 1/32
Toe-In in Inches (Decimal) 0.031
Toe-In in Degrees (Fraction) 1/16
Toe-In in Degrees (Decimal) 0.063
Toe-Out on Turns (1)
Steering Axis Inclination (SAI) (1)
Ride Height in Inches 3 3/4
Adjustment Procedures See Figure
Camber in Degrees (Fraction) 1 +/- 3/4
Camber in Degrees (Decimal) 1.0 +/- 0.75
Caster in Degrees (Fraction) 4 1/2 +/- 1 1/2
Caster in Degrees (Decimal) 4.50 +/- 1.50
Toe-In in Inches (Fraction) 1/32
Toe-In in Inches (Decimal) 0.031
Toe-In in Degrees (Fraction) 1/16
Toe-In in Degrees (Decimal) 0.063
Toe-Out on Turns (1)
Steering Axis Inclination (SAI) (1)
Ride Height in Inches 4
Adjustment Procedures See Figure
Camber in Degrees (Fraction) 1 1/2 +/- 3/4
Camber in Degrees (Decimal) 1.50 +/- 0.75
Caster in Degrees (Fraction) 3 7/8 +/- 1 1/2
Caster in Degrees (Decimal) 3.88 +/- 1.50
Toe-In in Inches (Fraction) 1/32
Toe-In in Inches (Decimal) 0.031
Toe-In in Degrees (Fraction) 1/16
Toe-In in Degrees (Decimal) 0.063
Toe-Out on Turns (1)
Steering Axis Inclination (SAI) (1)
Ride Height in Inches 4 1/4
Adjustment Procedures See Figure
Camber in Degrees (Fraction) 2 1/2 +/- 3/4
Camber in Degrees (Decimal) 2.50 +/- 0.75
Caster in Degrees (Fraction) 3 3/4 +/- 1 1/2
Caster in Degrees (Decimal) 3.75 +/- 1.50
Toe-In in Inches (Fraction) 1/32
Toe-In in Inches (Decimal) 0.031
Toe-In in Degrees (Fraction) 1/16
Toe-In in Degrees (Decimal) 0.063
Toe-Out on Turns (1)
Steering Axis Inclination (SAI) (1)
(1) Information not available.
