Ford
>>
1988
>>
Escort EXP Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.9L EEC IV Testing
>>
Wiring Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagrams

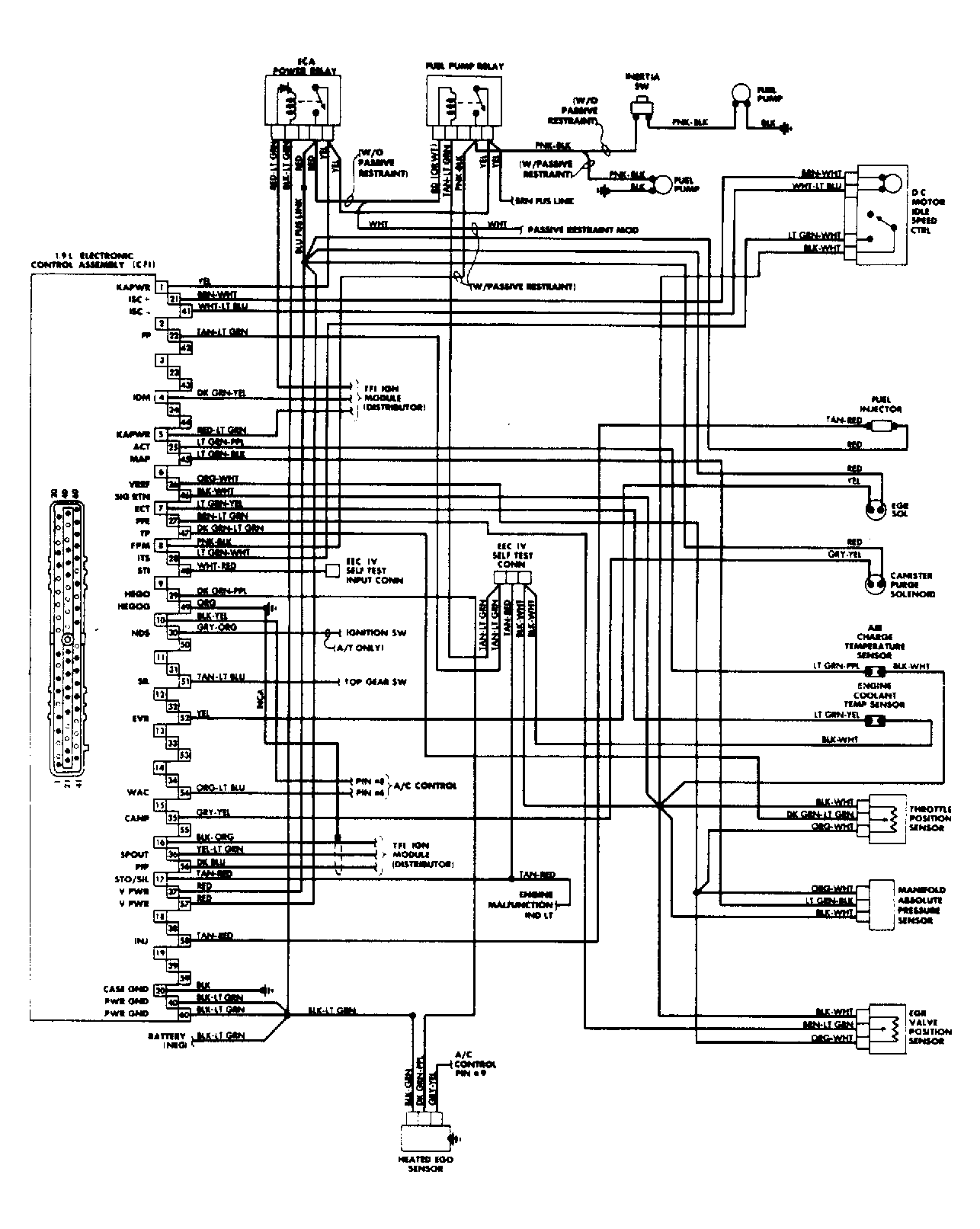

Fig 1: 1.9L CFI EEC-IV Wiring Diagram

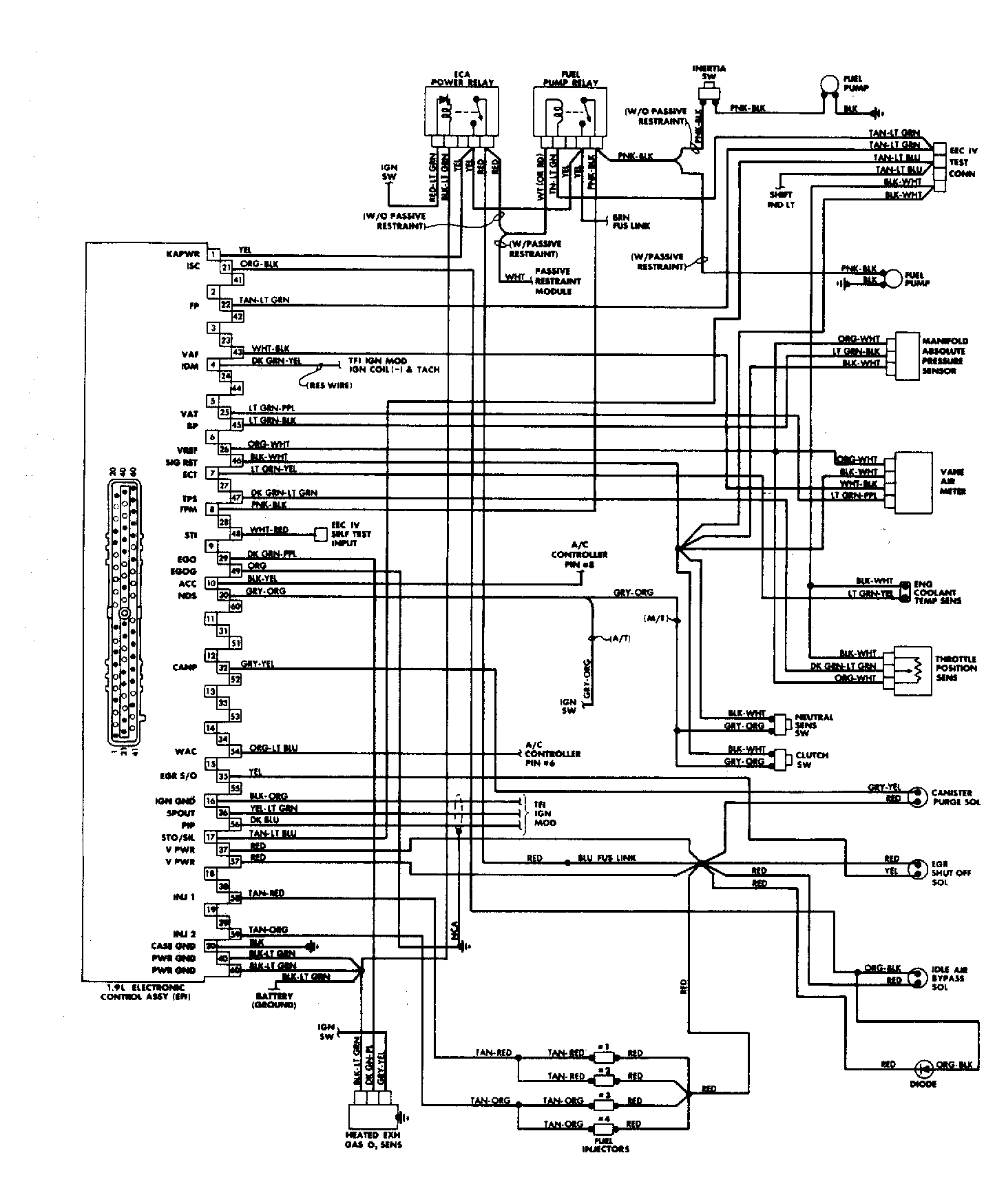

Fig 2: 1.9L MPFI EEC-IV Wiring Diagram
