Home
>>
Ford
>>
1988
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Manual Transmission
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With Manual Transmission

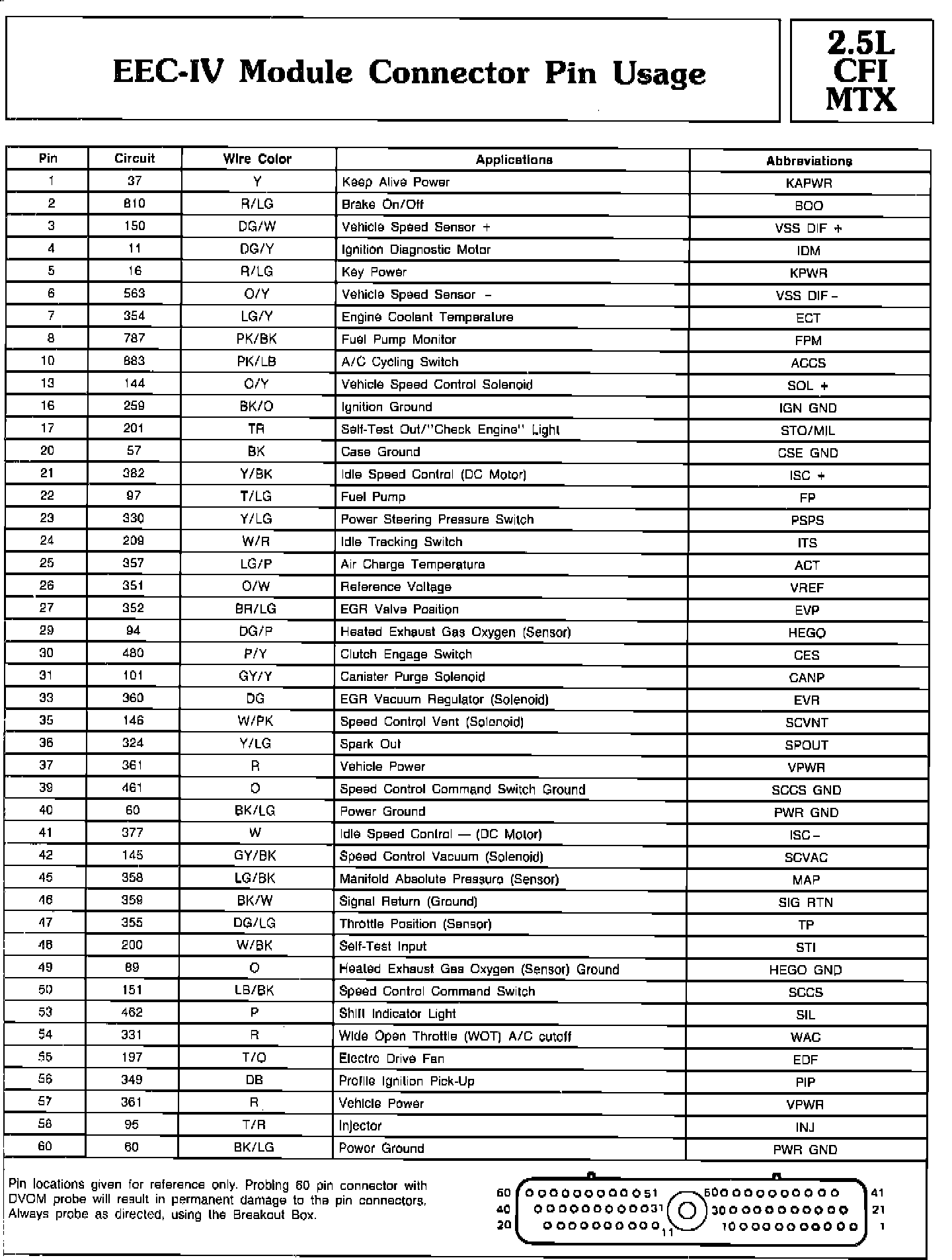

Pin Usage - EEC-IV Module:
