KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB1 - KB2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
KB1 - KB2

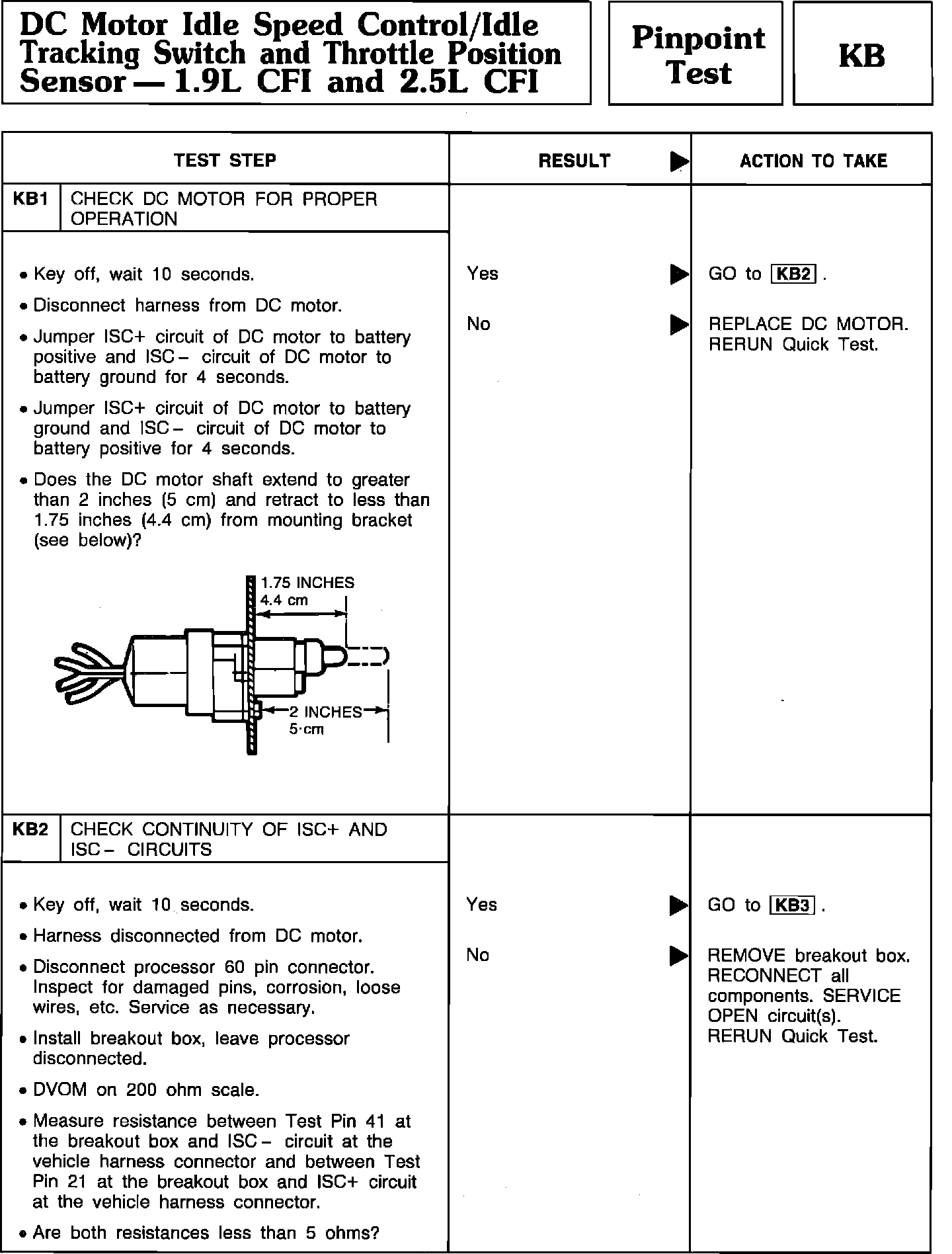

Pinpoint Test KB1 & KB2 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
