KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB21 - KB24
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
KB21 - KB24

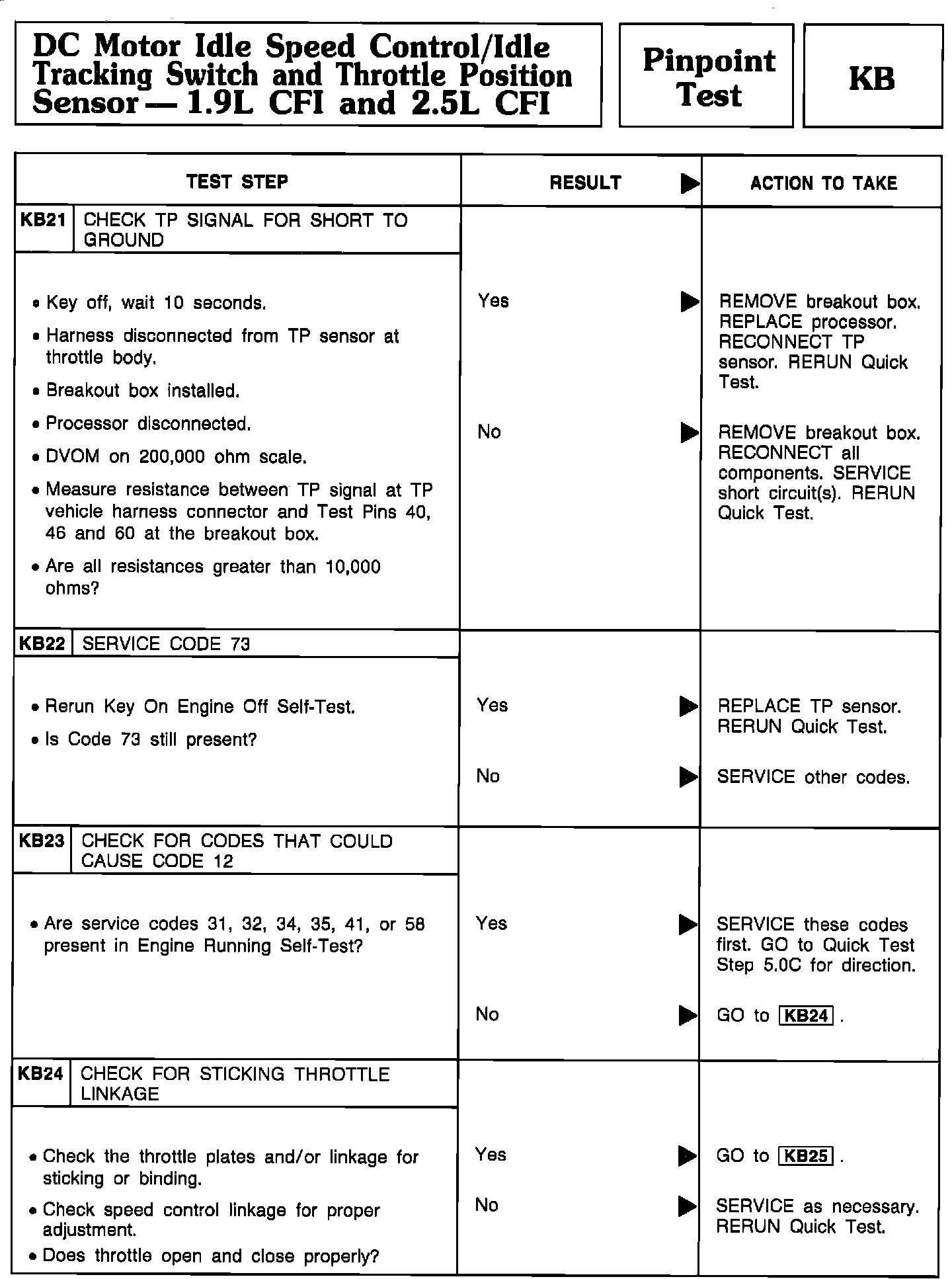

Pinpoint Test KB21 Thru KB24 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
