Fuel Charging Assembly: Reassembly

  1. Install fuel injector and fuel pressure regulator. Attach throttle body with new gasket to body. Tighten screws to 38-44 INCH lbs. (4.3-5.0 N.m).
  2. Clean and install screen in fuel inlet channel. Clean loose material from fuel fittings and coat with Loctite (290). Install fuel fittings and tighten to 168-190 INCH lbs. (19-23 N.m).

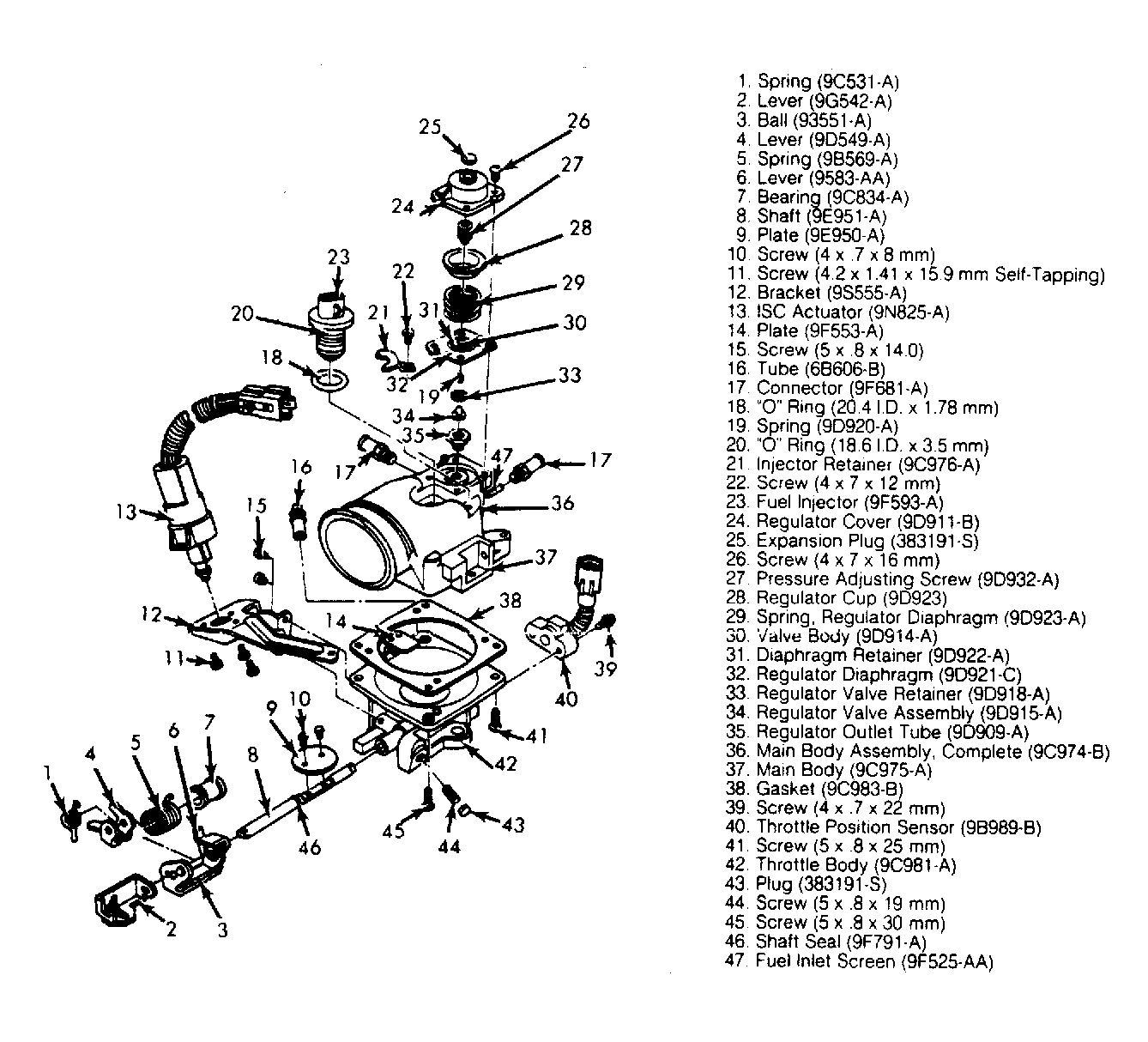

Fig 1: Exploded View of Fuel Charging Assembly (2.5L Sable & Taurus)
G54349Courtesy of FORD MOTOR CO.
