Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ATC Blower Motor Speed Controller | In evaporator case. | |
| ATC Control Unit | In center of dash. | |
| Diagnostic Fuel Control Module | Behind instrument cluster. | |
| Electronic Control Assembly (ECA) | Under right side of dash. | |
| Heated Windshield Control Module | Under left side of dash, on steering column support bracket. | |
| Illuminated Entry Module | ||
| Sedan | On package tray, behind rear seat. | |
| Station Wagon | Behind left rear quarter panel. | |

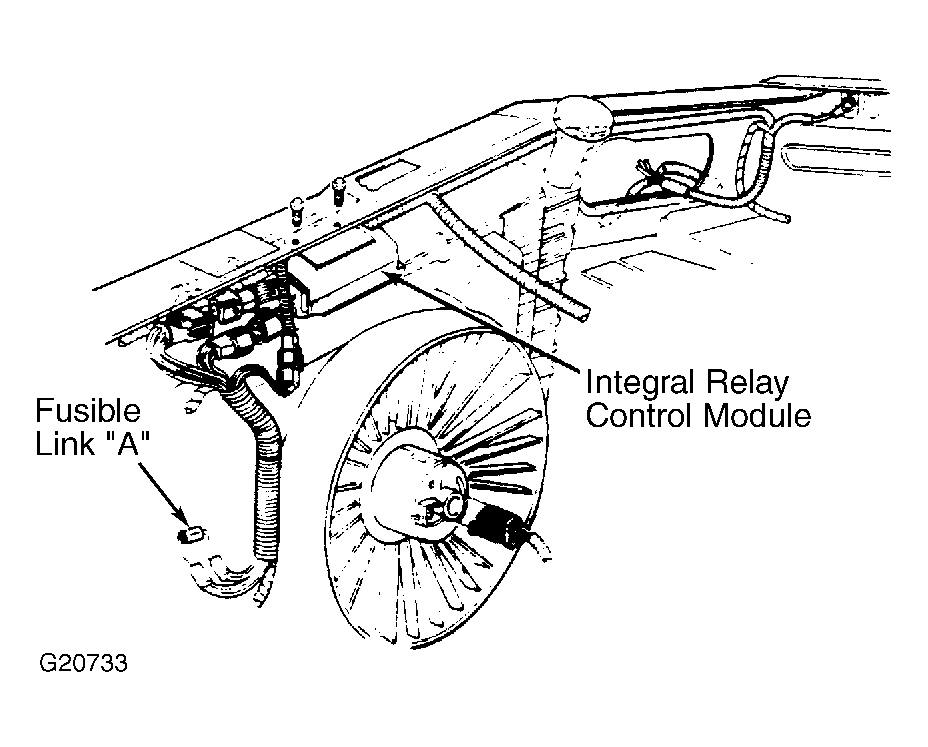

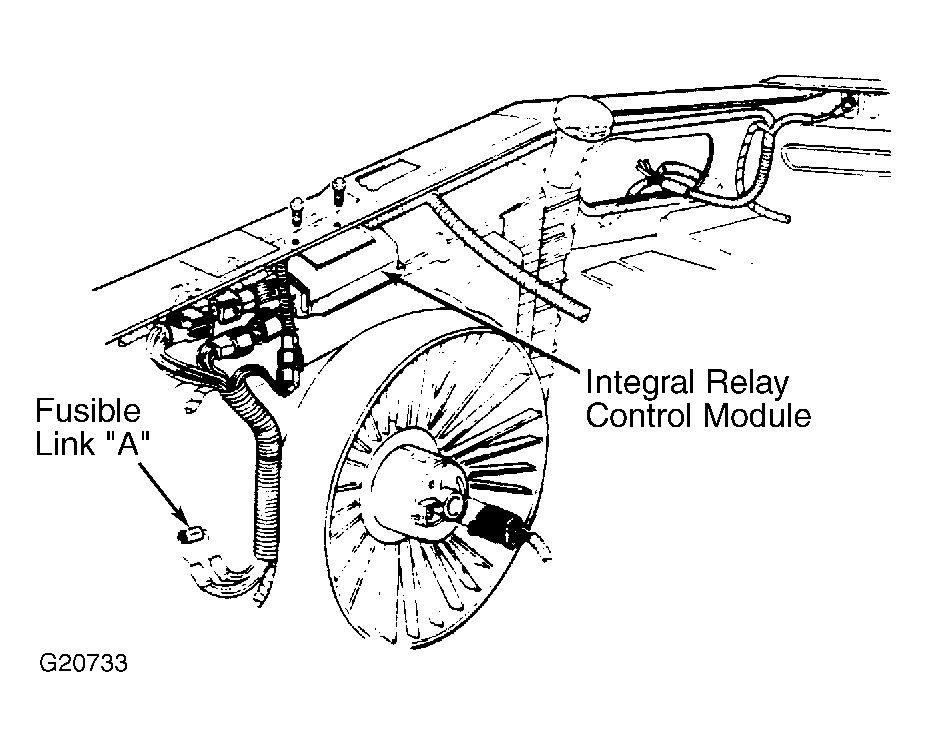

| Integrated Controller Module | On bottom of upper radiator support. See Figure . | |
| Keyless Entry Module | ||
| Sedan | On package tray, behind rear seat. | |
| Station Wagon | In trunk, on left rear quarter panel. | |
| Light-Out Diagnostic Warning Module | ||
| Sable | Behind left side of dash, near fuse panel. | |
| Taurus | Behind right side of dash, above glove box. | |
| TFI Ignition Module | ||
| 3.8L, Closed Bowl Distributor | Right side of firewall, above ECA harness. | |
| Except 3.8L, Closed Bowl Models | On side of distributor. | |
| Voice Alert Module | Under left side of instrument panel. | |

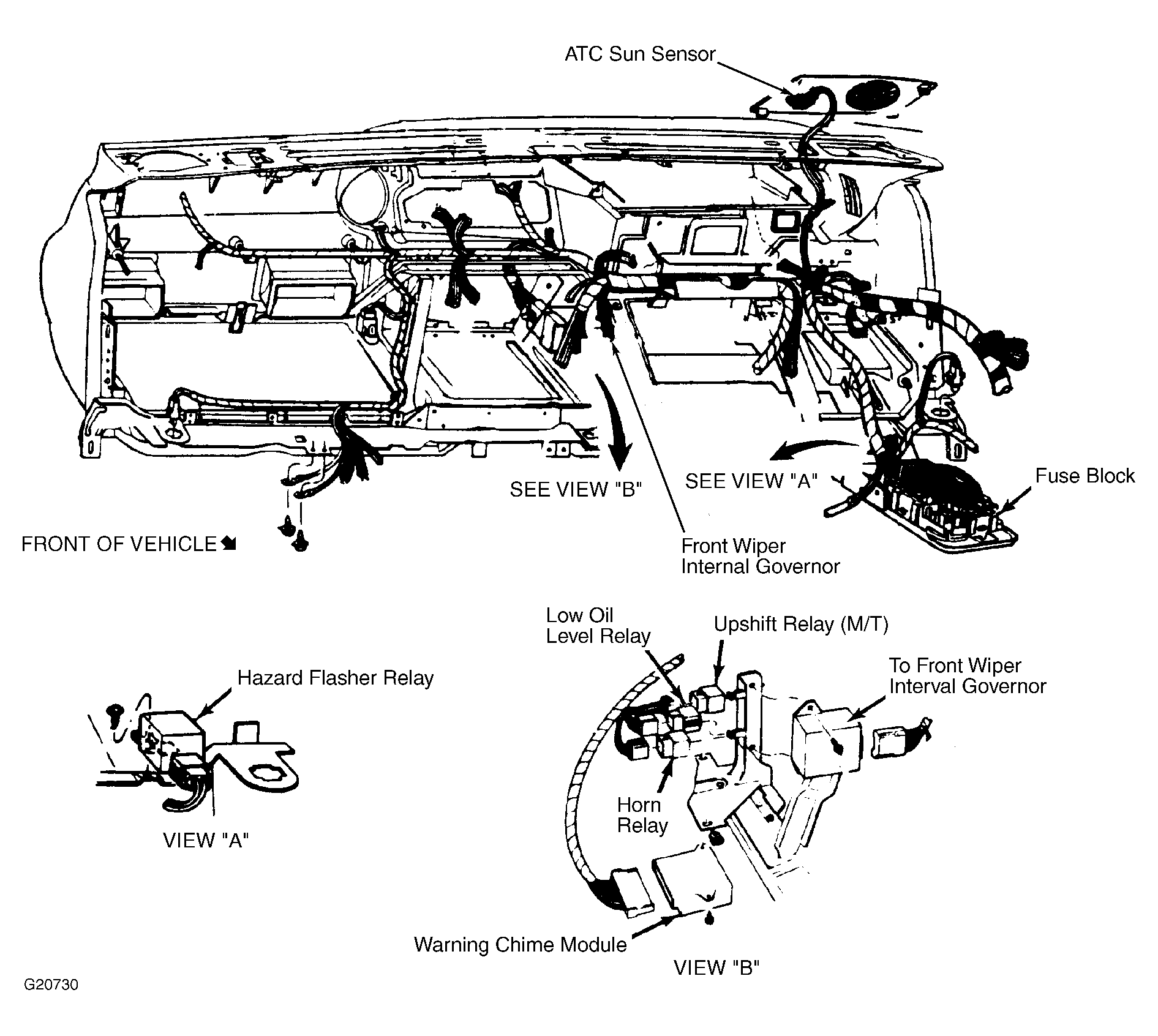

| Warning Chime Module | Under center of dash. See Figure . | |
