Multifunction Switch

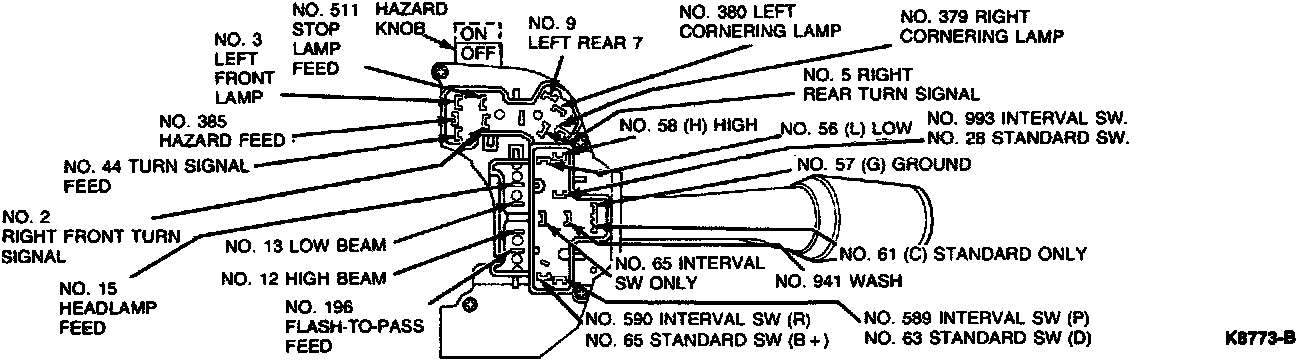

Multi-Function Switch Connector View:

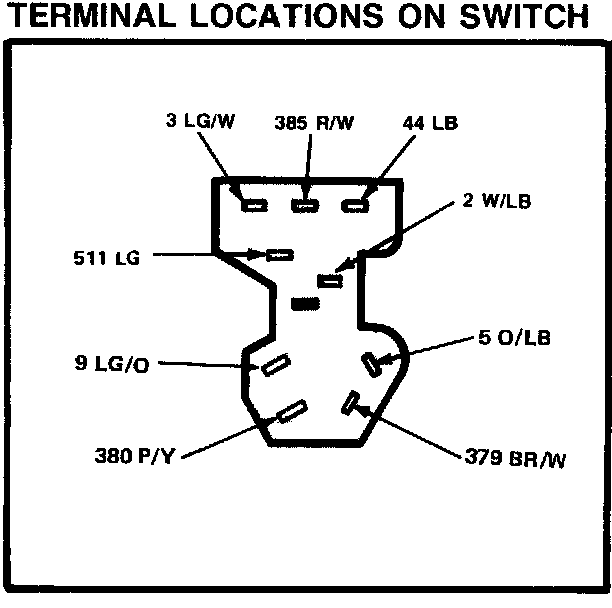

Multi-Function Switch Terminal Locations:
