Integrated Relay Control Module

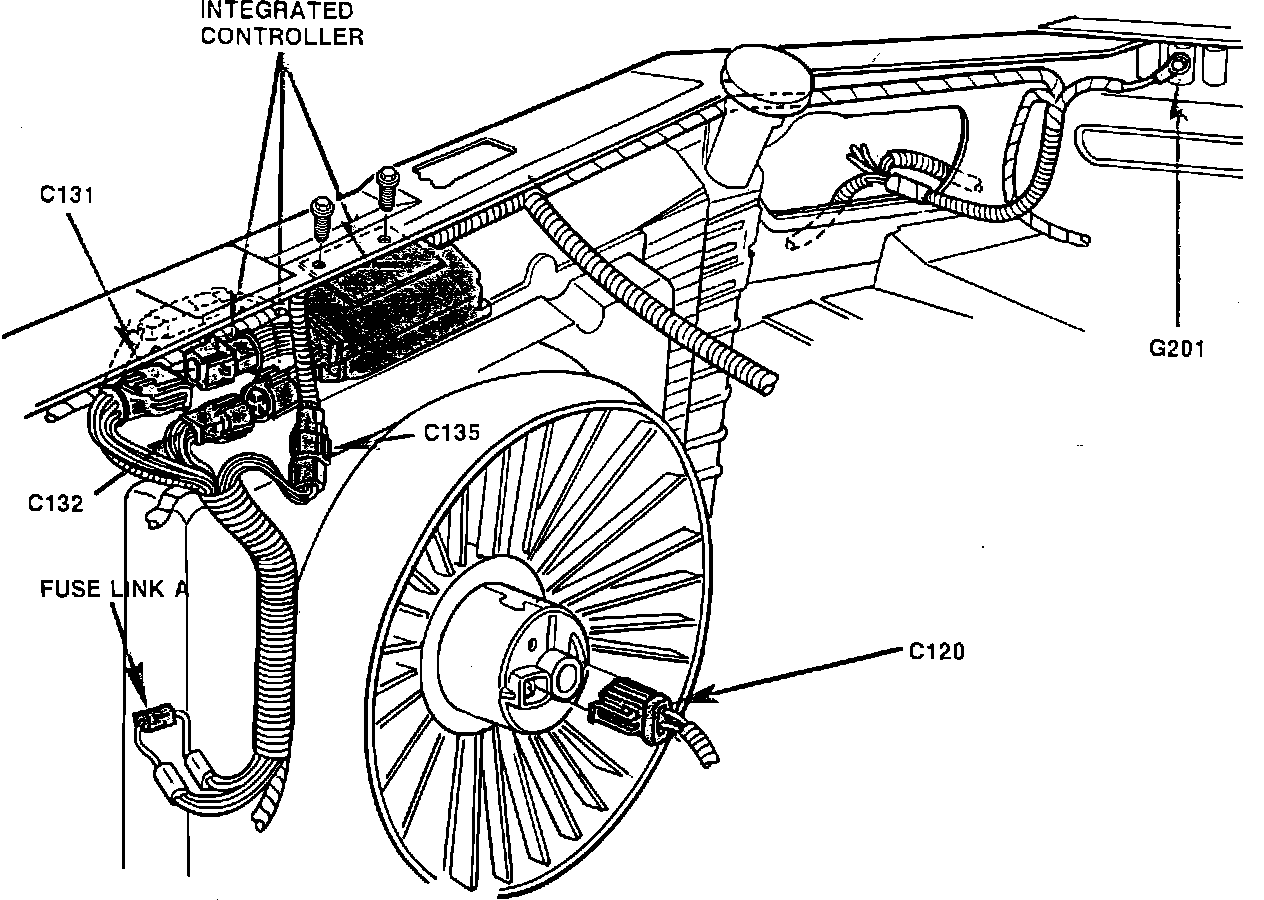

Front radiator support:







The Fuel Pump Relay is located inside of the Integrated Relay Control Module (IRCM).
