Wiring Diagrams

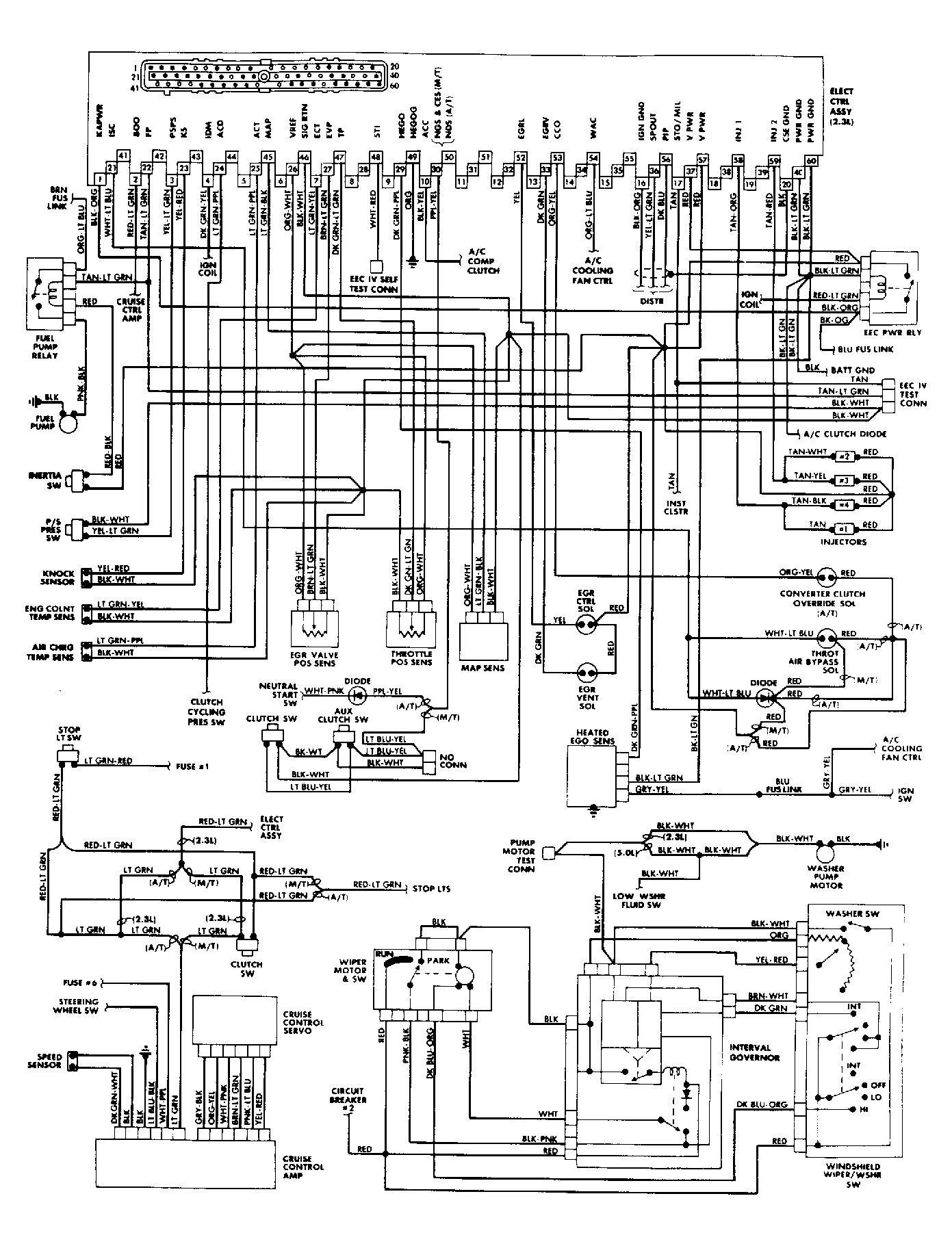

Fig 1: 2.3L OHC MPFI EEC-IV Wiring Diagram (Mustang)
G54831

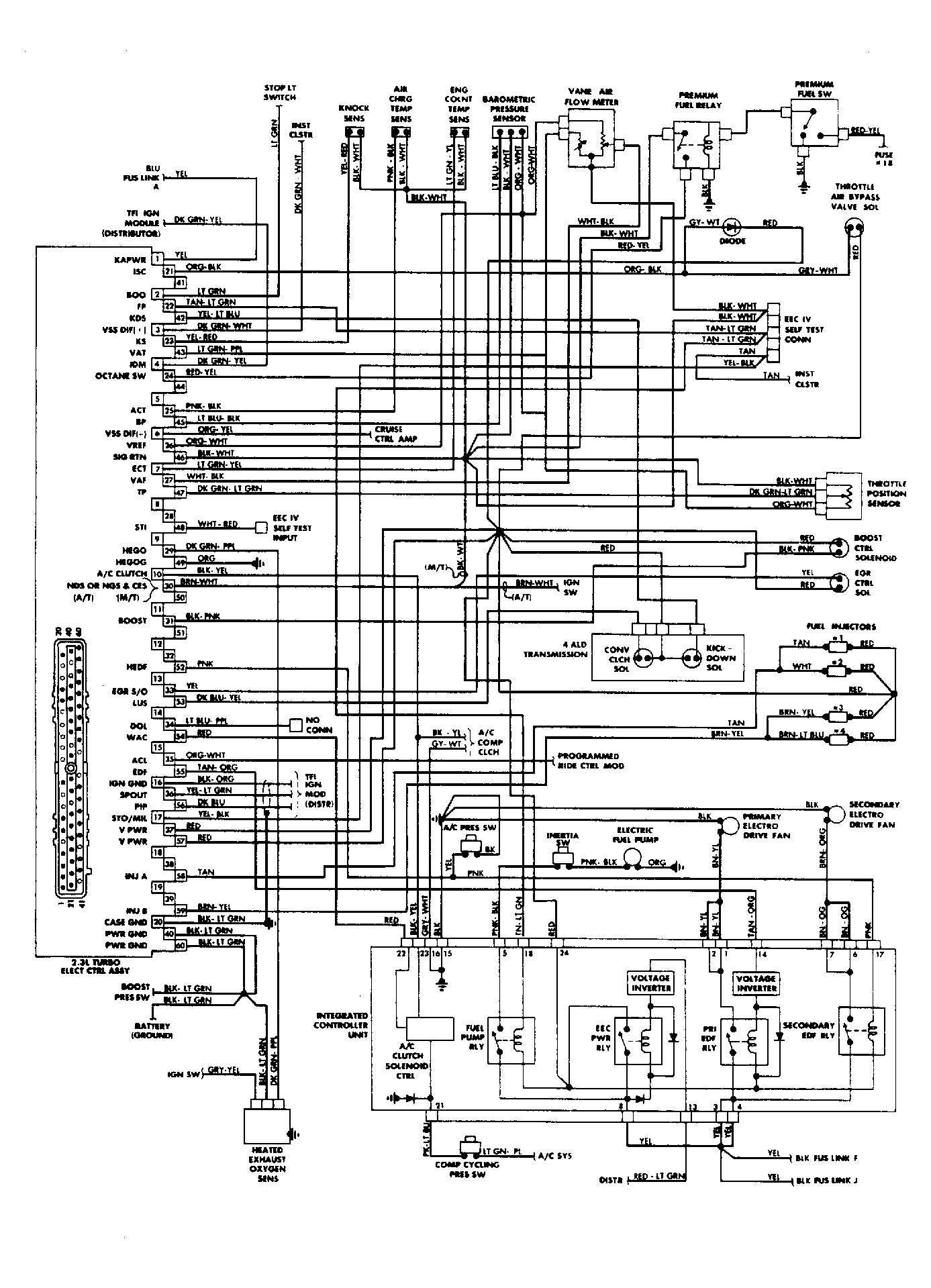

Fig 2: 2.3L Turbo MPFI EEC-IV Wiring Diagram (Thunderbird)
G54832
Fig 3: 2.3L HSC MPFI EEC-IV Wiring Diagram (Tempo & Topaz)
G54833
