Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Clutch Cycling Switch | On A/C accumulator. |

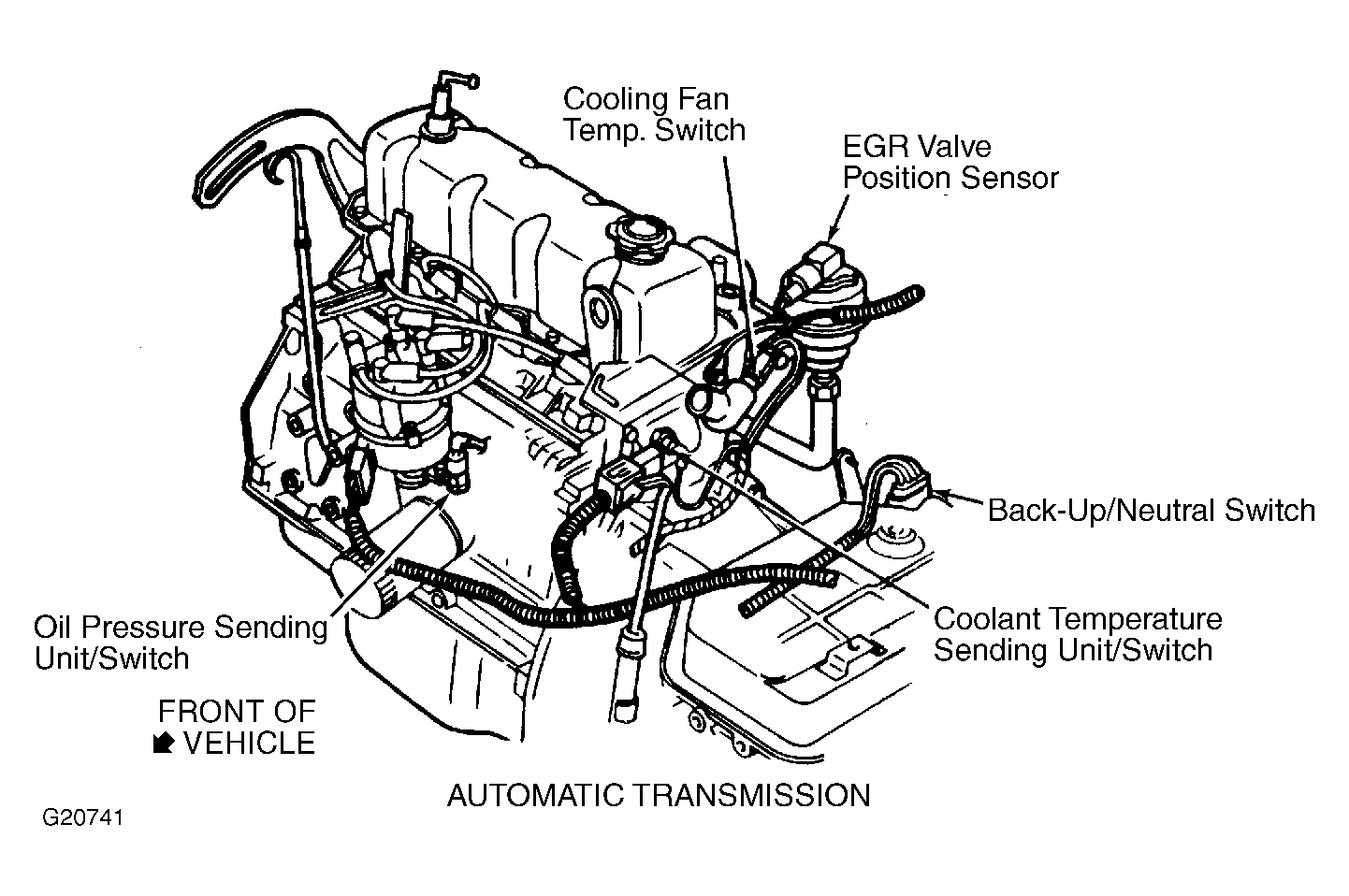

| Back-Up/Neutral Switch | On transaxle. See Figure & Figure . |
| Brake/Stop Light Switch | Attached to brake pedal arm. |
| Clutch/Start Interrupt Switch | Above clutch pedal. |
| Dual Brake Warning Switch | Attached to master cylinder. |
| Fuel Filler Door Release Switch | In upper left corner of glove box. |
| Inertia Switch (Fuel Cut-Off) | Above left rear wheelwell. |
| Key Reminder Switch | Integral with ignition switch. |
| Power Steering Press Switch | In power steering pressure line, above steering gear. |
| Seat Belt Switch | In driver's seat belt buckle. |
| Speed Control Switch | In steering wheel. |

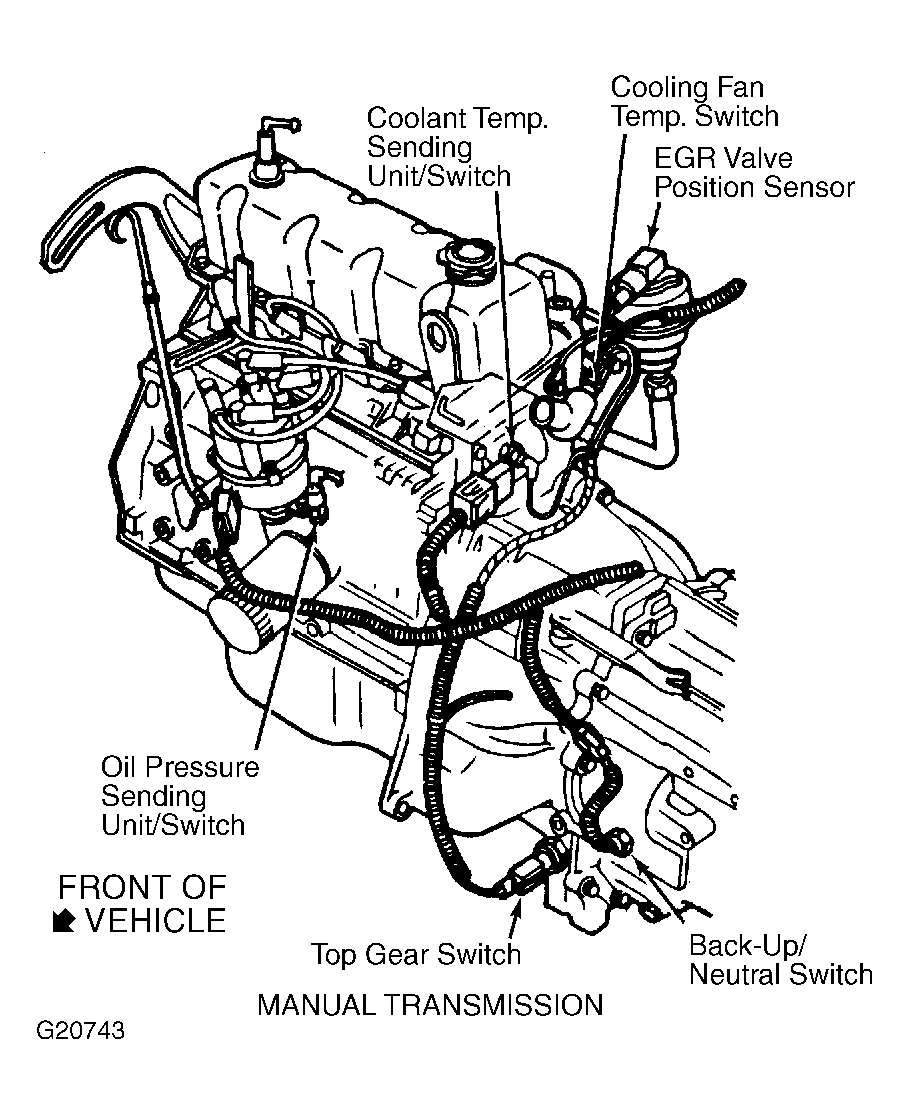

| Top Gear Switch (M/T) | Mounted to transaxle. See Figure . |
| Trunk Release Switch | In lower left corner of glove box. |
| Washer Fluid Level Switch | Inside washer fluid reservoir. |
