STAR Tester

Turn ignition switch to "OFF" position. Connect color coded adapter cable leads to diagnostic tester. Connect adapter cable's 2 service connectors to vehicle Self-Test and STI connectors. Connect timing light. Go to KOEO SELF-TEST.

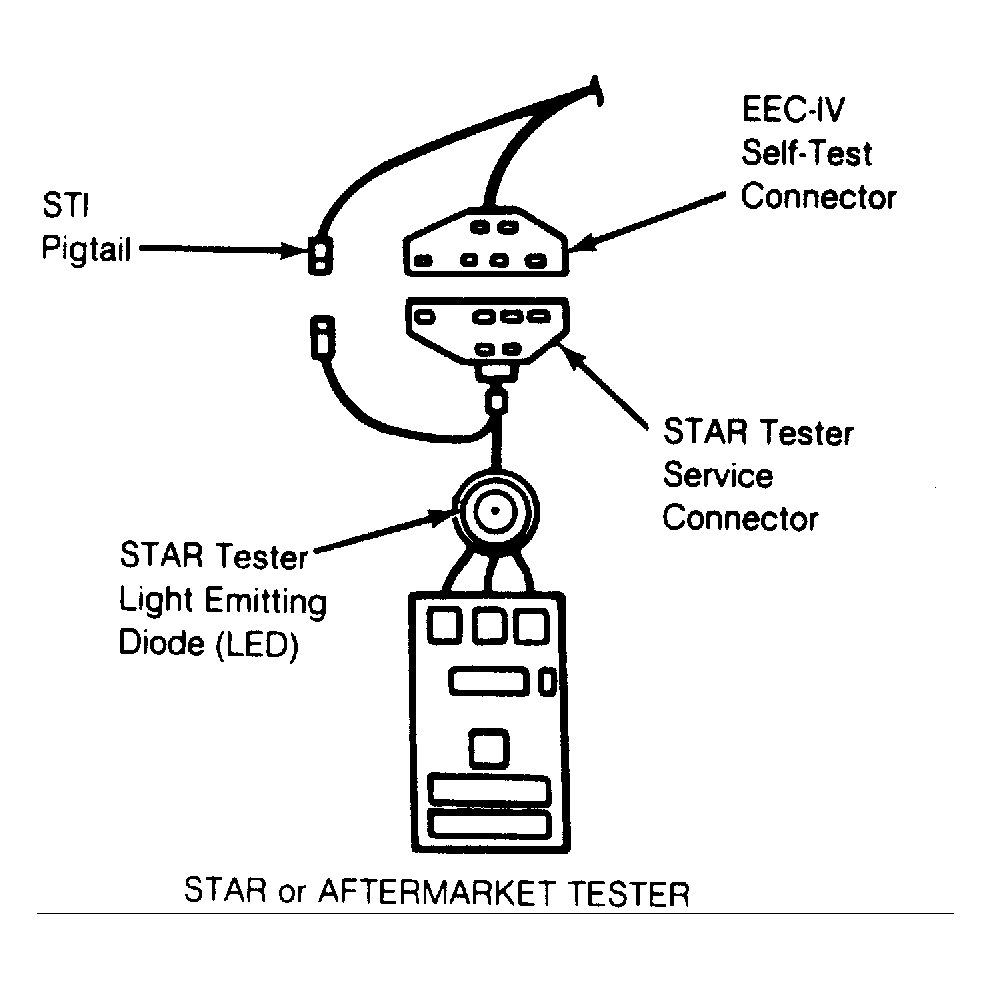

Fig 1: Self-Test Connector Equipment Hookup (Part 1 of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Self-Test Connector Equipment Hookup (Part 2 of 2)

Courtesy of FORD MOTOR CO.
