Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Behind dash, right of steering column. | |

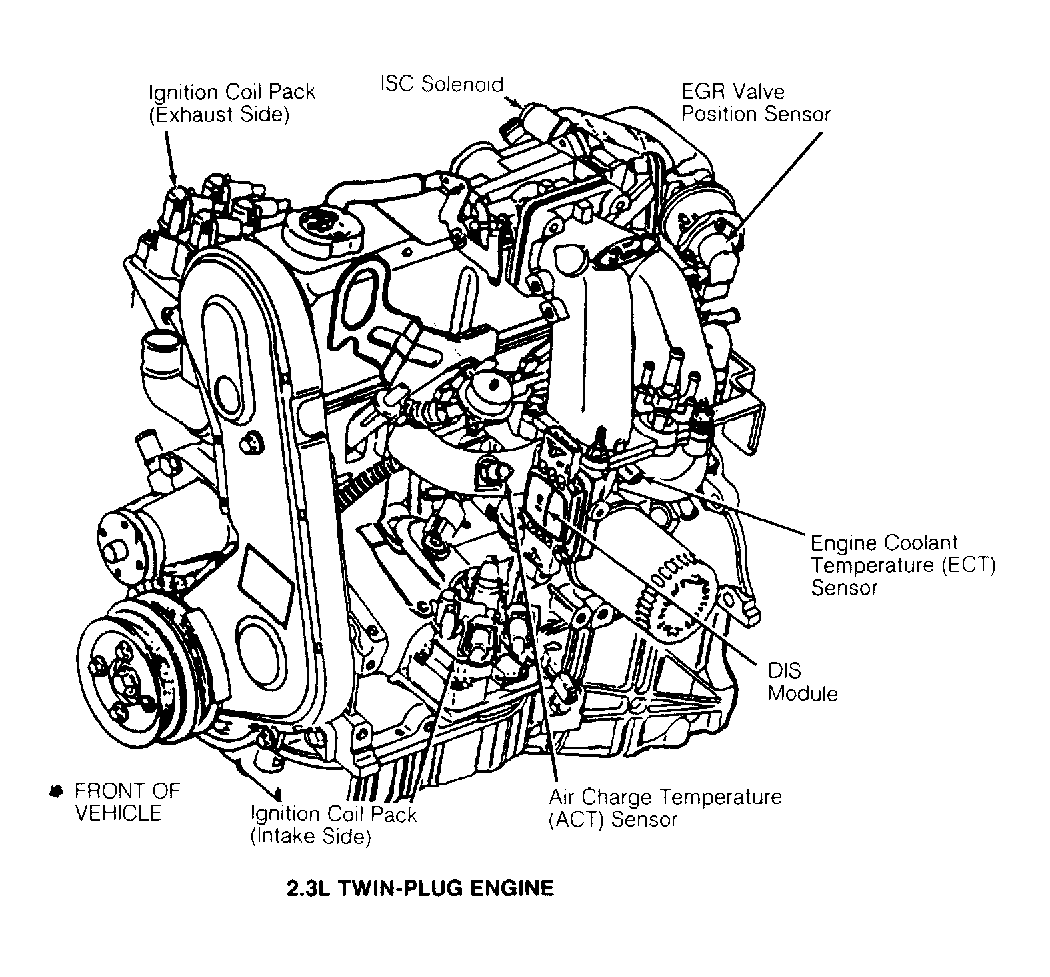

| Distributorless Ignition System (DIS) Module (2.3L) | On front of intake manifold. See Figure. | |

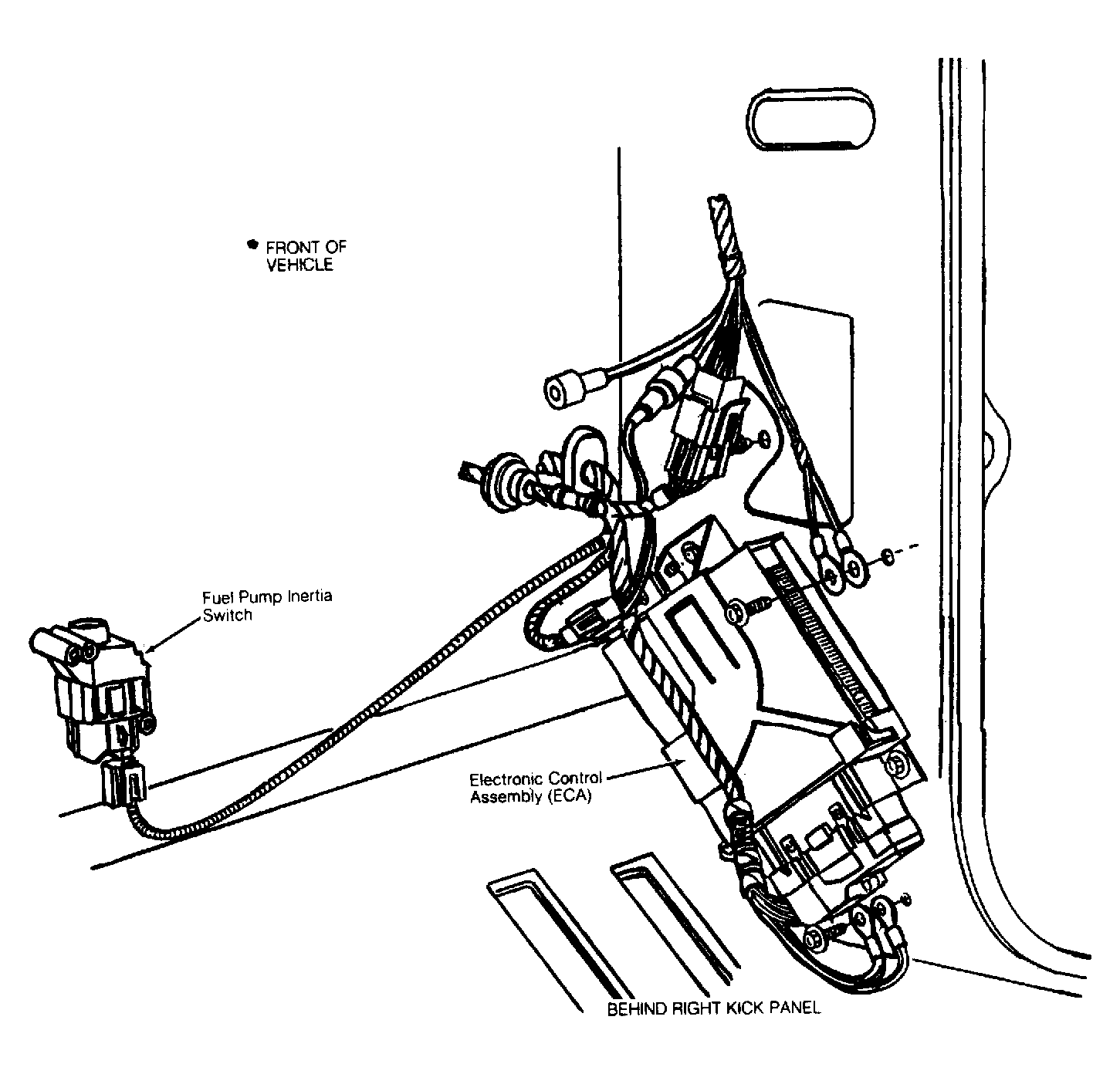

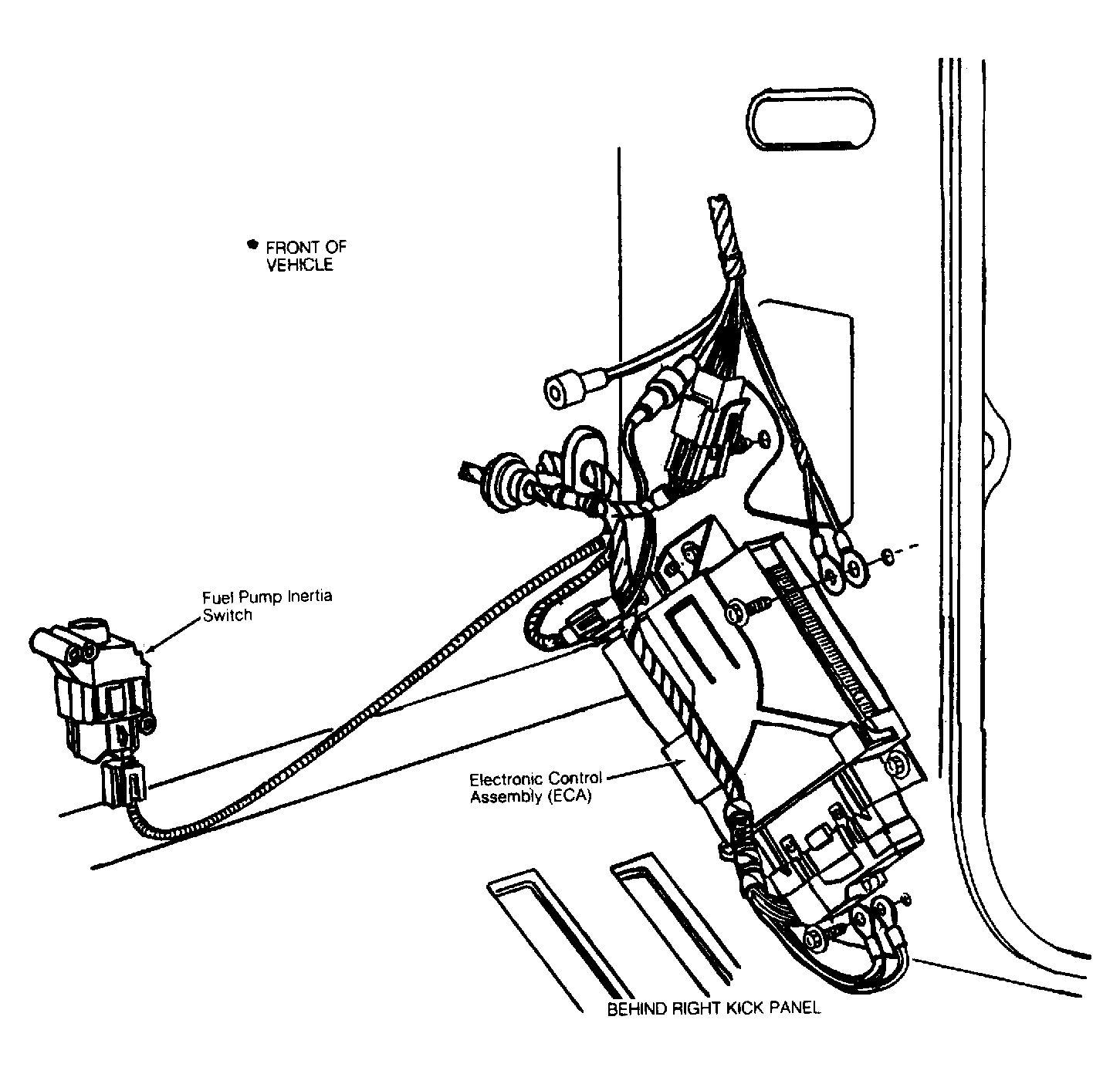

| Electronic Control Assembly (ECA) Module | Behind right kick panel. See Figure. | |
| Electronic Shift Control Module | ||
| Bronco II | Behind driver's door pillar. | |
| Ranger | On left rear of cab, behind driver's side seat. | |
| TFI Ignition Module (2.9L) | On distributor. | |
| Warning Chime Module | Behind dash, left of steering column. | |
