Multiple Switch

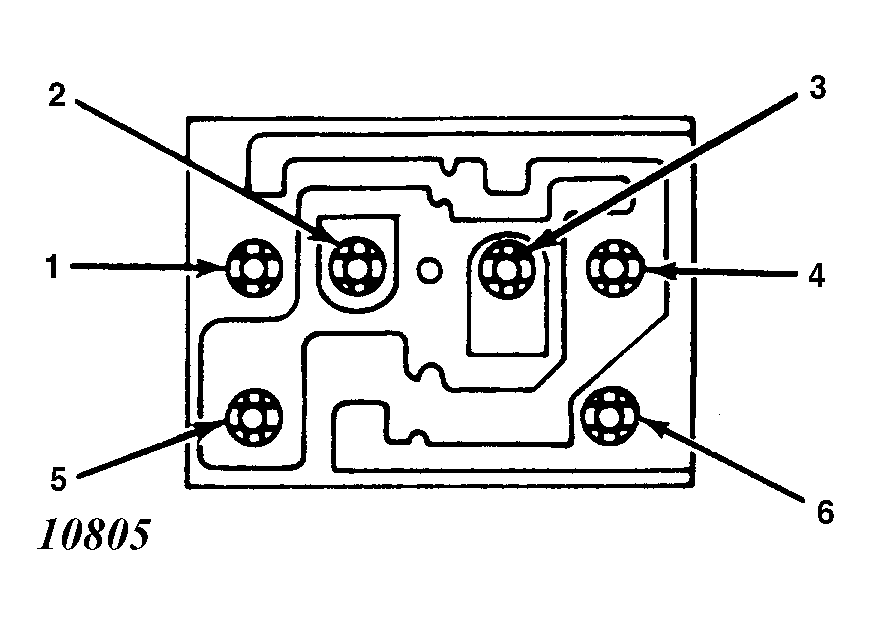

- Remove switch from vehicle. Using an DVOM or self-powered test light, clip a test probe to pin No. 6, which is grounded. See Fig 1
. Place both switches in the released (neutral) position. Pin Nos. 1 through 4 should indicate continuity to pin No. 6.
Courtesy of FORD MOTOR CO.
- Push both switches upward. Pins No. 1 and No. 3 should lose continuity to pin No. 6. Push switches downward. Pins No. 2 and No. 4 should lose continuity to pin No. 6.
- Remove test probe from pin No. 6, and connect it to pin No. 5 (battery feed). With both switches in released (neutral) position, pin No. 5 should have continuity only with itself.
- Push both switches upward. Pins No. 1 and 3 should have continuity to pin No. 5.
- Push switches downward. Pins No. 2 and No. 4 should show continuity to pin No. 5. If any switch does not test as indicated, replace complete switch assembly.
