Combination Air By-Pass/Air Control Valve

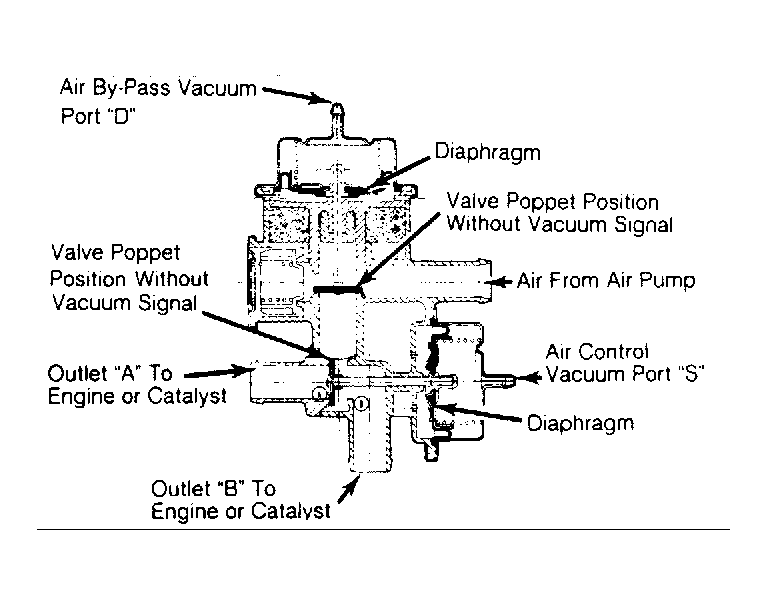

This valve combines the operational function of air by-pass valve and air control valve into a single unit. There are 2 normally closed type valves. One type is a non-bleed type and one is a bleed type. See Fig 1 . The bleed type have the bleed percentage molded into plastic case and are available with different percentages.
