Vacuum Diagrams: Identification

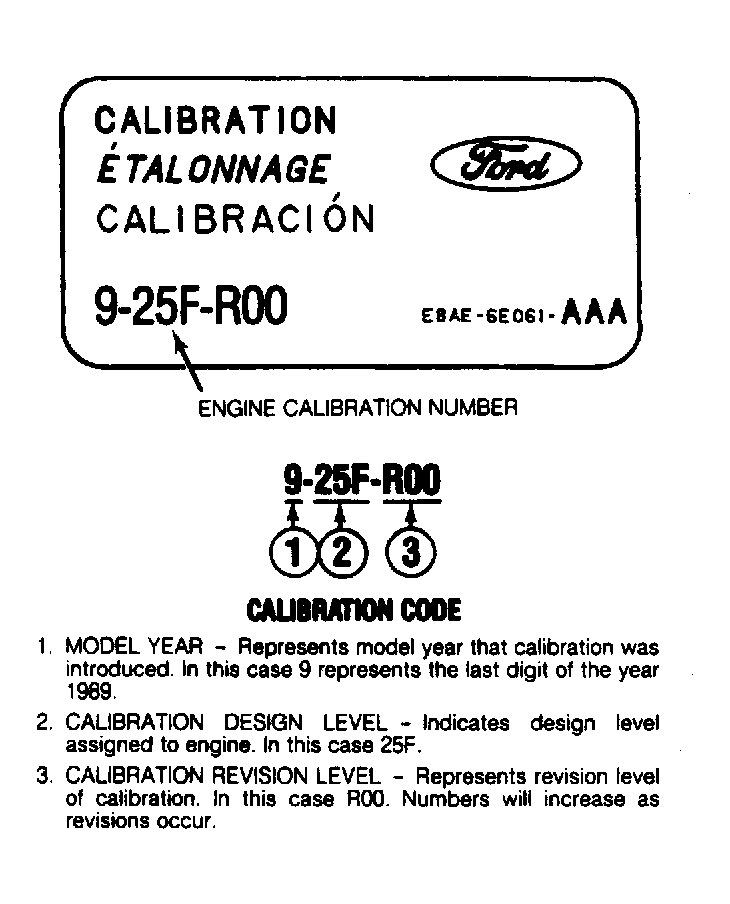

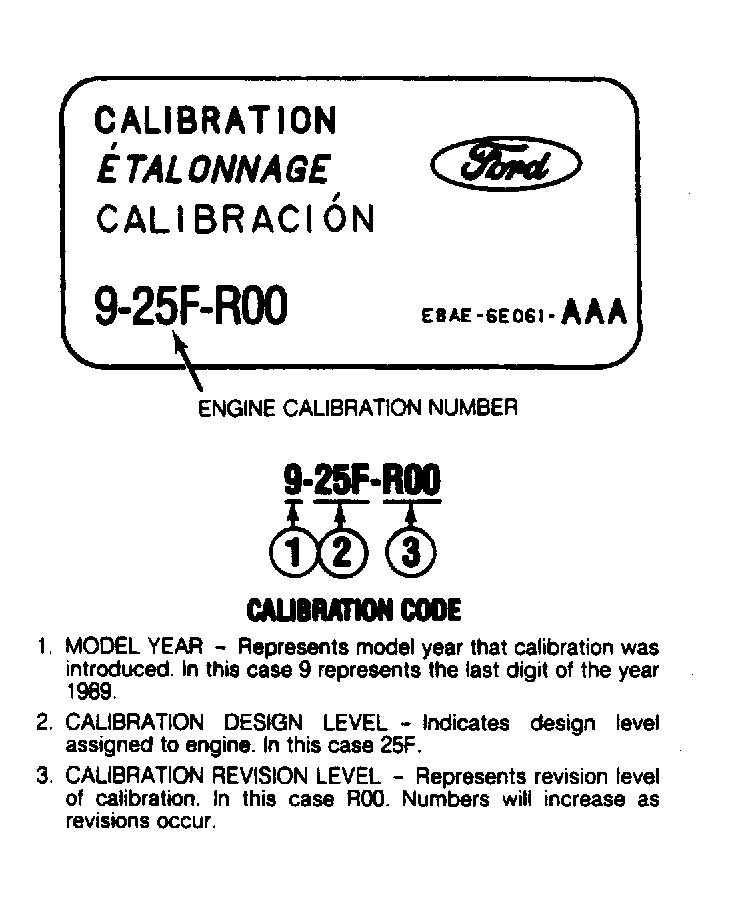

The engine calibration number can be found on the Emission Calibration Label located on driver's door or "B" pillar post. See Fig 1. Using the calibration number and Vacuum Diagram Index, determine which vacuum diagram to use for the vehicle being serviced.
