System Test

Inspect pulse air system vacuum lines, hoses, wiring and electrical components for damage, opens, bad connections and wear. Inspect reed valves and confirm that valves are not leaking exhaust gas into air cleaner assembly. Repair or replace components as necessary.

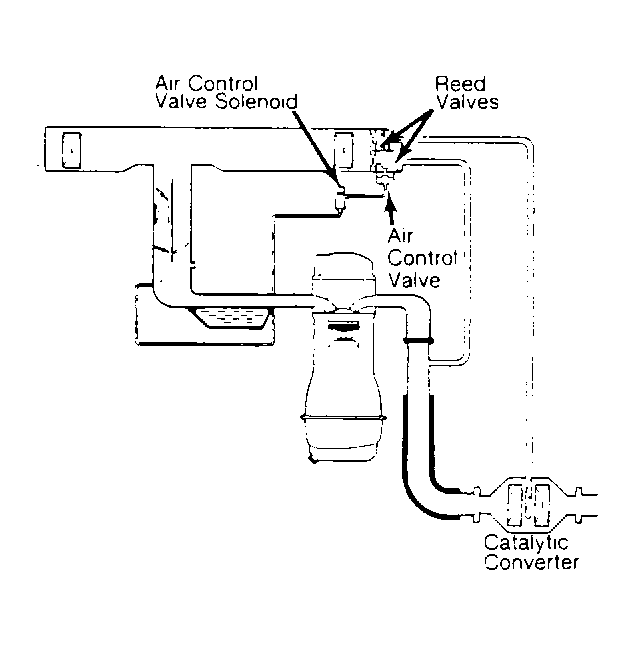

Fig 1: Pulse Air Injection System Components
G93738Courtesy of FORD MOTOR CO.
