Integrated Relay Controller Test Charts

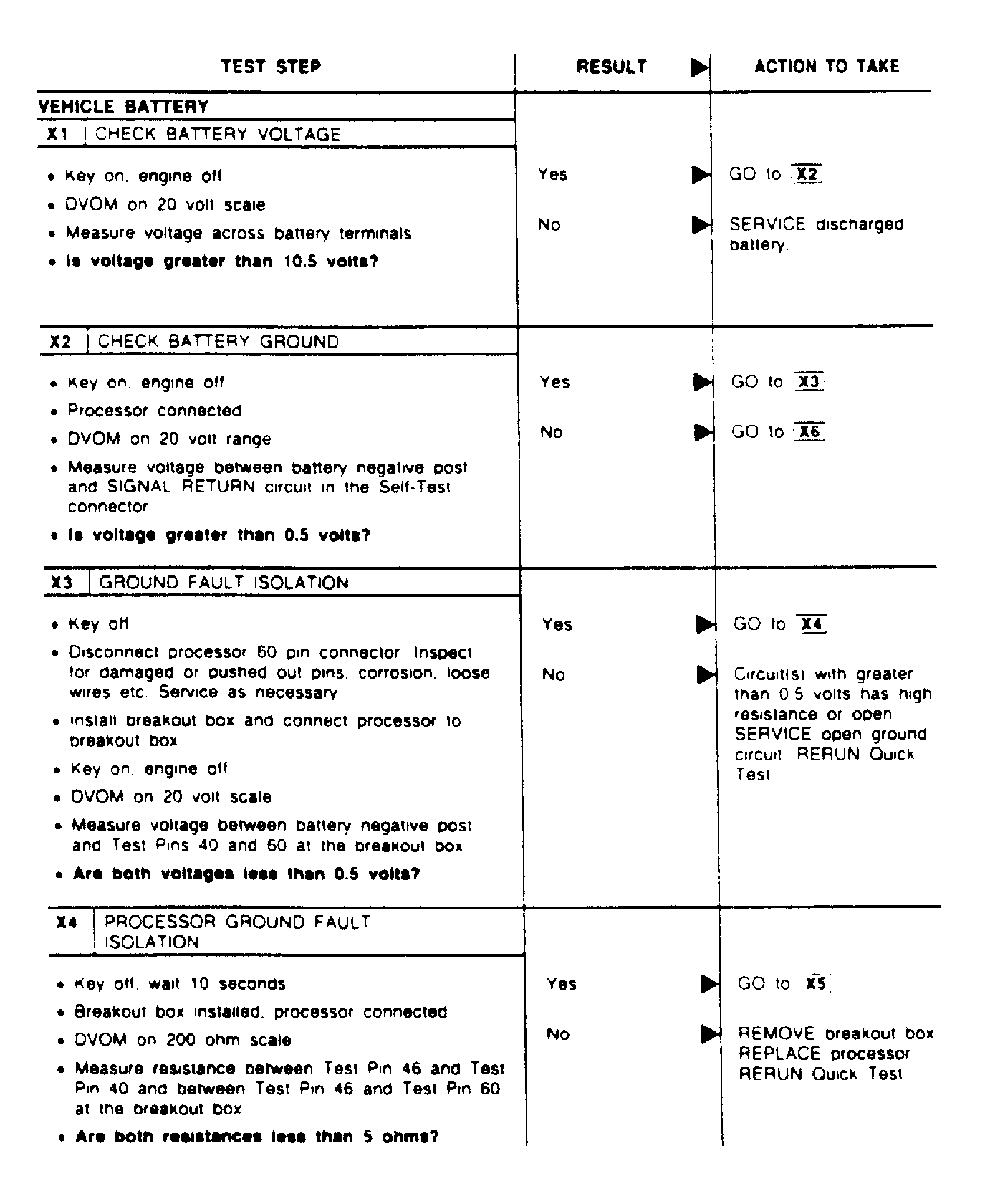

Fig 1: Test Chart X1 thru X4

G106627

Courtesy of FORD MOTOR CO.

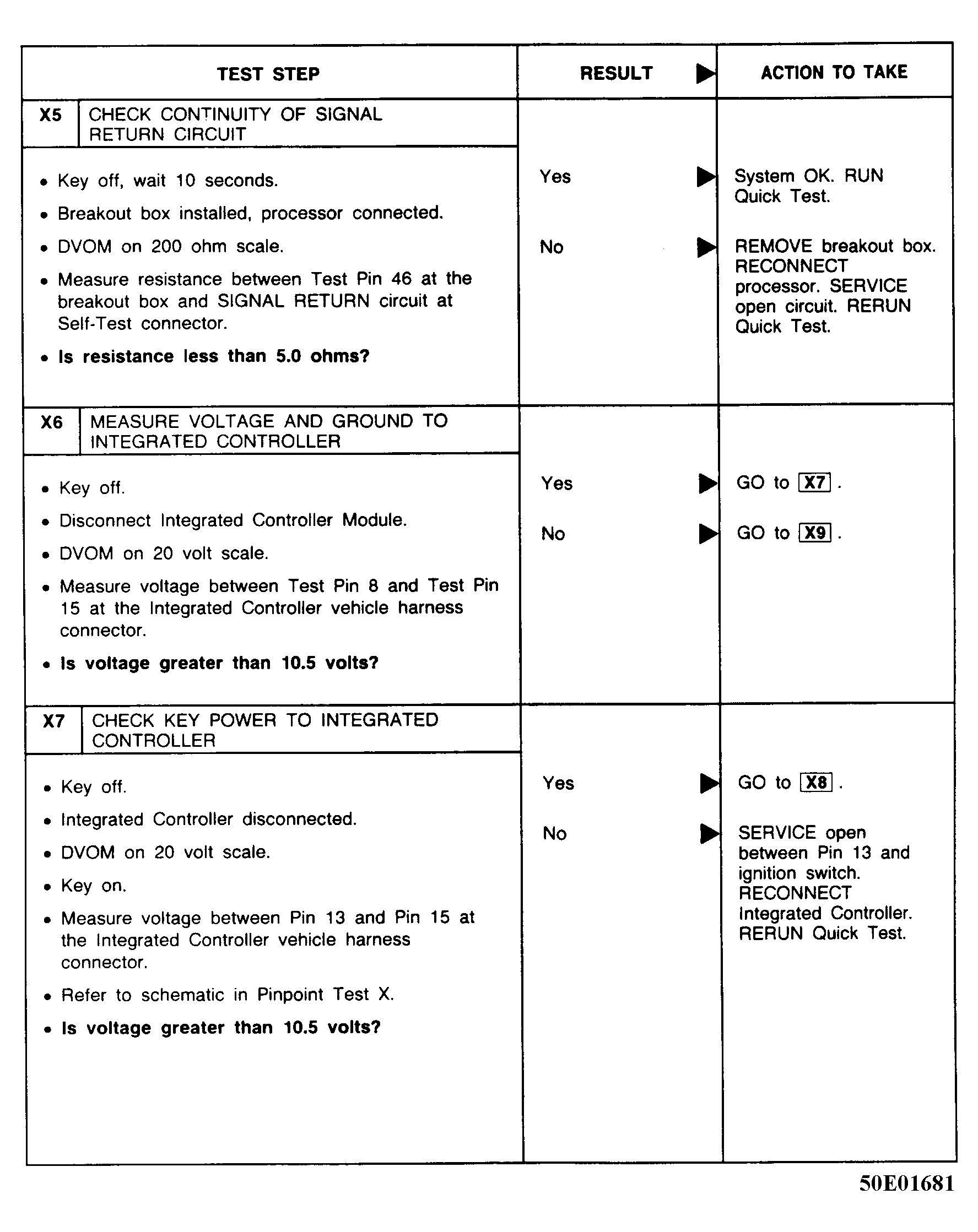

Fig 2: Test Chart X5 thru X7

G50E01681

Courtesy of FORD MOTOR CO.

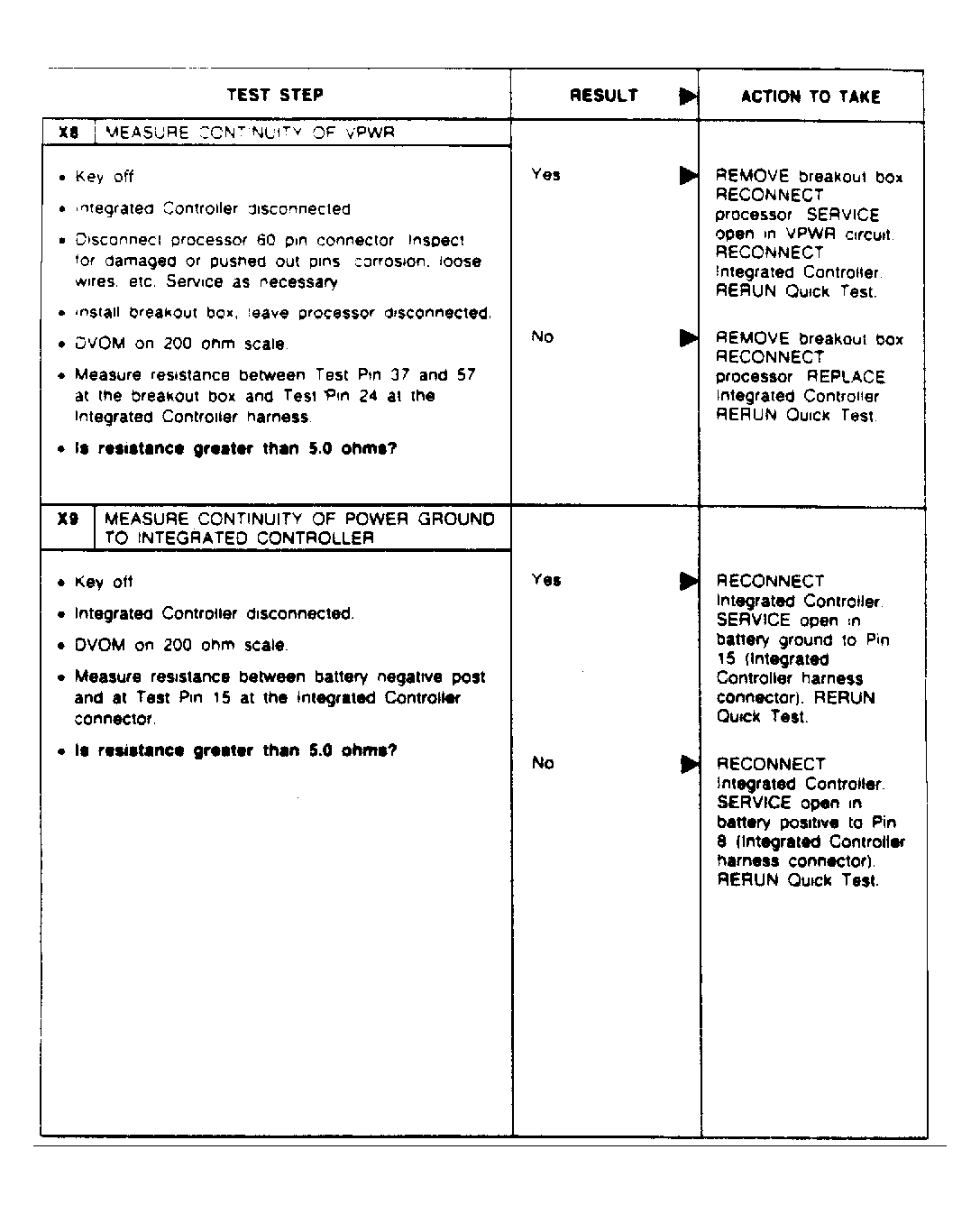

Fig 3: Test Chart X8 & X9

G106628

Courtesy of FORD MOTOR CO.

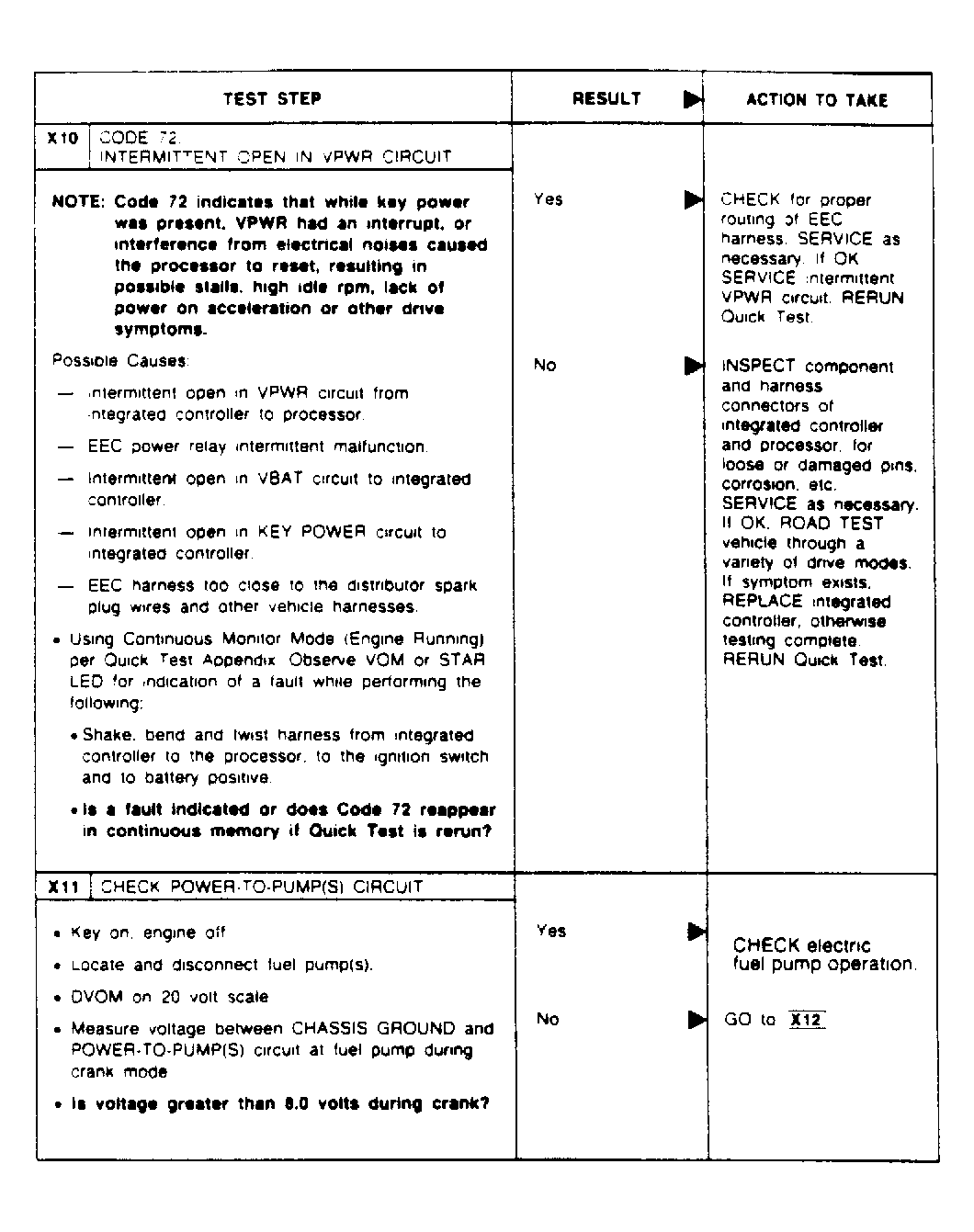

Fig 4: Test Chart X10 & X11

G106630

Courtesy of FORD MOTOR CO.

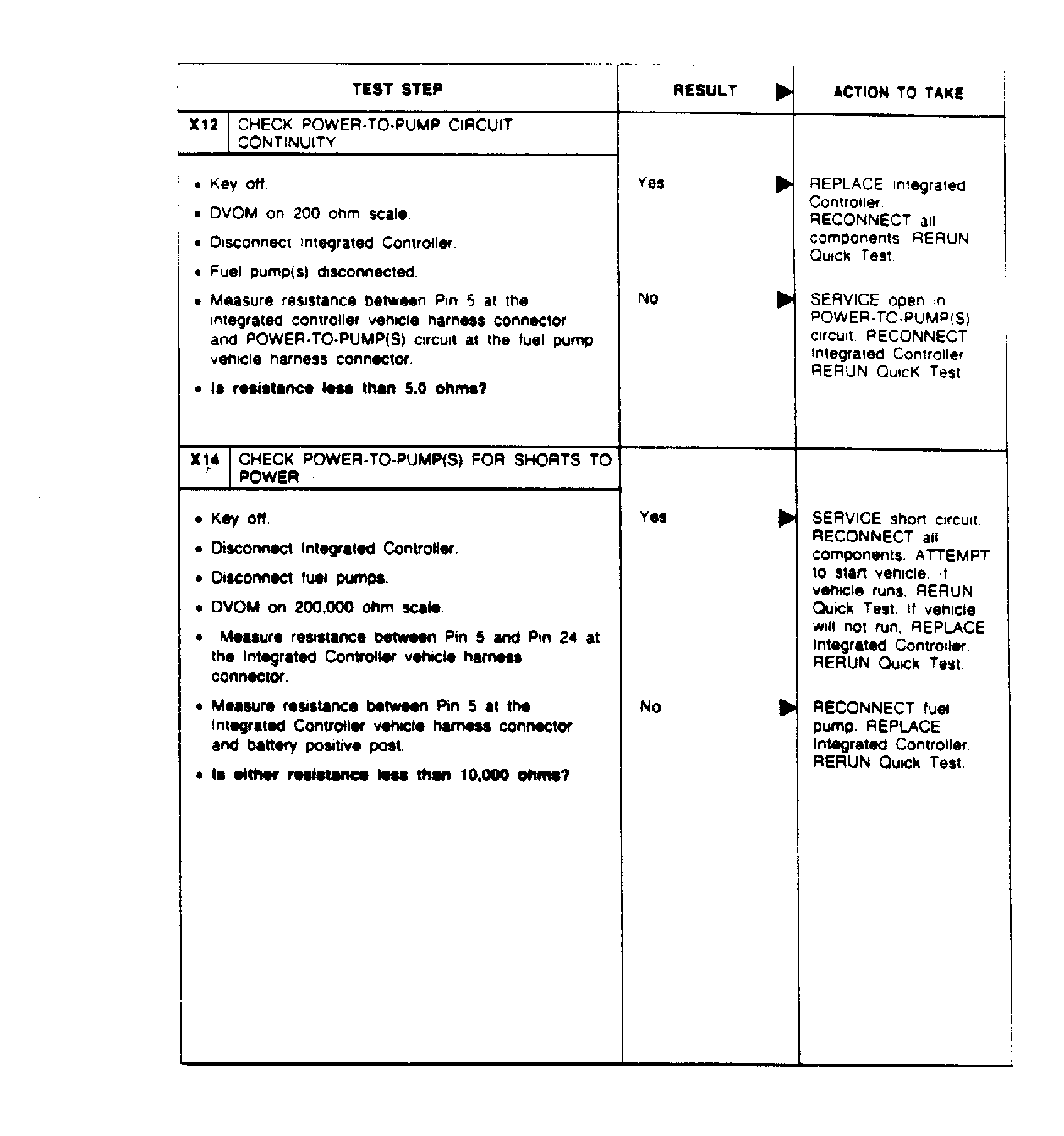

Fig 5: Test Chart X12 & X14

G106629

Courtesy of FORD MOTOR CO.

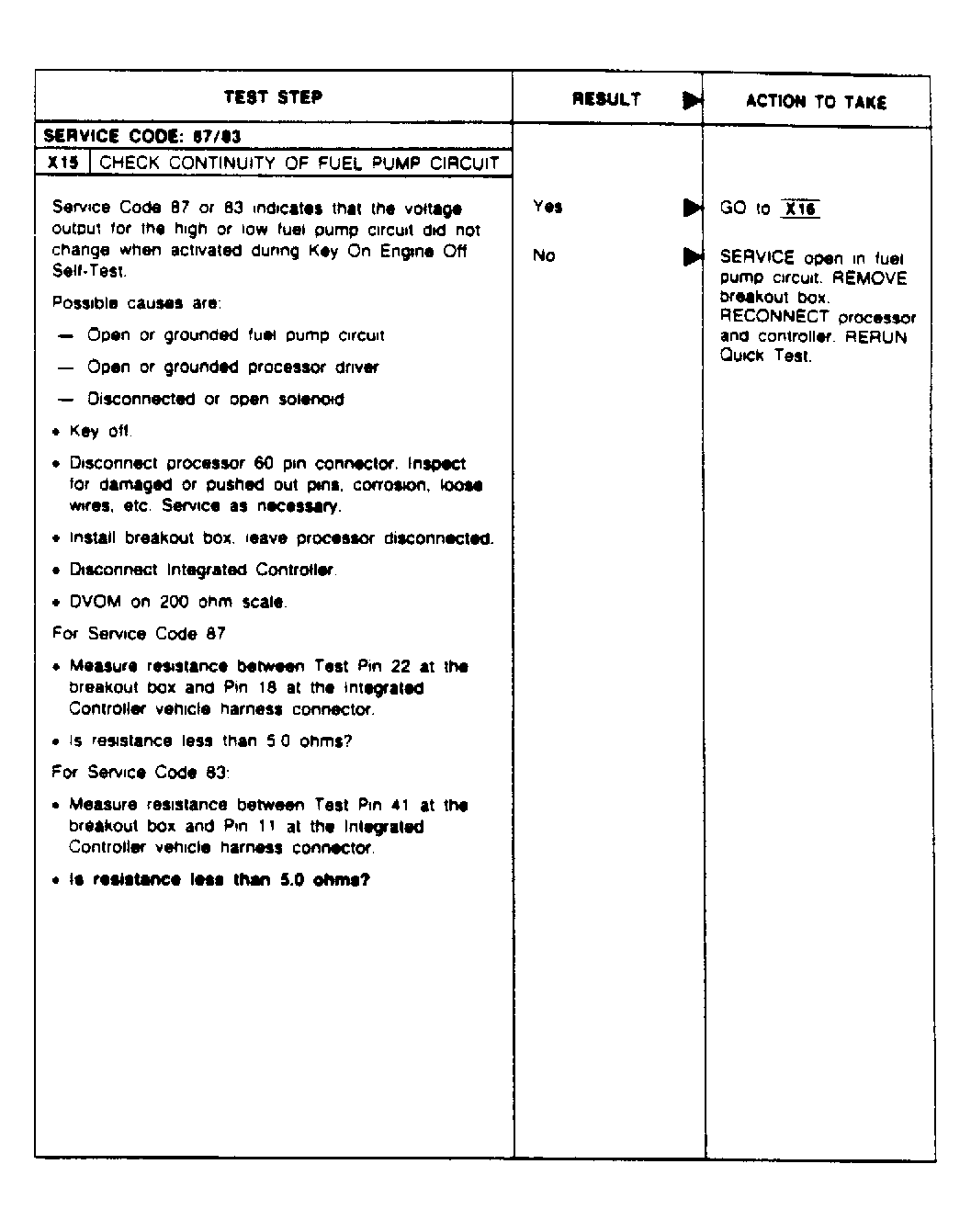

Fig 6: Test Chart X15

G106631

Courtesy of FORD MOTOR CO.

Fig 7: Test Chart X16, X17 & X18

G106632

Courtesy of FORD MOTOR CO.

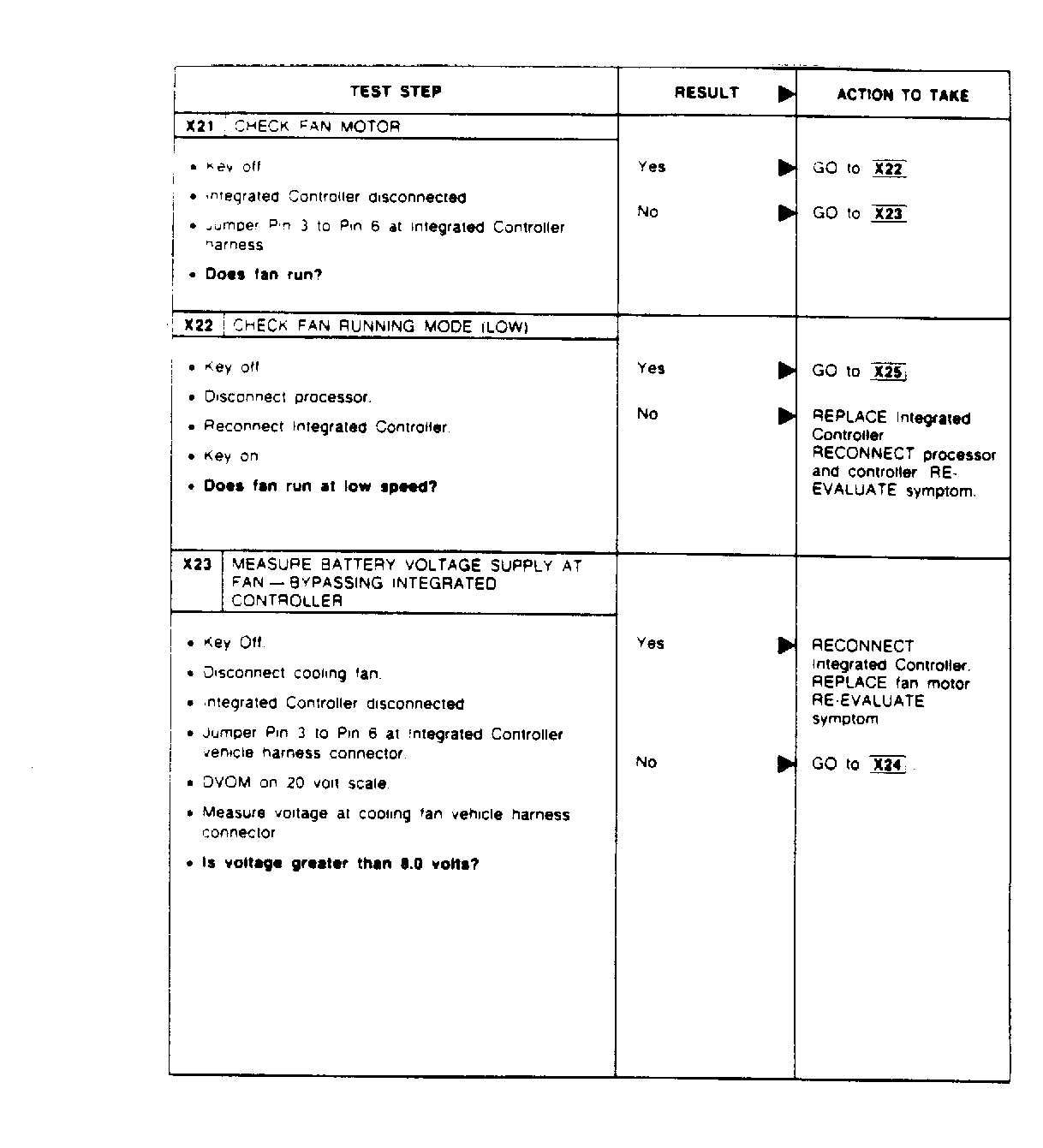

Fig 8: Test Chart X21, X22 & X23

G106634

Courtesy of FORD MOTOR CO.

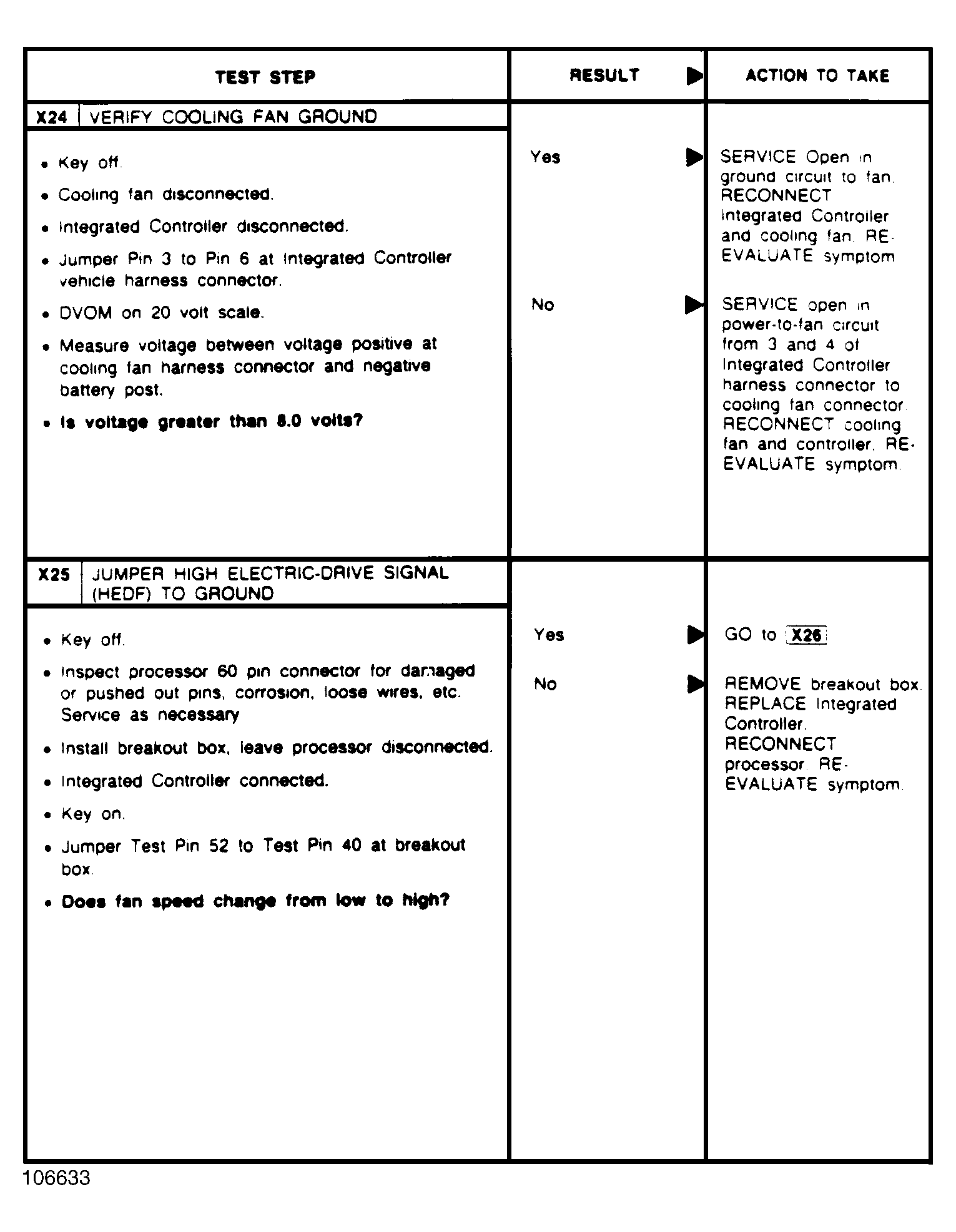

Fig 9: Test Chart X24 & X25

G106633

Courtesy of FORD MOTOR CO.

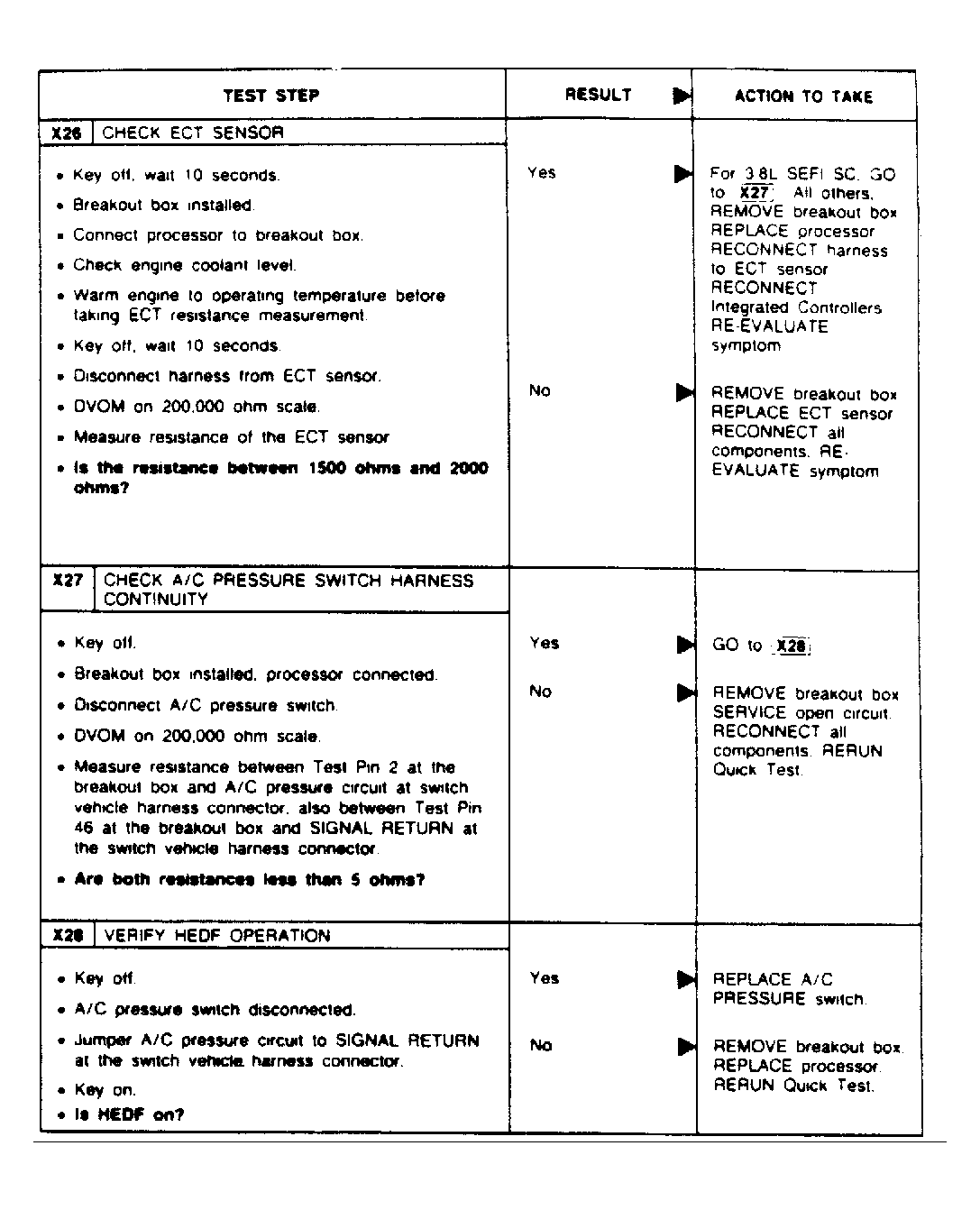

Fig 10: Test Chart X26, X27 & X28

G106635

Courtesy of FORD MOTOR CO.

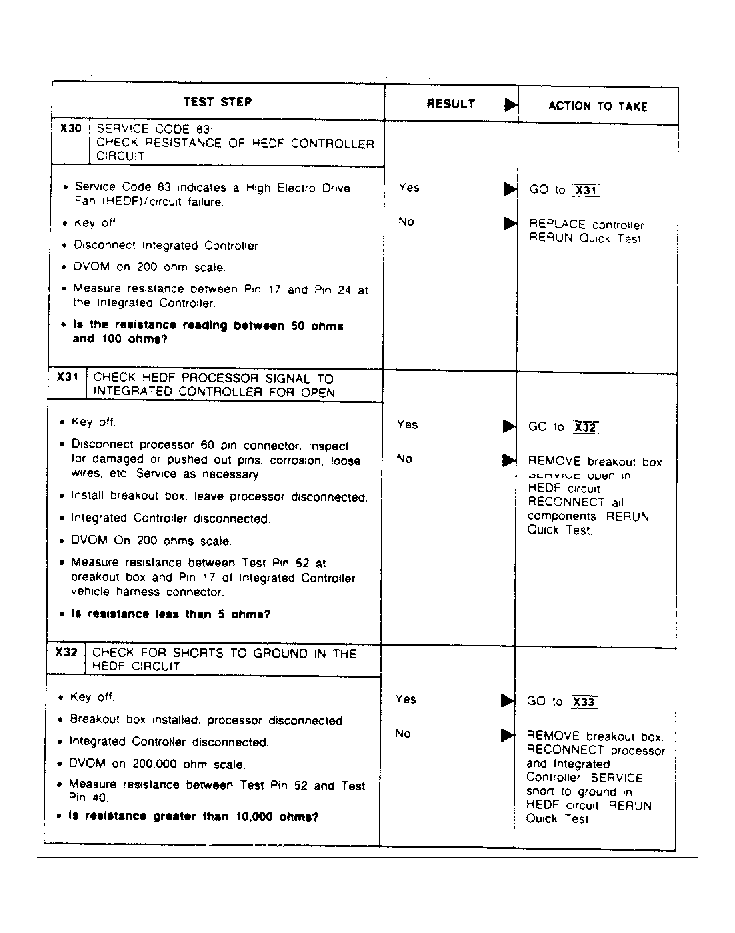

Fig 11: Test Chart X30, X31 & X32

G106636

Courtesy of FORD MOTOR CO.

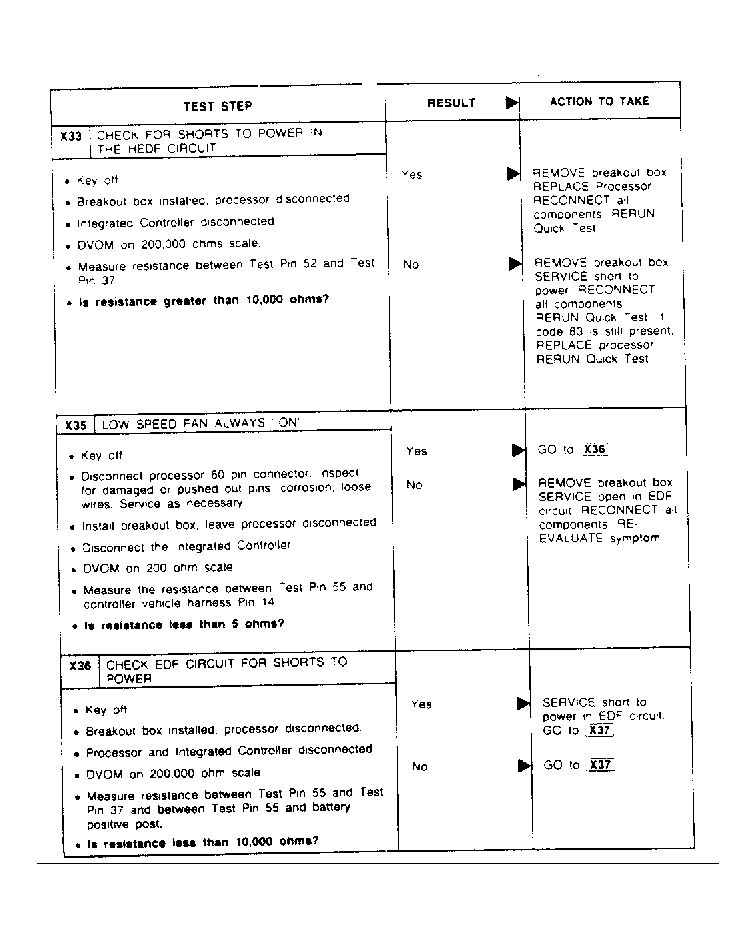

Fig 12: Test Chart X33, X35 & X36

G106638

Courtesy of FORD MOTOR CO.

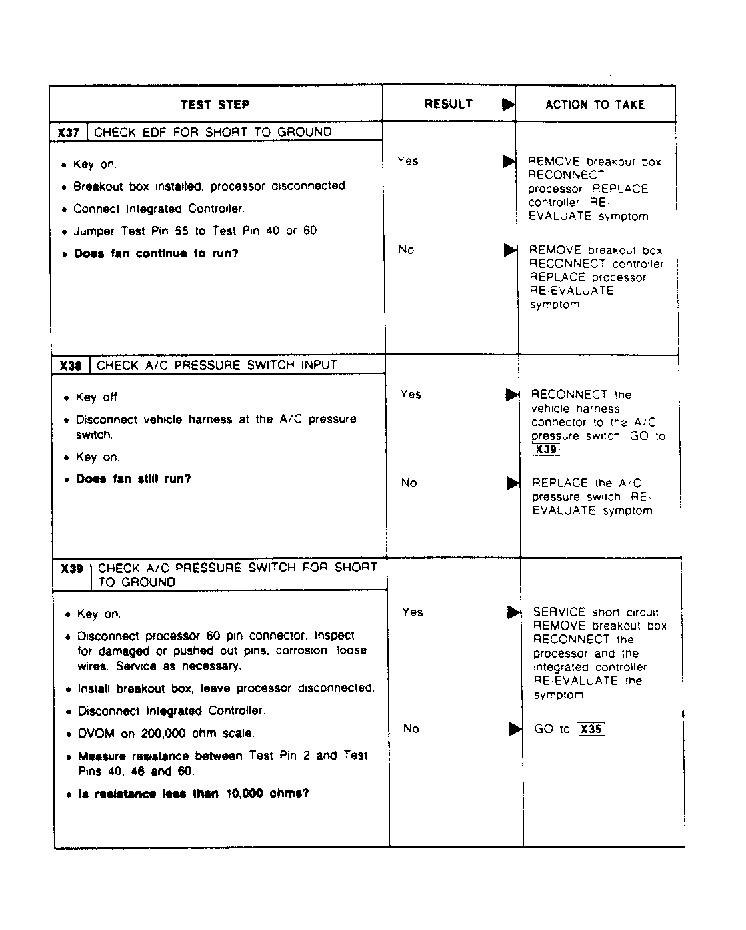

Fig 13: Test Chart X37, X38 & X39

G106637

Courtesy of FORD MOTOR CO.

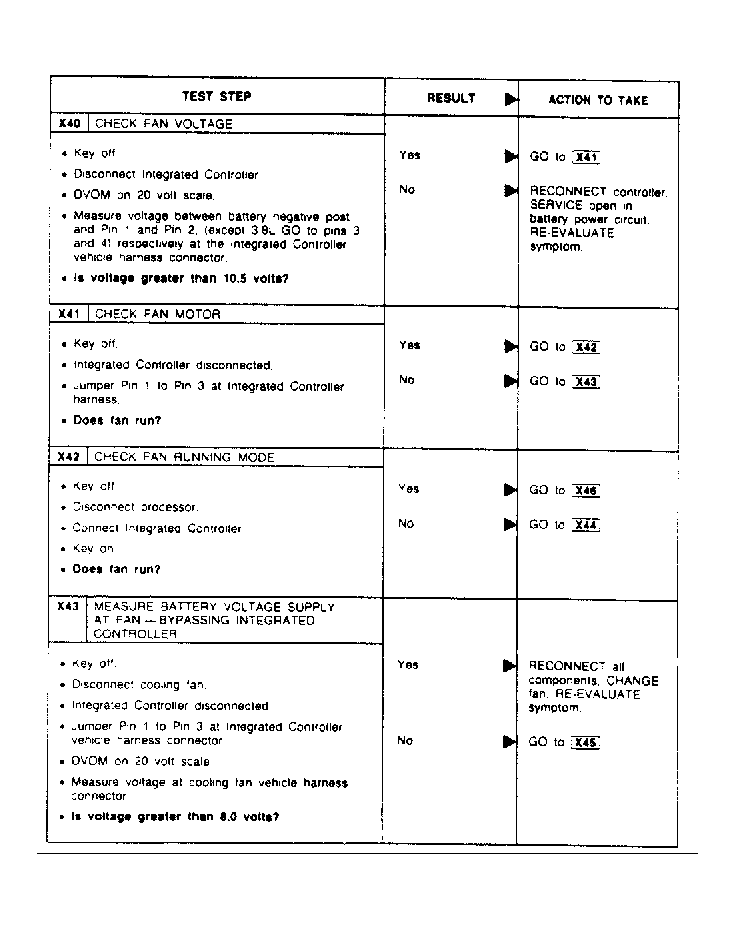

Fig 14: Test Chart X40, X41, X42 & X43

G106639

Courtesy of FORD MOTOR CO.

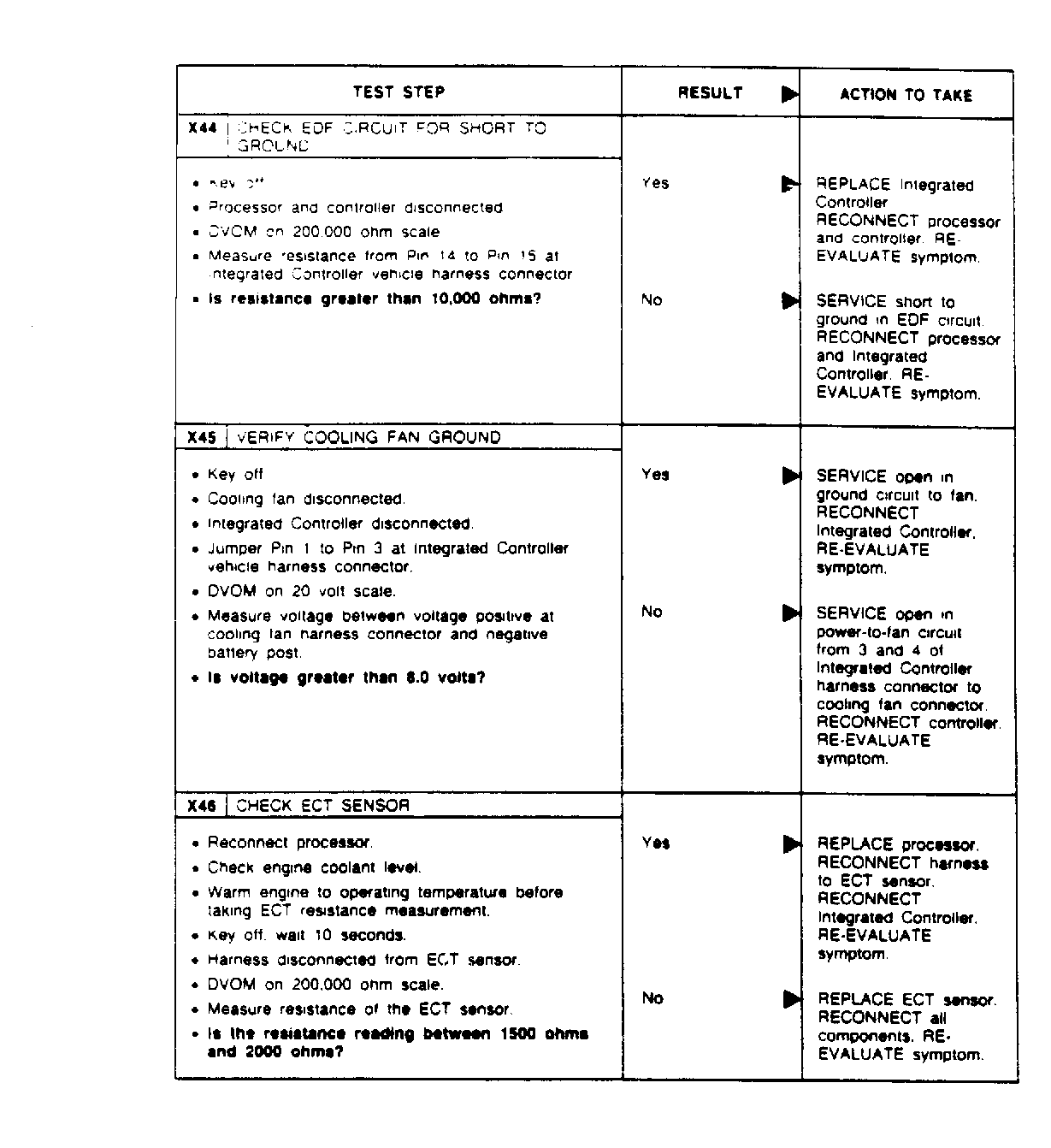

Fig 15: Test Chart X44, X45 & X46

G106640

Courtesy of FORD MOTOR CO.

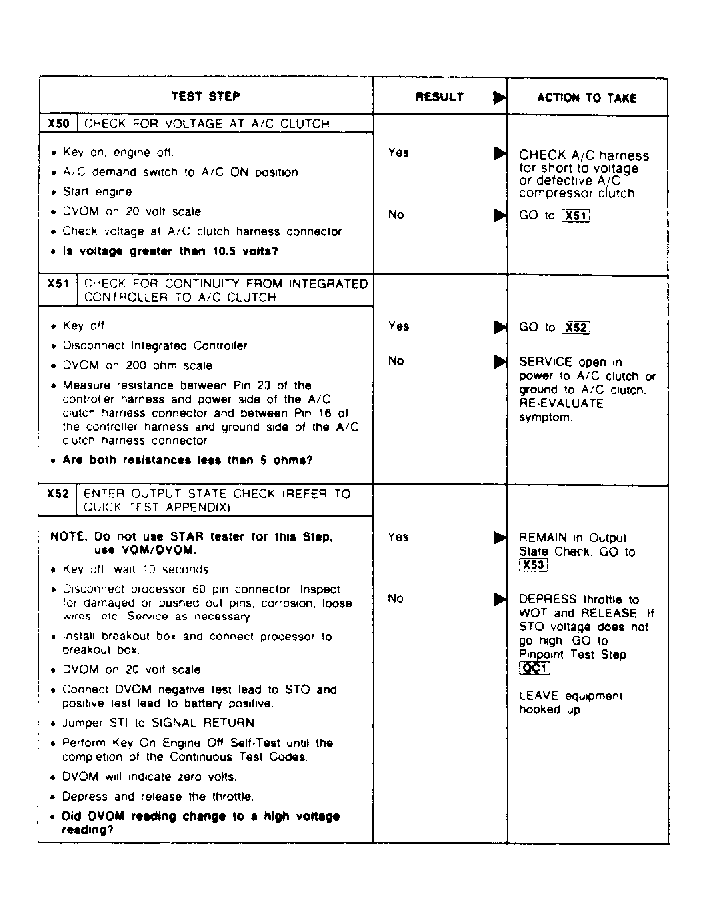

Fig 16: Test Chart X50, X51 & X52

G106642

Courtesy of FORD MOTOR CO.

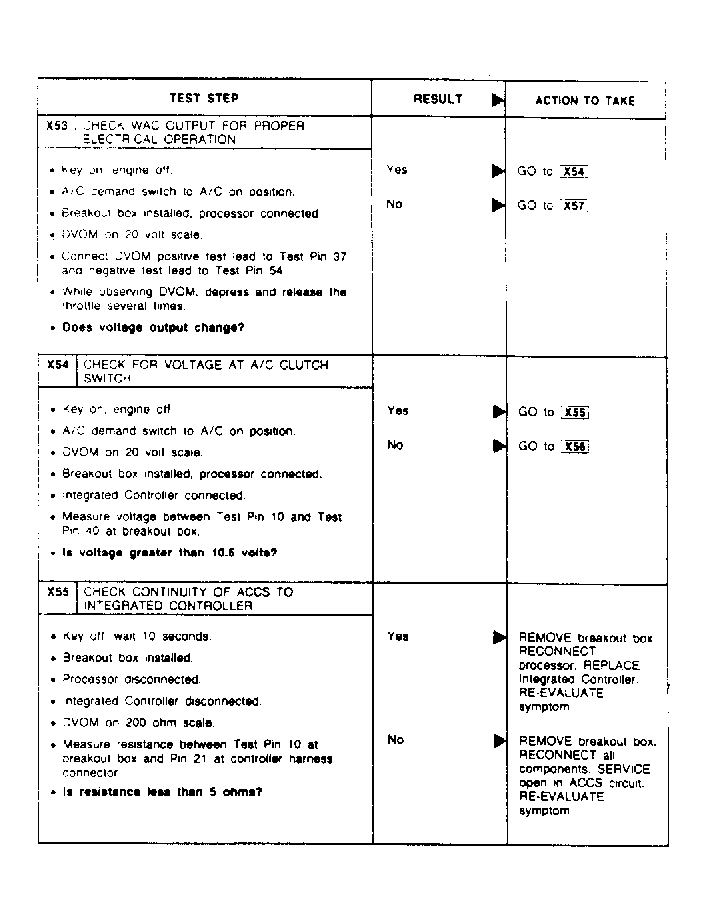

Fig 17: Test Chart X53, X54 & X55

G106641

Courtesy of FORD MOTOR CO.

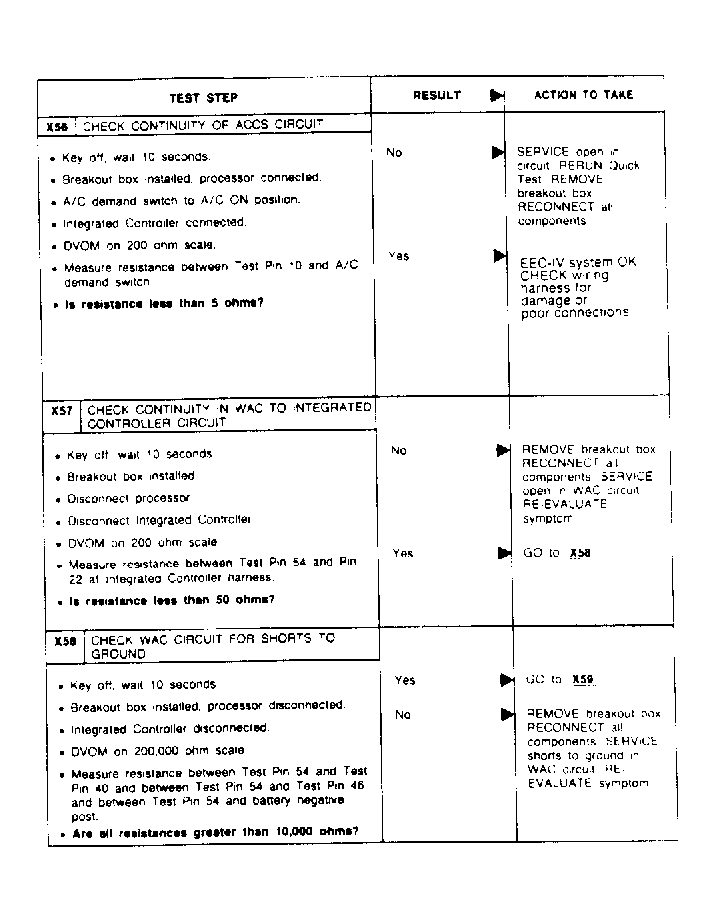

Fig 18: Test Chart X56, X57 & X58

G106643

Courtesy of FORD MOTOR CO.

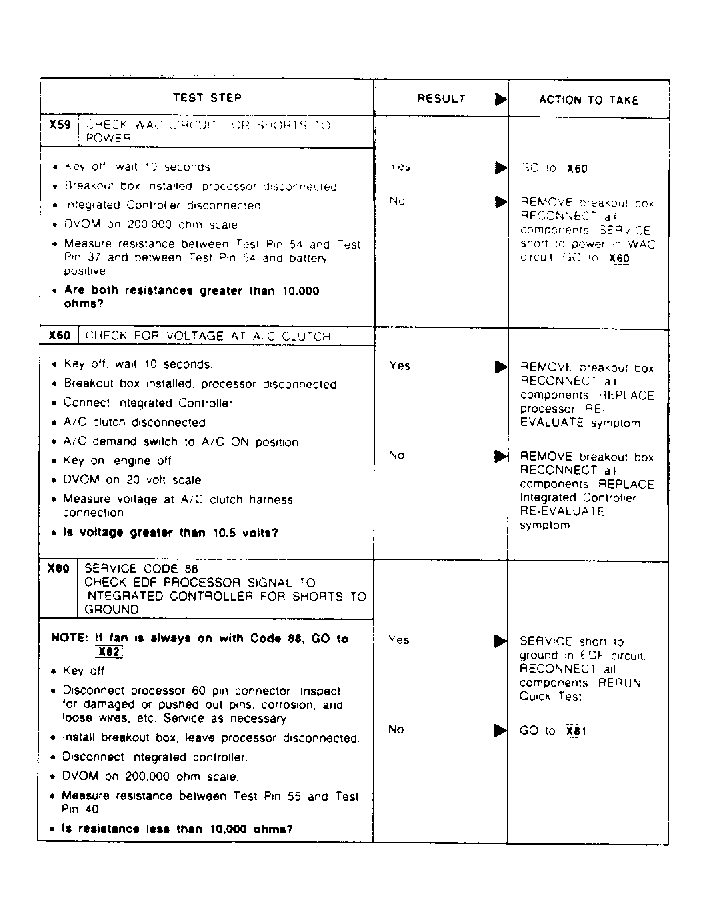

Fig 19: Test Chart X59, X60 & X80

G106644

Courtesy of FORD MOTOR CO.

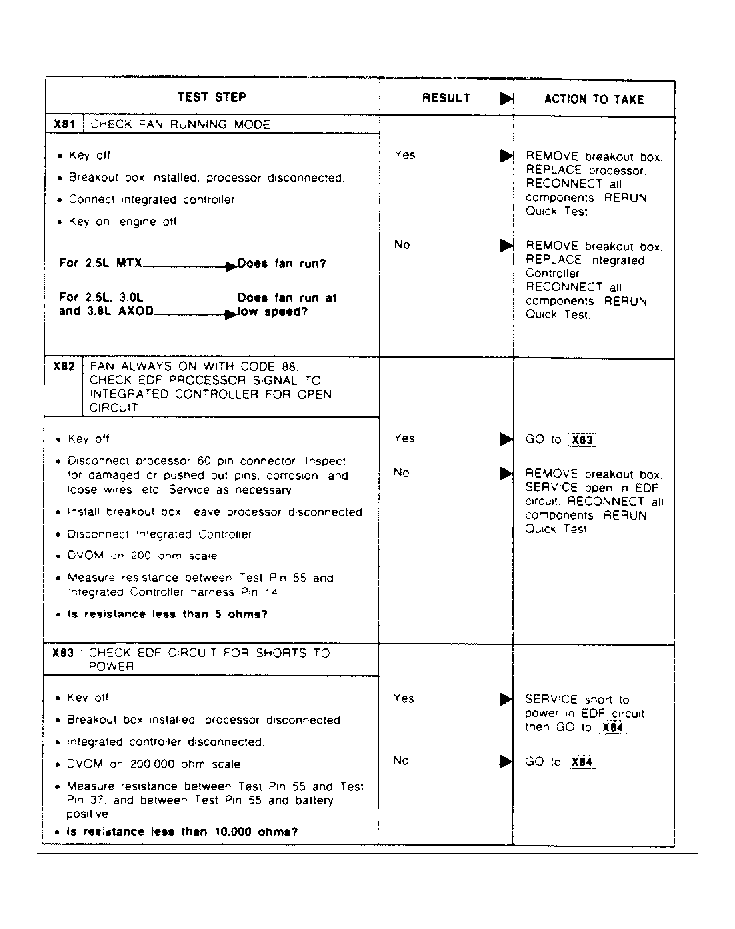

Fig 20: Test Chart X81, X82 & X83

G106646

Courtesy of FORD MOTOR CO.

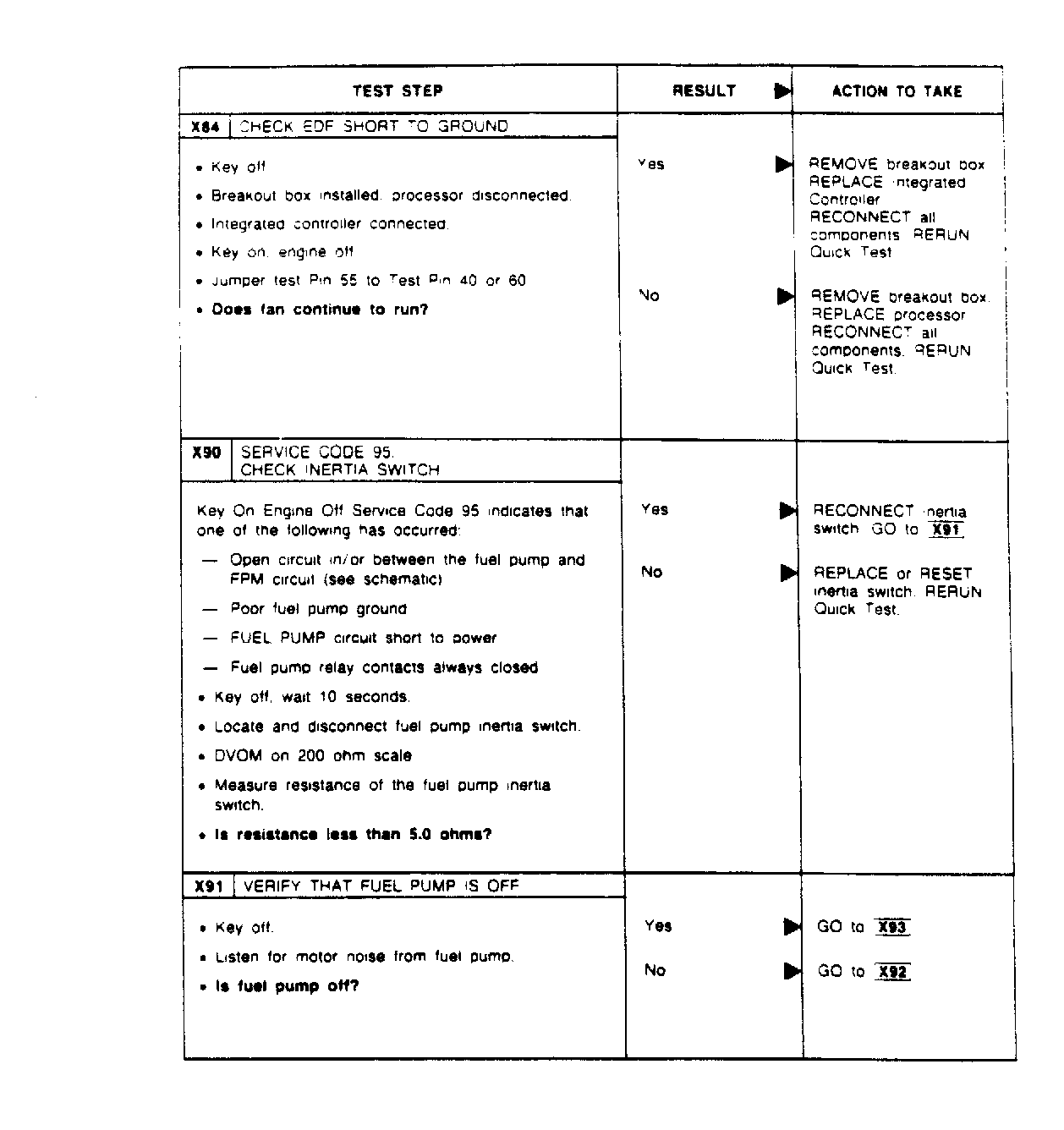

Fig 21: Test Chart X84, X90 & X91

G106645

Courtesy of FORD MOTOR CO.

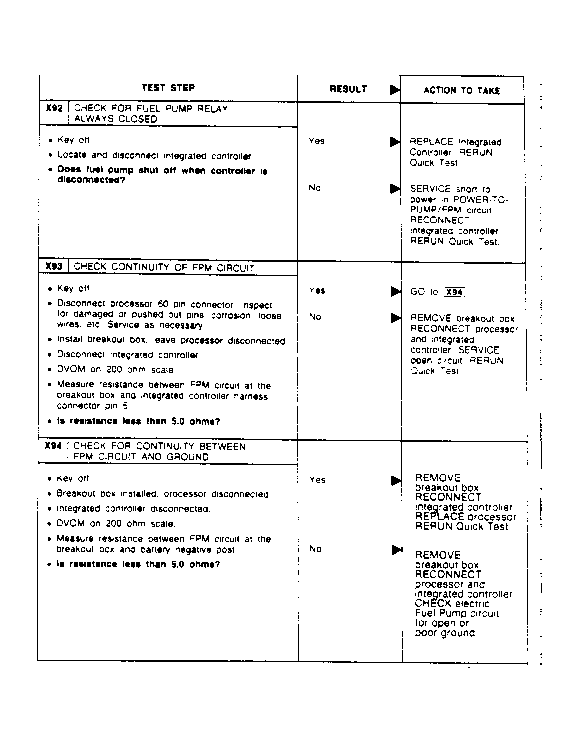

Fig 22: Test Chart X92, X93 & X94

G106647

Courtesy of FORD MOTOR CO.

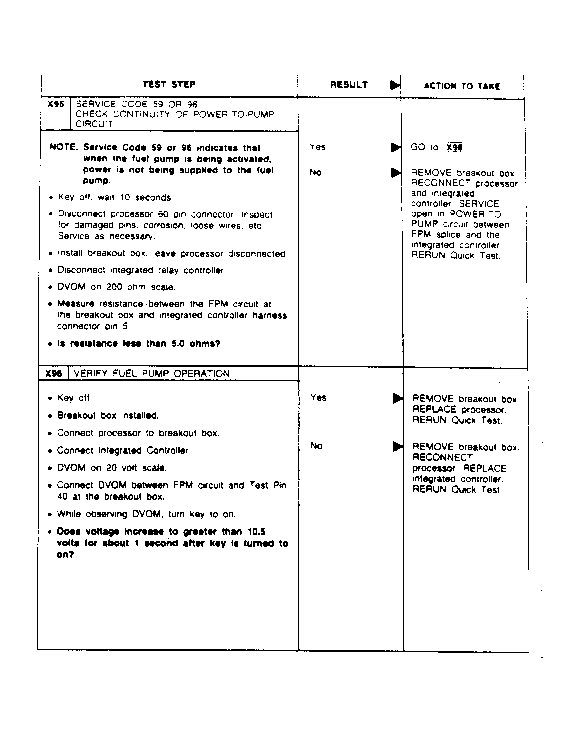

Fig 23: Test Chart X95 & X96

G106648

Courtesy of FORD MOTOR CO.

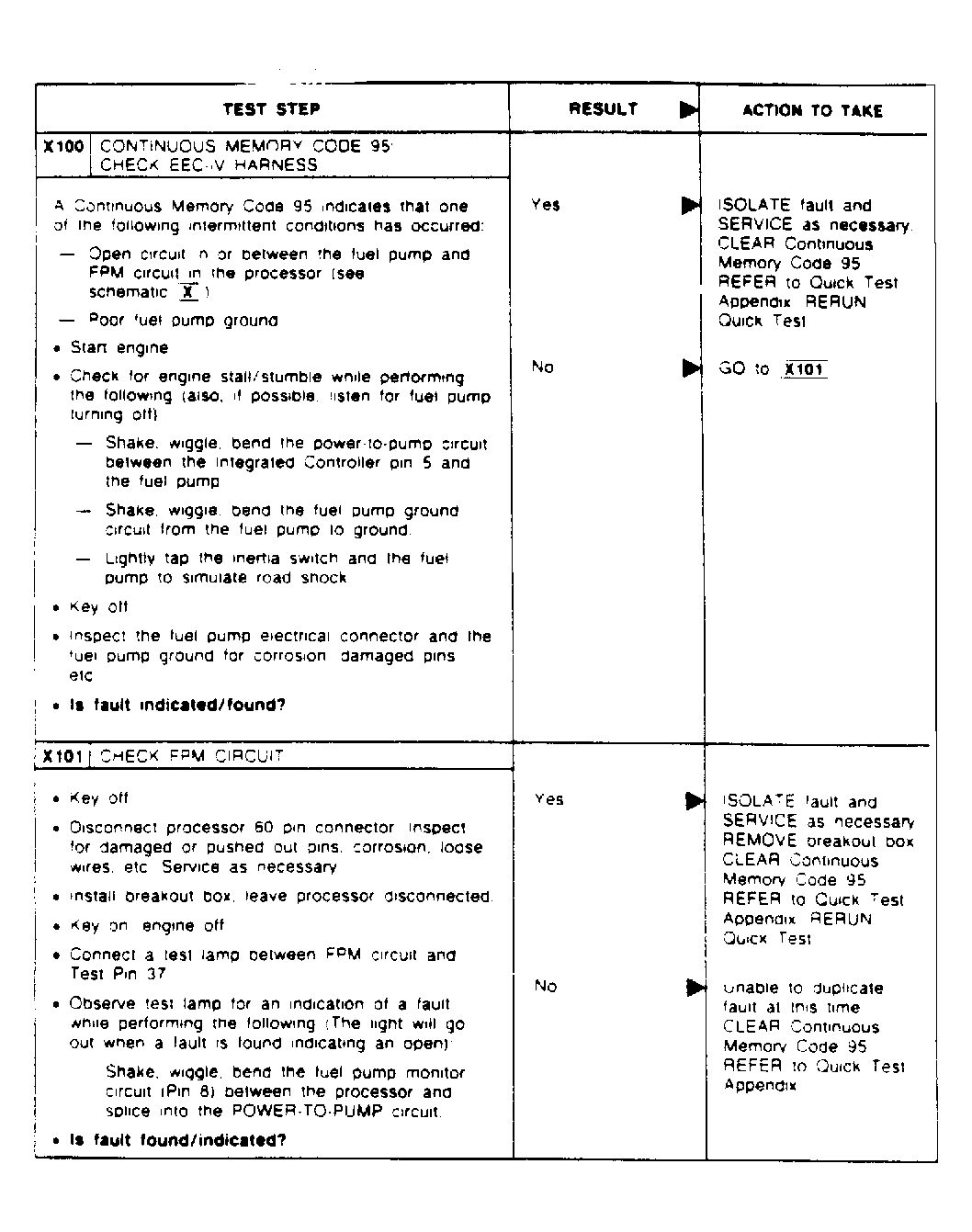

Fig 24: Test Chart X100 & X101

G106650

Courtesy of FORD MOTOR CO.

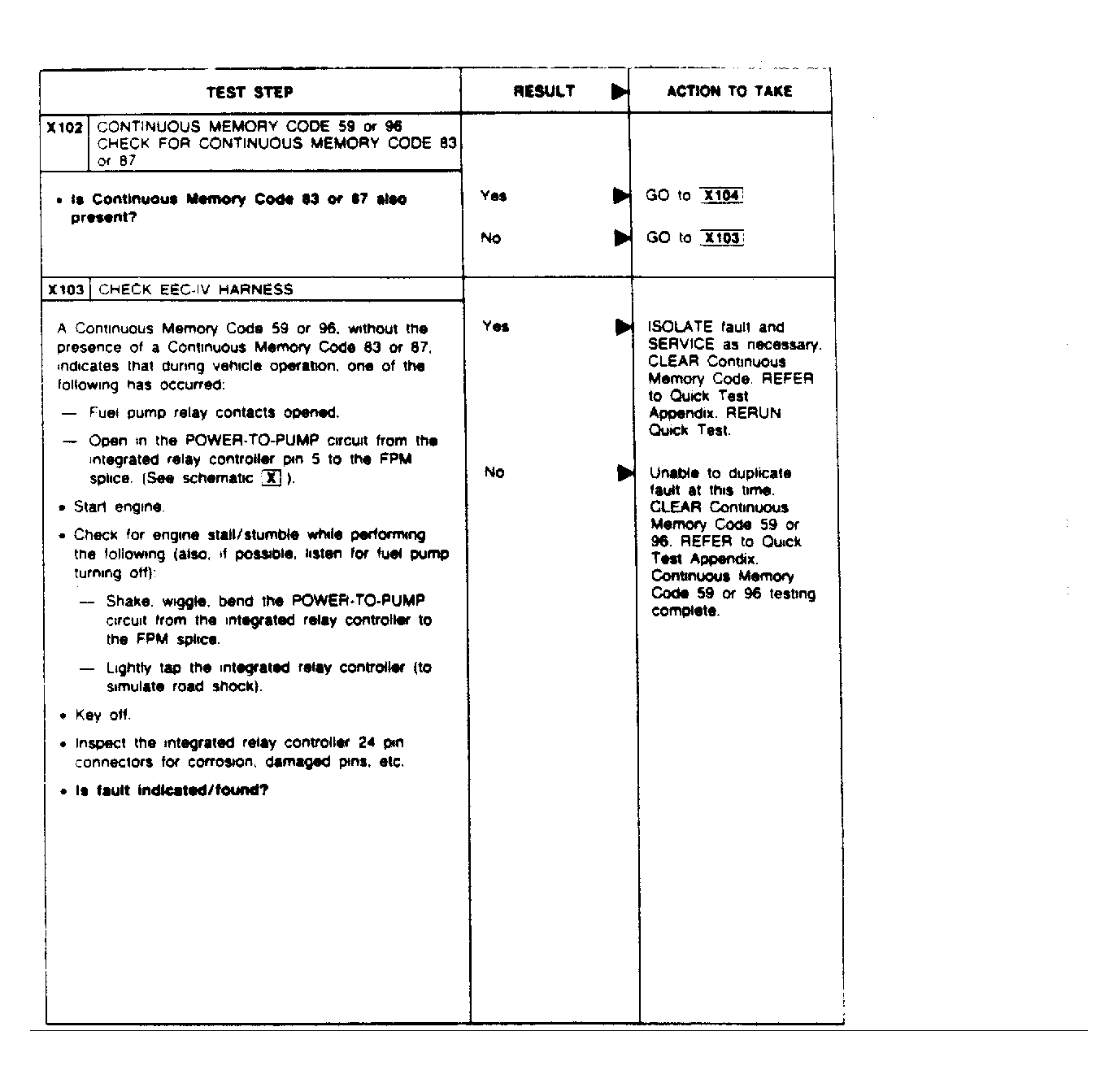

Fig 25: Test Chart X102 & X103

G106649

Courtesy of FORD MOTOR CO.

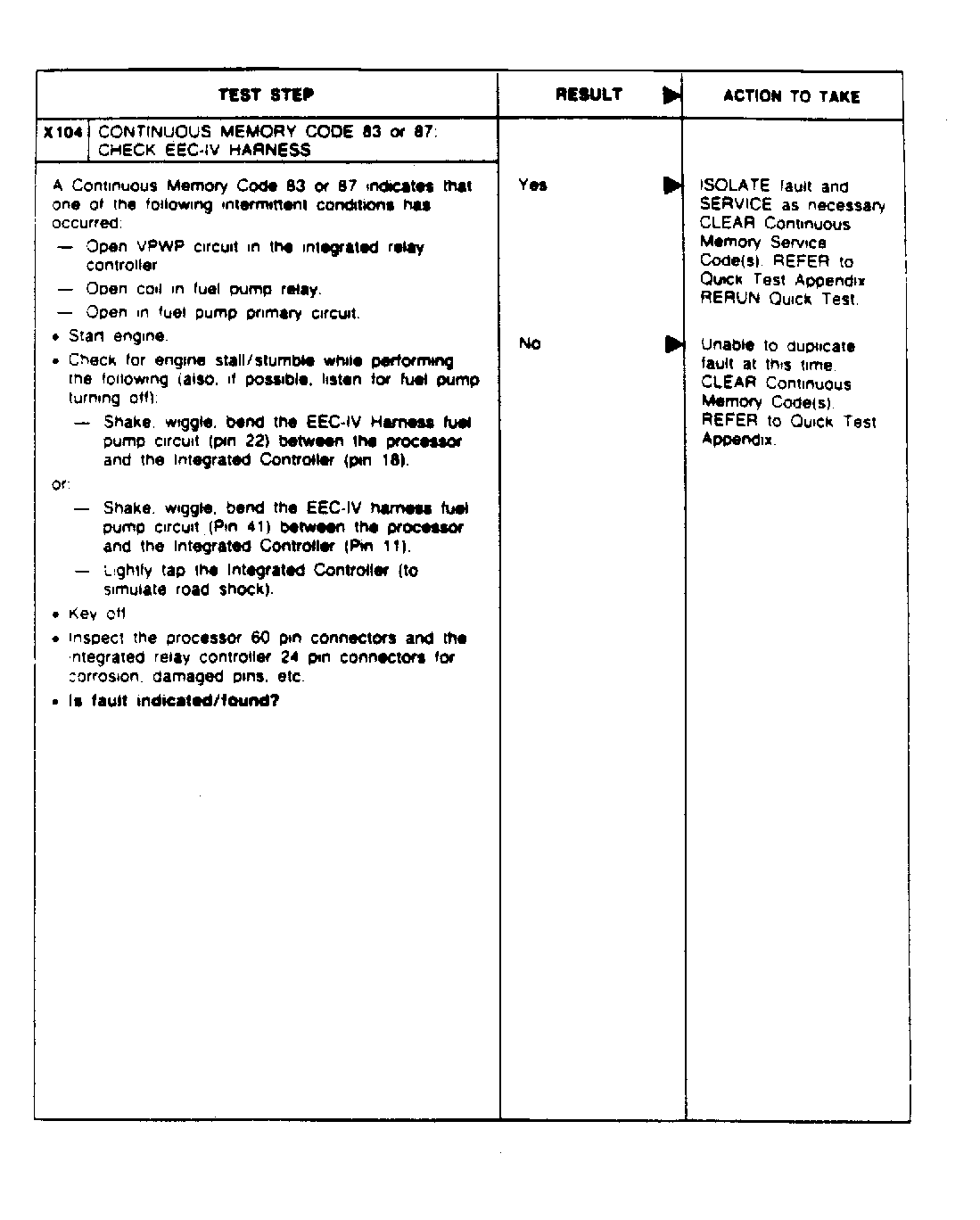

Fig 26: Test Chart X104

G106651

Courtesy of FORD MOTOR CO.
