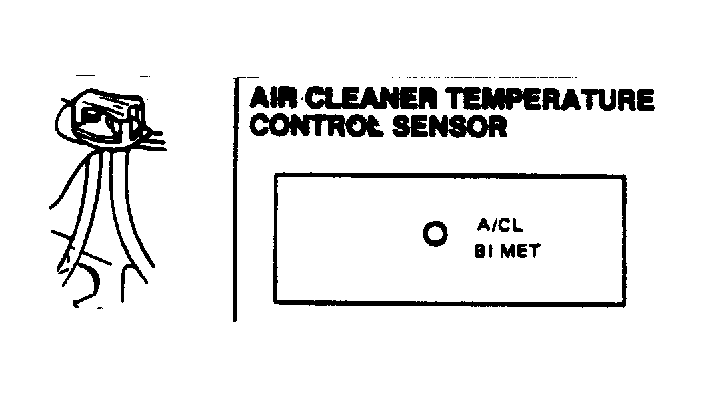

Air Cleaner Temperature Sensor
This bi-metallic sensor is installed in the lower air cleaner tray and is subject to temperature changes within the air cleaner. At a given temperature, the sensor bleeds off vacuum to the air cleaner air control door, permitting the vacuum motor to open the duct door and allow fresh air in while shutting off full heat.
