EGR Valve Position (EVP) Sensor

The EGR valve position sensor detects EGR valve position and sends a signal to the ECA. The signal from the EVP sensor affects EGR flow and ignition timing.

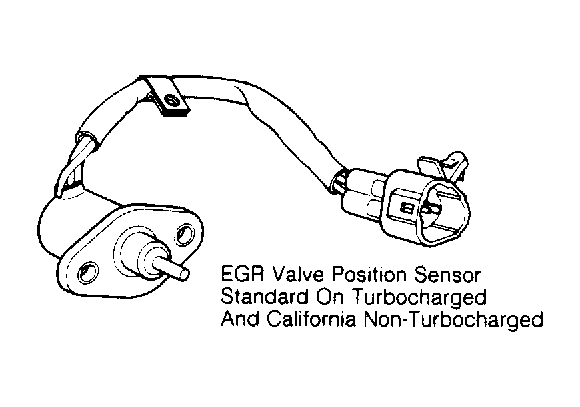

Fig 1: EGR Valve Position Sensor
G106253Courtesy of FORD MOTOR CO.
