Canister Purge Valve

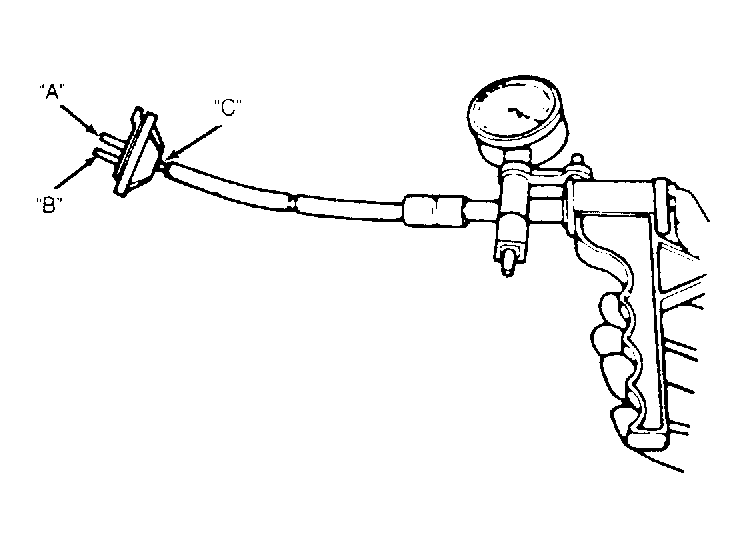

Remove valve from vehicle. Apply 2.6-4.2 in Hg. of vacuum to port "C". See Fig 1 . Ensure that vacuum holds at port "C" and that air will flow through ports "A" and "B". Replace canister purge valve if necessary.
Remove valve from vehicle. Apply 2.6-4.2 in Hg. of vacuum to port "C". See Fig 1 . Ensure that vacuum holds at port "C" and that air will flow through ports "A" and "B". Replace canister purge valve if necessary.
