KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB20 - KB22
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
KB20 - KB22

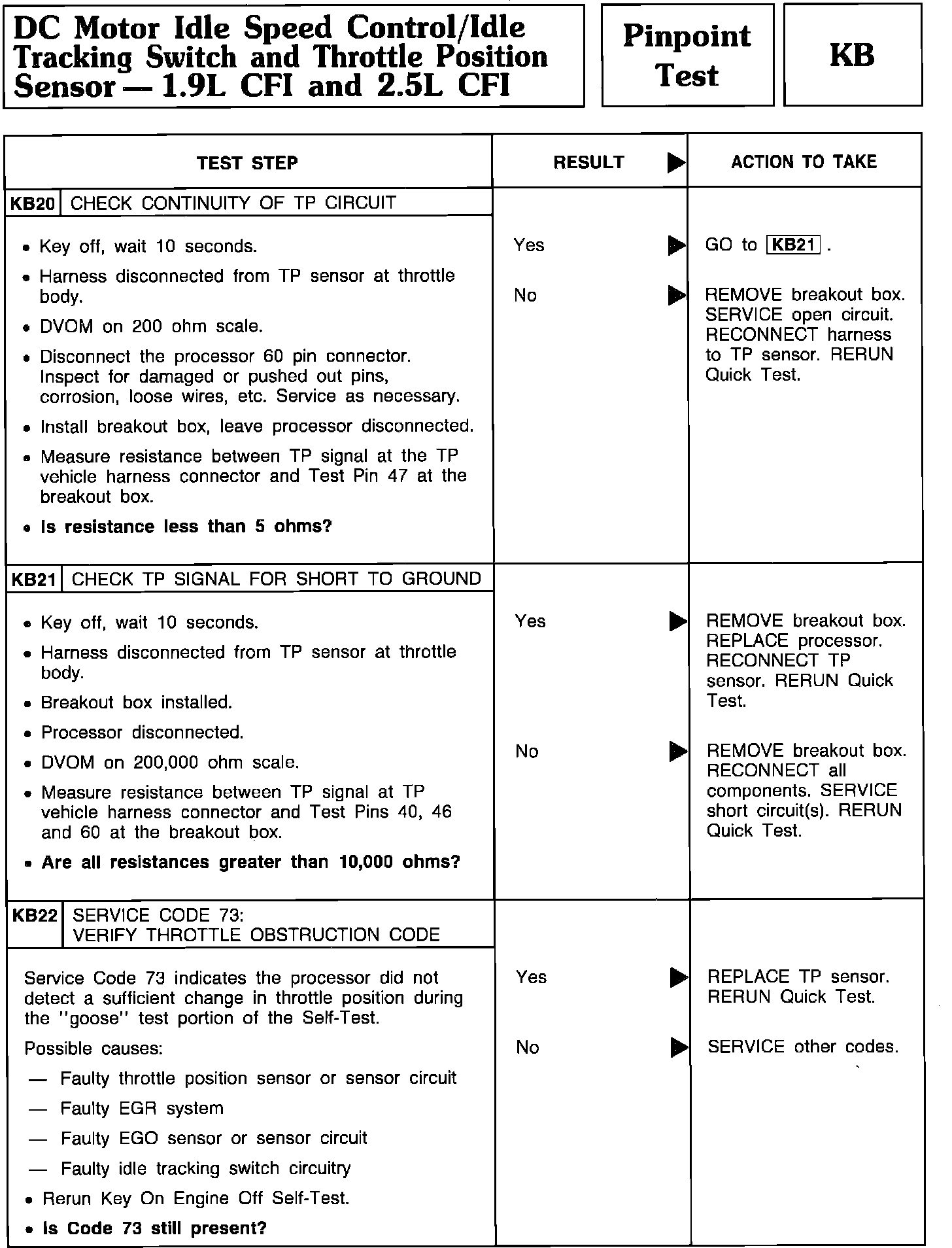

Pinpoint Test KB20 Thru KB22 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
