Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ATC Blower Speed Controller | In evaporator case. | |
| ATC Control Unit | In center of dash. | |
| Diagnostic Warning Module | ||
| Sable | Behind center of dash, left of glove box. | |
| Taurus | Behind right side of dash, above glove box. | |

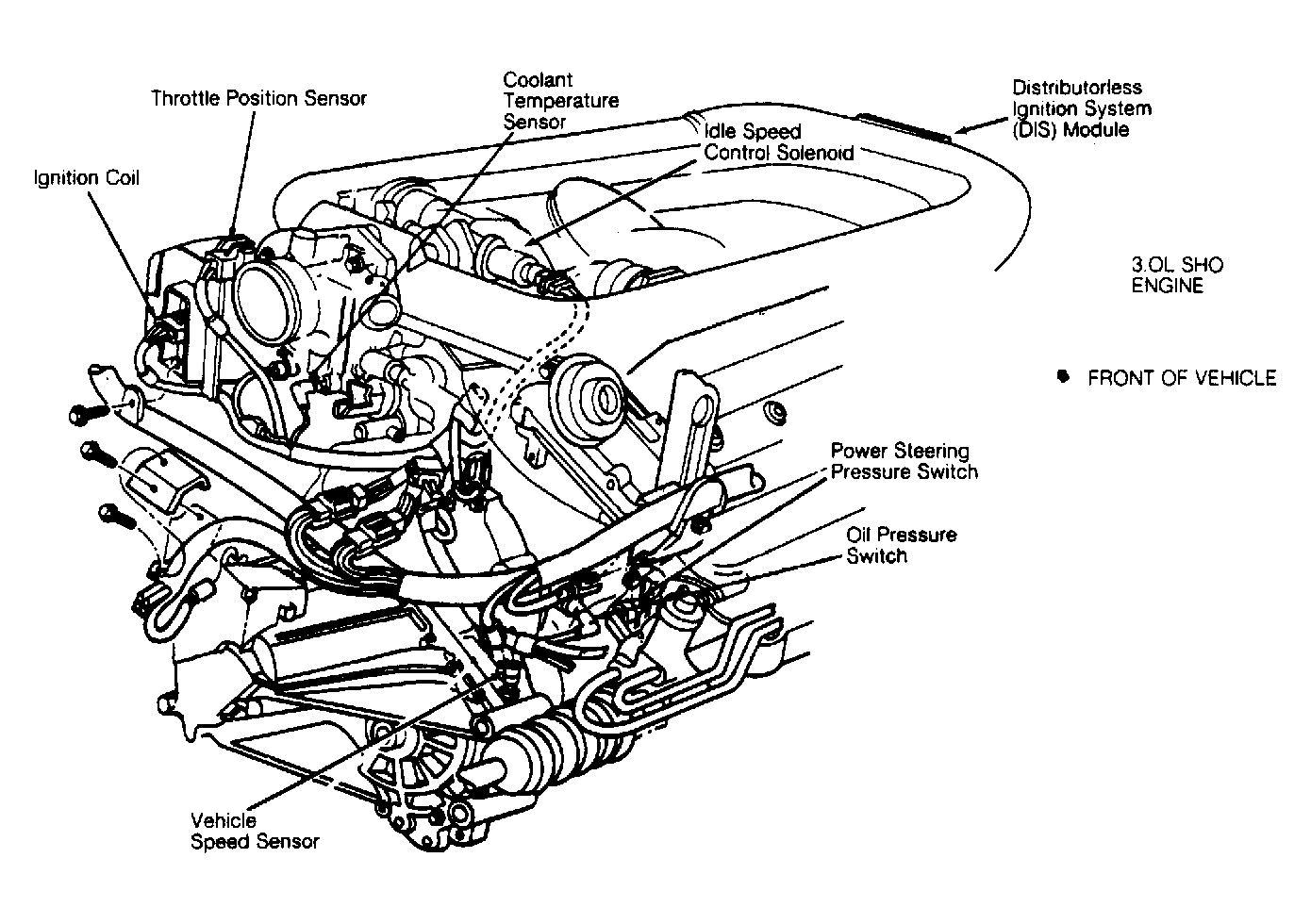

| Distributorless Ignition System (DIS) Module (SHO) | On upper intake manifold. See Figure . | |
| Electronic Control Assembly (ECA) | On right firewall. See Figure . | |
| Heated Windshield Control Module | Under left side of dash, on steering column support bracket. | |
| Illuminated Entry Module | ||
| Sedan | On package tray, behind rear seat. | |
| Station Wagon | Behind left rear quarter panel. | |
| Integrated Controller Module | On bottom of upper radiator support. | |
| Keyless Entry Module | ||
| Sedan | On package tray in luggage compartment. | |
| Station Wagon | Inside left rear quarter panel, behind door. | |
| Light-Out Diagnostic Warning Module | ||
| Sable | Behind left side of dash, on steering column. | |
| Taurus | Behind right side of dash, above glove box. | |
| TFI Ignition Module (2.5L & 3.0L) | On side of distributor. See Figure . | |
| TFI Ignition Module (3.8L) | On left side of engine bay. | |
| Voice Alert Module | Under left side of instrument panel. | |
| Warning Chime Module | On right side of steering column. | |
