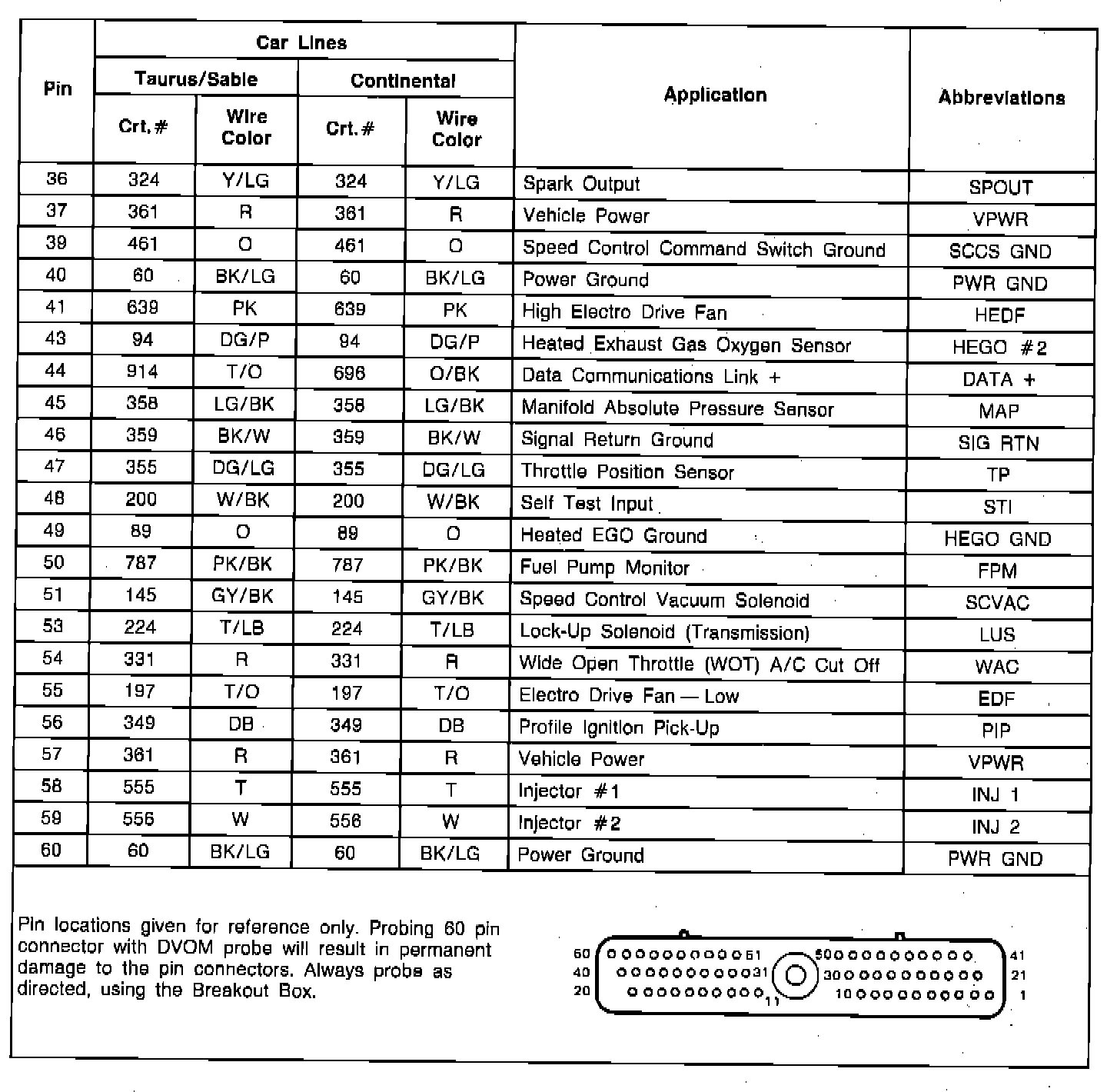

Home >> Ford >> 1989 >> Taurus V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Part 2 of 2

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Part 2 of 2
