Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistors | Under right of dash, on evaporator/heater housing. |
| Blower Motor Resistor | In heater housing, near blower motor. |
| Cooling Fan Test Connectors | In front of left front strut tower. See Figure . |
| EGR Vacuum Regulator Valve | On left side of cowl. See Figure . |
| Horn Diode | Inside right front fender, between horns. |
| Ignition Coil | On left rear of engine. |
| Passive Restraint Diode | On right side of dash, behind left of glove box. |

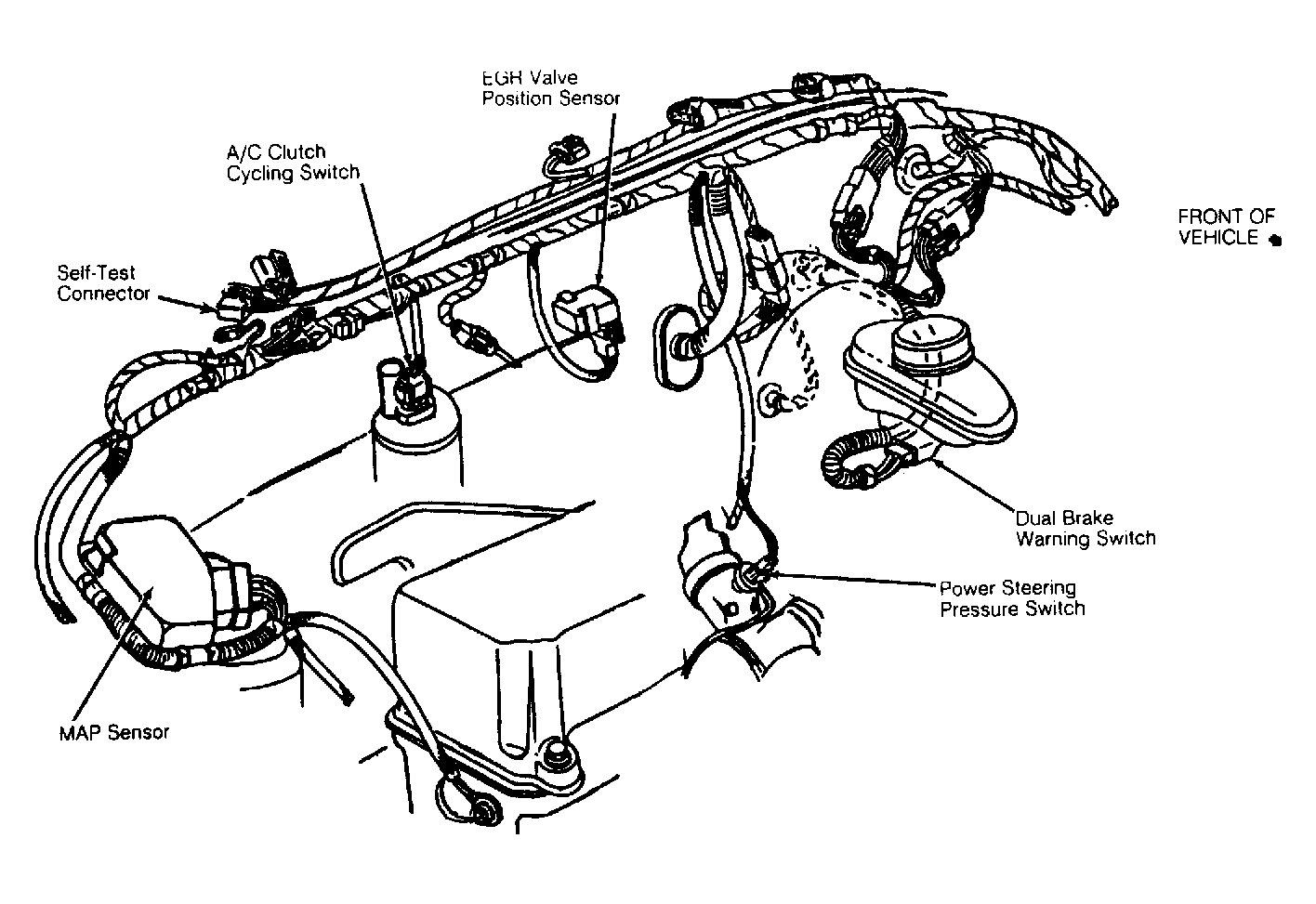

| Self-Test Connector | Right of firewall, below wiper motor. See Figure . |
| Shorting Plug | On left of engine, taped to harness. |

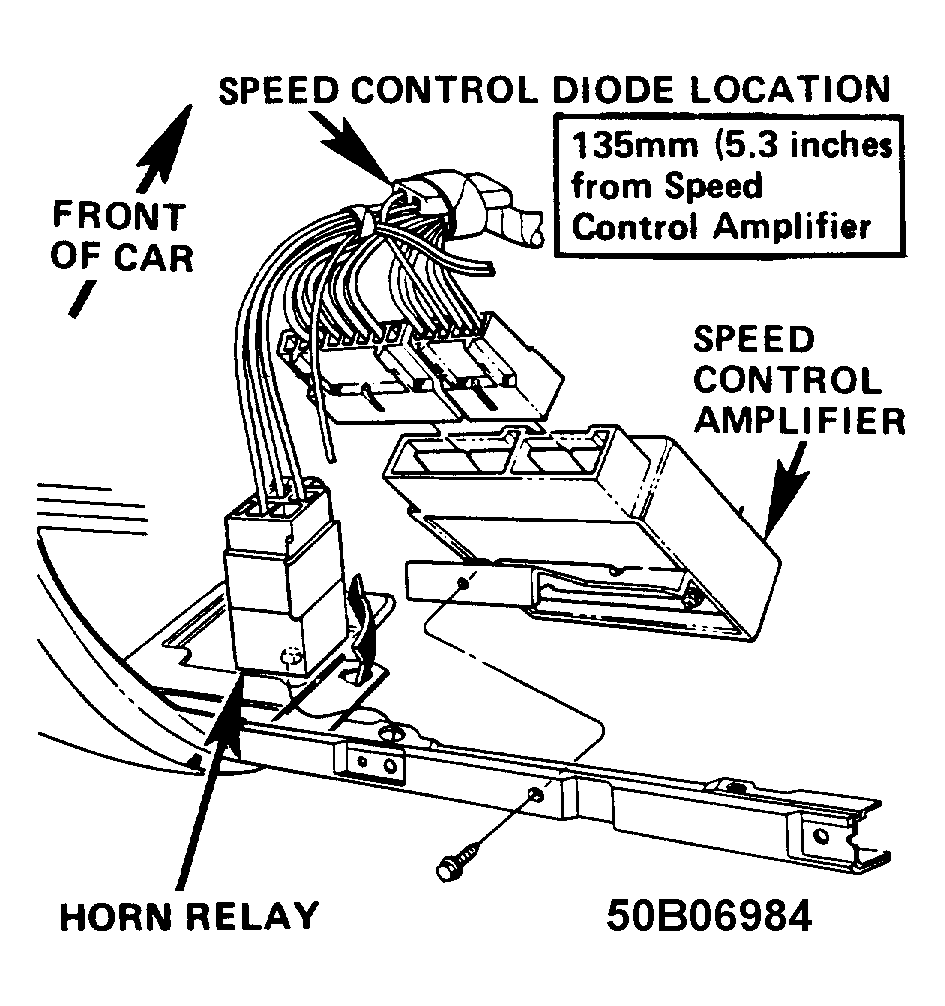

| Speed Control Amplifier | On left side of dash, above fuse block. See Figure . |
| Speed Control Servo | On left front strut tower. |
| Start/Ignition Diode | In harness, in front of left front strut tower. |
| Voltage Regulator | On back of alternator. |
| Windshield Wiper Interval Governor | Attached to center dash support brace. |
