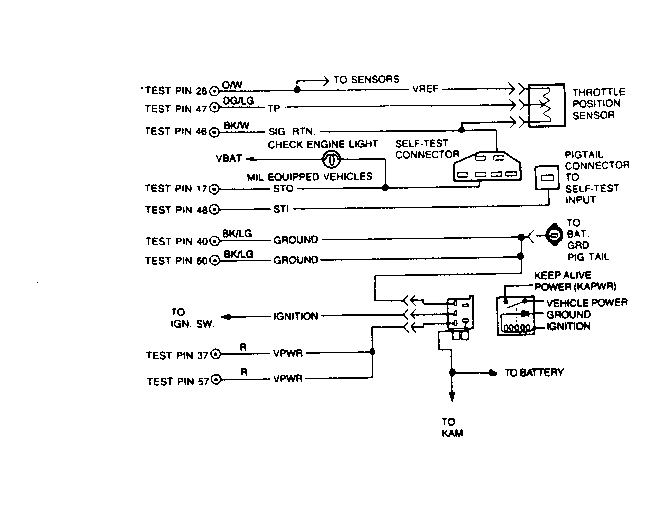

D16 - Output State Check Not Functioning
NOTE:
Perform this CIRCUIT TEST when directed by other test procedures.
- Checking Service Codes. Turn key off and wait 10 seconds. Perform KOEO SELF-TEST. If Codes 23, 53, 63 or 68 are displayed, go to KOEO SELF-TEST table and service code(s) as instructed. If no codes are displayed, go to D14 - NO CODES/CODES NOT LISTED , step 1). If Code 11 (Pass) is displayed, go to next step.
- Checking Throttle Linkage. Check throttle and linkage for sticking or binding. If throttle and linkage are okay, replace TPS and repeat QUICK TEST. If throttle and linkage are binding, repair as necessary and repeat QUICK TEST.
