KOEO Code/Test Menu

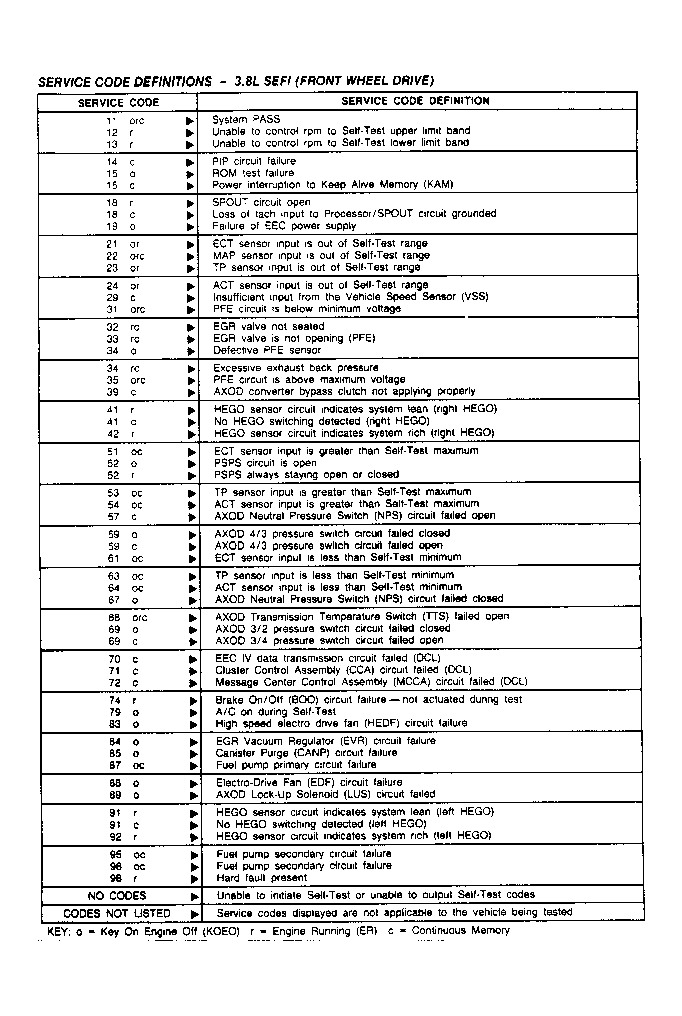

Fig 1: Service Code Definitions - 3.8L SEFI (FWD)

G112612

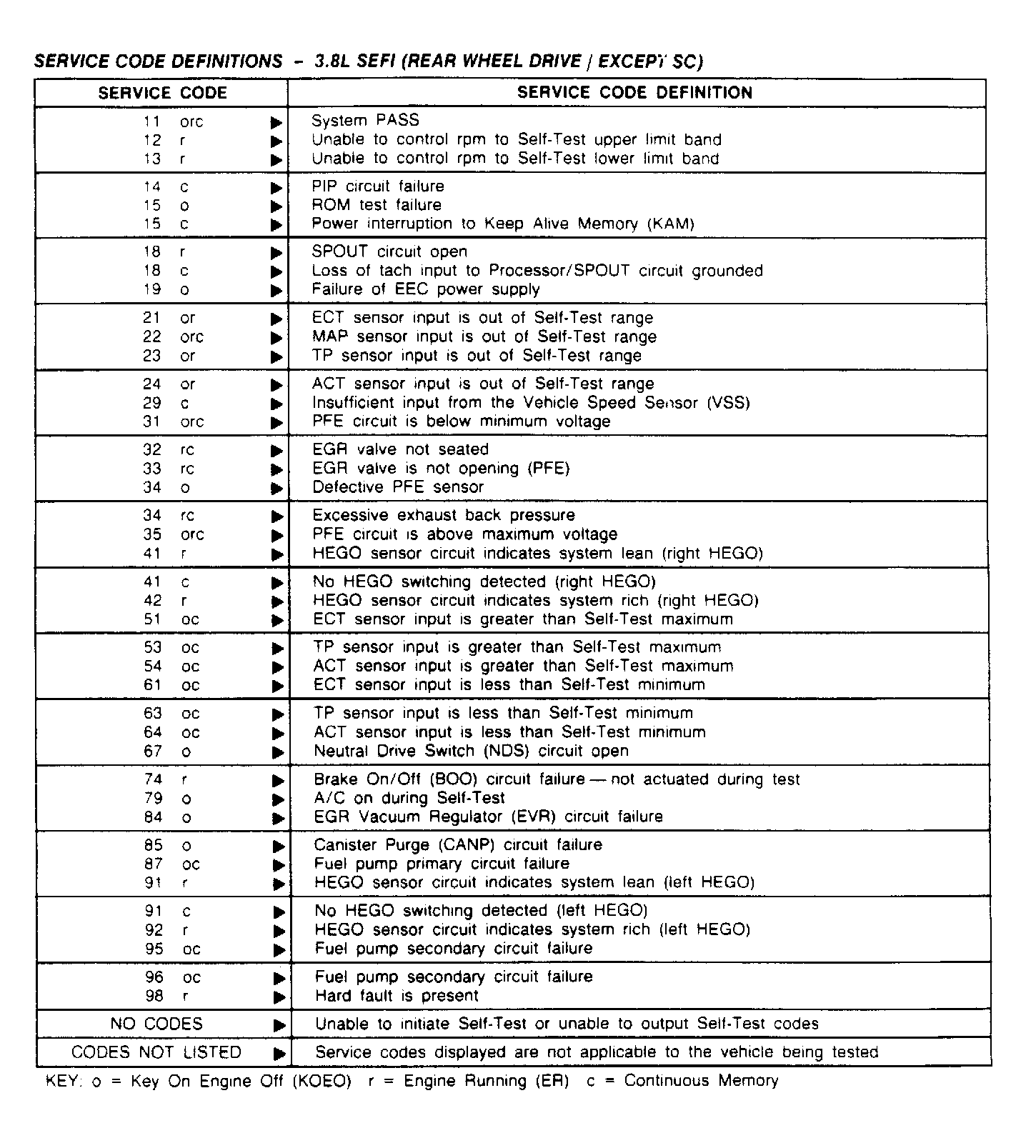

Fig 2: Service Code Definitions - 3.8L SEFI (RWD Except SC)

G112613

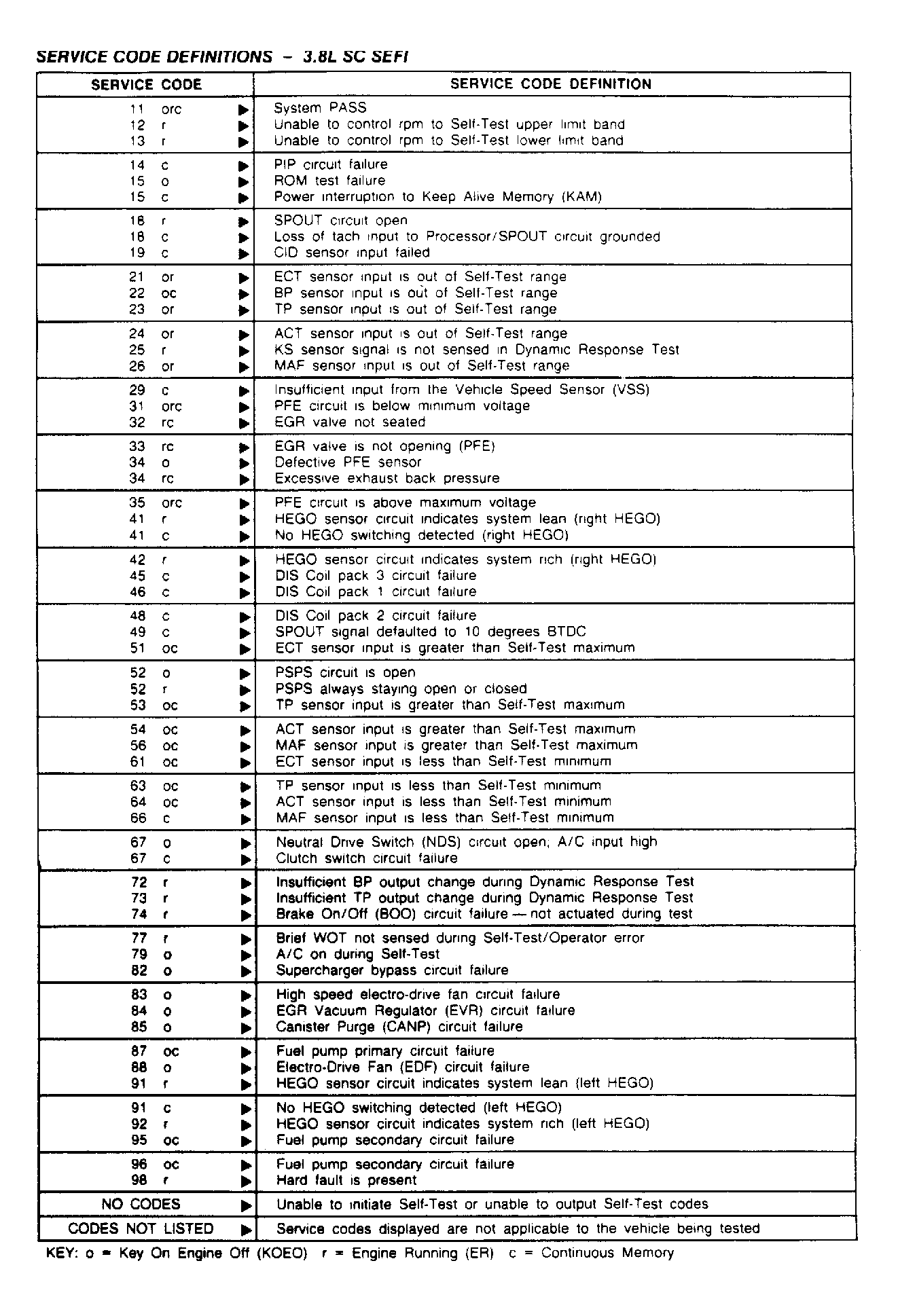

Fig 3: Service Code Definitions - 3.8L SC SEFI

G112614

KOEO SELF-TEST - CIRCUIT TEST & STEP MENU (3.8L)

Code No.	Go To: Circuit Test No. (Step No.)
15	D15 (3)
19	D17 (1)
21	B5 (1)
22	B6 (1)
23	B8 (1)
24	B2 (1)
26 (SC/SEFI)	B3 (2)
31	B10 (1)
34	B10 (8)
35	B10 (5)
51	B5 (5)
52 (SEFI)(FWD)	B15 (1)
53	B8 (3)
54	B2 (10)
56 (SC/SEFI)	B3 (10)
59 (SEFI)(FWD)	D21 (24)
61	B5 (7)
63	B8 (6)
64	B2 (7)
66 (SC/SEFI)	B3 (4)
67 (SEFI)(FWD)	D21 (29)
67 (SEFI)(RWD) & (SC/SEFI)	B13 (1)
68 (SEFI)(RWD)	D21 (31)
79	B13 (9)
83 (SEFI)(FWD) & (SC/SEFI)	D23 (26)
84	B10 (11)
85	D4 (6)
87 (SEFI)(FWD)	D23 (14)
87 (SEFI)(RWD) & (SC/SEFI)	C2 (7)
88 (SEFI)(FWD) & (SC/SEFI)	D23 (53)
89 (SEFI)(FWD)	D21 (18)
95 (SEFI)(FWD)	D23 (58)
95 (SEFI)(RWD) & (SC/SEFI)	C2 (12)
96 (SEFI)(FWD)	D23 (63)
96 (SEFI)(RWD) & (SC/SEFI)	C2 (18)
