4.0L Spark Plug Wire Routing

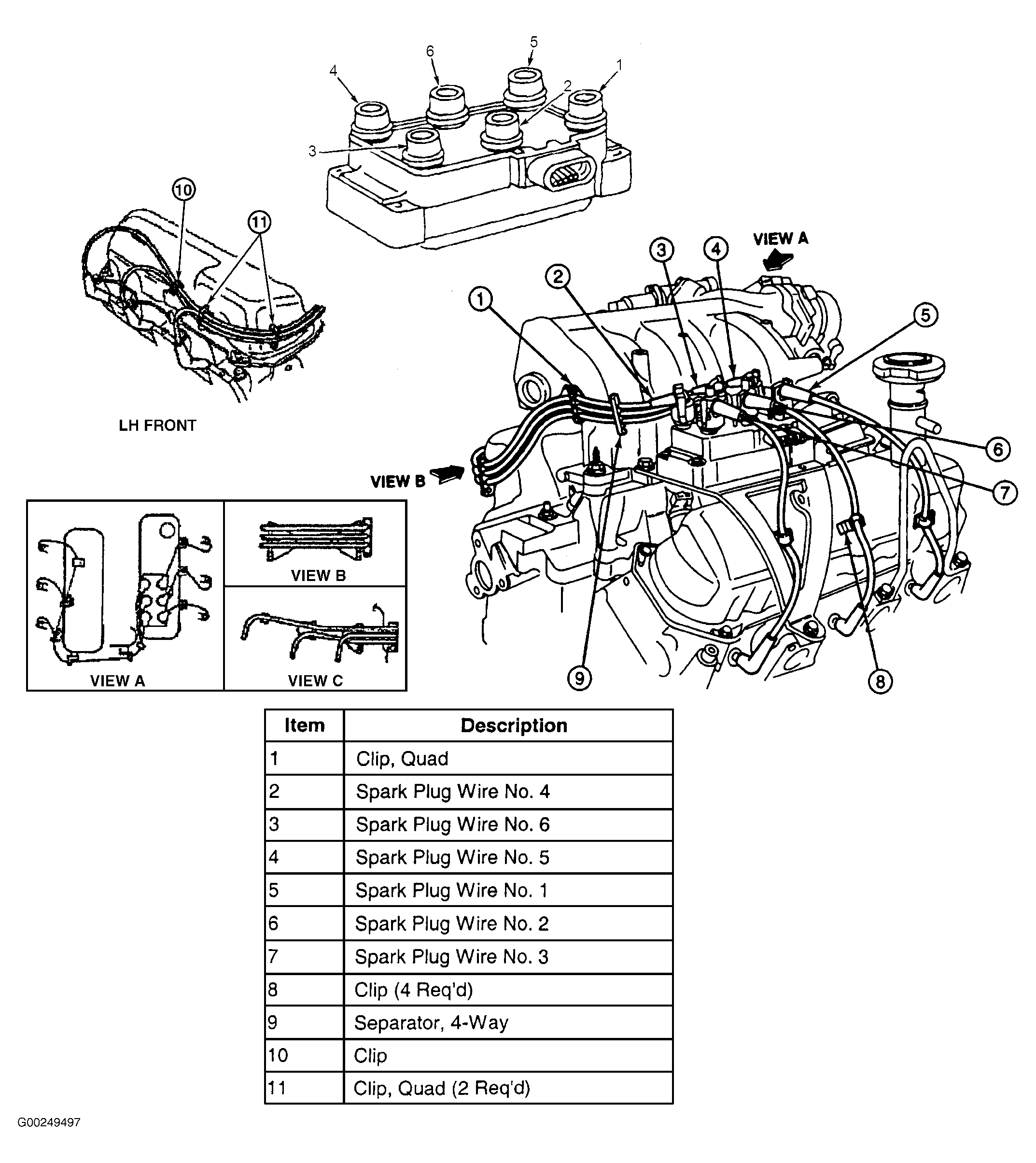

Fig 1: 4.0L Spark Plug Wire Routing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
